Kabel ShiverPeaks 02014-10 — 2 aders 0,14 mm², lengte 10,0 m

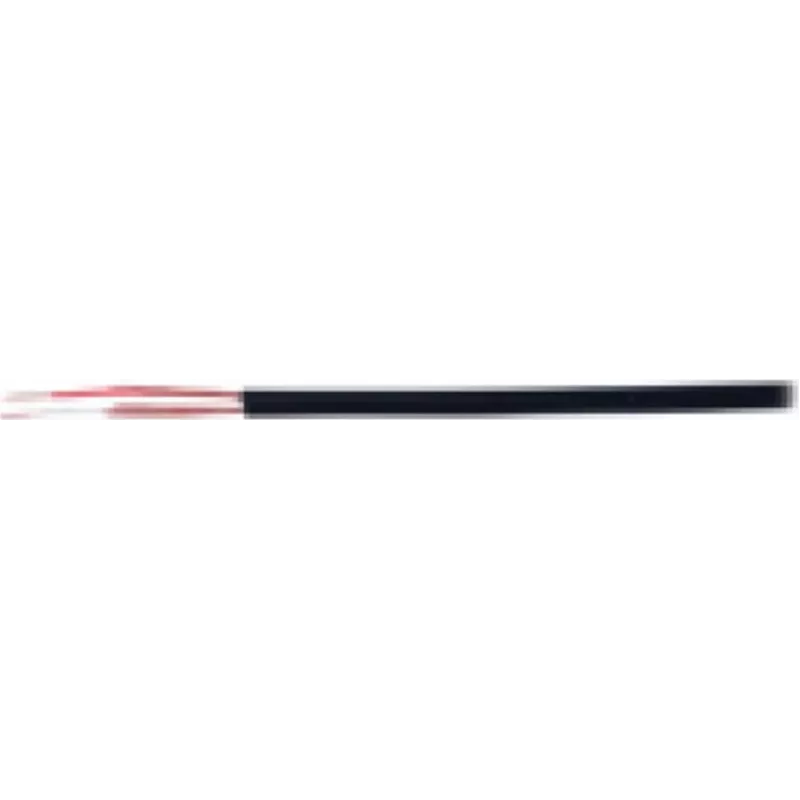

ShiverPeaks 02014-10 is a two-conductor cable with a conductor cross-section of 0.14 mm² and a total length of 10.0 m. It is intended for low-voltage signal transmission and LED diode connections, offering a flexible, compact wiring option for small electrical projects, LED strips, controllers and sensor links. The cable's dimensions and flexibility make it suitable for indoor installations and prototyping where space-saving conductors are required.

Advantages

The cable combines a small conductor cross-section with adequate current-carrying capability for low-voltage applications, enabling neat routing in confined spaces and simple connections to LED modules and controllers. Its two-conductor design simplifies polarity-aware wiring and reduces the need for additional conductors when pairing power and signal lines. The 10.0 m length provides sufficient reach for typical indoor lighting runs and prototype setups without frequent joins.

Suitable for

• Connecting low-voltage LED strips and individual diodes
• Wiring small controllers and sensor modules
• Prototyping and breadboard jumper leads for compact circuits
• Indoor lighting projects where flexible routing is required

Key specifications

• Conductors: 2 cores
• Conductor cross-section: 0.14 mm²
• Total length: 10.0 m
• Application: low-voltage signal and LED connections
• Installation environment: indoor use and prototyping

How to use

Strip the insulation at the ends to expose the conductors and connect them to LED modules, controller terminals or sensor inputs observing correct polarity where required. For reliable connections use suitable crimps, terminal blocks or solder joints with heat shrink tubing to secure and insulate the connection. Route the cable avoiding sharp edges and excessive bending radii to preserve conductor integrity. If multiple runs are required, plan cable routing to minimize interference and simplify future maintenance.

Recommendations

Use this cable for low-voltage DC circuits and LED lighting; do not use it for mains voltage or high-current applications. For longer runs or higher currents choose cables with larger conductor cross-section. When installing in permanent fixtures, secure the cable with appropriate clips and keep it away from heat sources and moisture.
