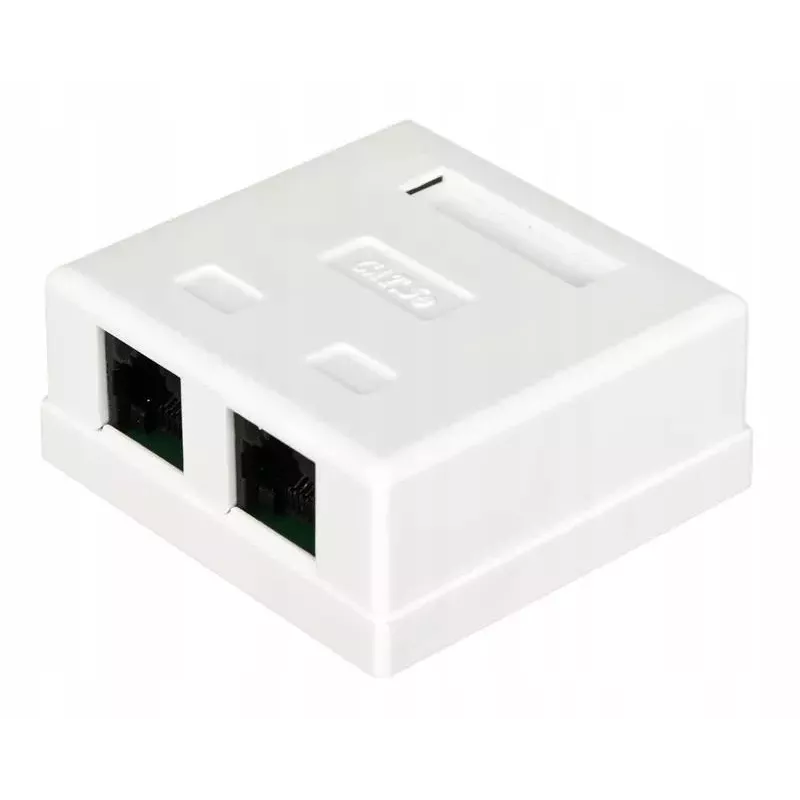

Kabelconnector Alantec GN002 2×RJ45 bus–bus wit recht kunststof

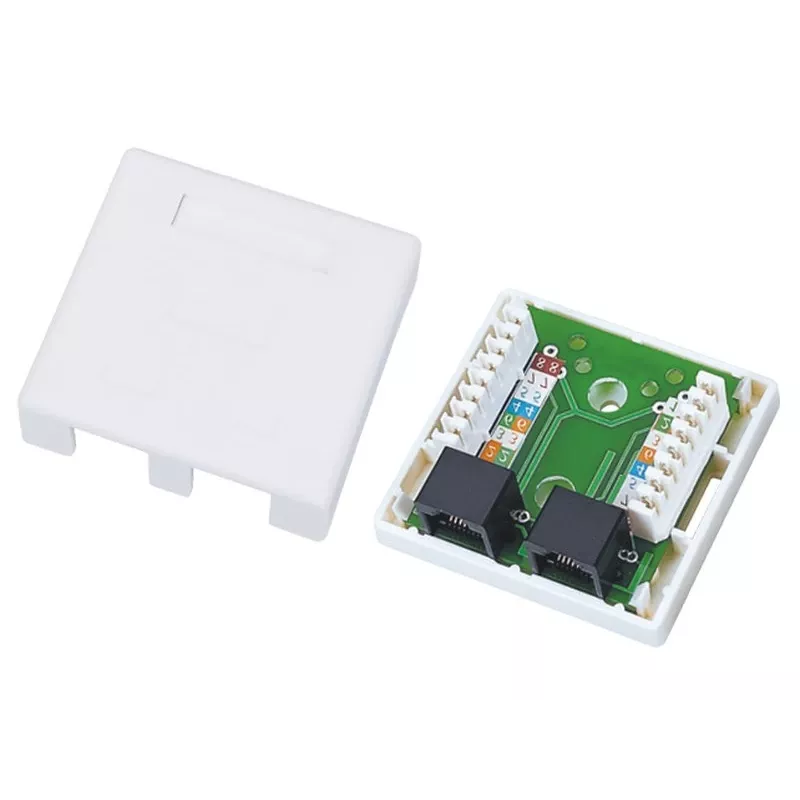

The Alantec GN002 wire connector is an unshielded complete surface jack with two RJ45 female ports, supporting UTP Cat5e cabling. It includes clear cable-pair labelling for both T568A and T568B wiring sequences and dual IDC 110/LSA terminations for reliable connections. The unit is finished in white and is suitable for desk or wall mounting.

Advantages

The GN002 offers a compact, durable housing and straightforward identification of cable pairs to reduce installation errors. Dual IDC 110/LSA termination points allow fast, secure terminations without additional tools, and the unshielded Cat5e design supports standard Ethernet networks while keeping costs and complexity low.

Suitable for

• Office patching and desktop network connections
• Wall-mounted network outlets in residential or small business environments
• Cat5e UTP installations requiring two RJ45 ports

Key specifications

• Connector(s): 2xRJ45 female
• Category: Cat5e (UTP)
• Termination: Dual IDC 110/LSA
• Wiring: Supports T568A and T568B
• Colour: White
• MPN: GN002
• EAN: 5901738551121

How to use

Mount the GN002 onto a wall plate or desk surface using the provided fixing points. Strip the outer jacket of the UTP cable, align the individual conductors to the printed T568A or T568B sequence on the jack, and press each conductor into the corresponding IDC slot until it is fully seated. Verify the termination and then connect patch cables to the two RJ45 female ports.

Recommendations

For optimal performance, use Category 5e or better UTP cables and follow the chosen wiring standard (T568A or T568B) consistently throughout the installation. Test each link with a cable tester after termination to confirm continuity and correct pair assignment.
