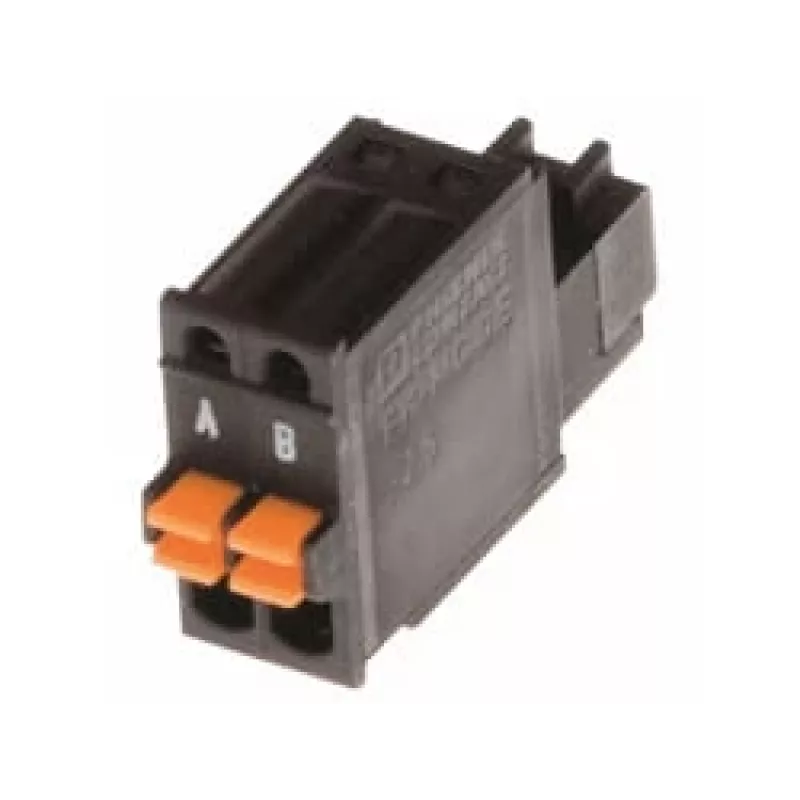

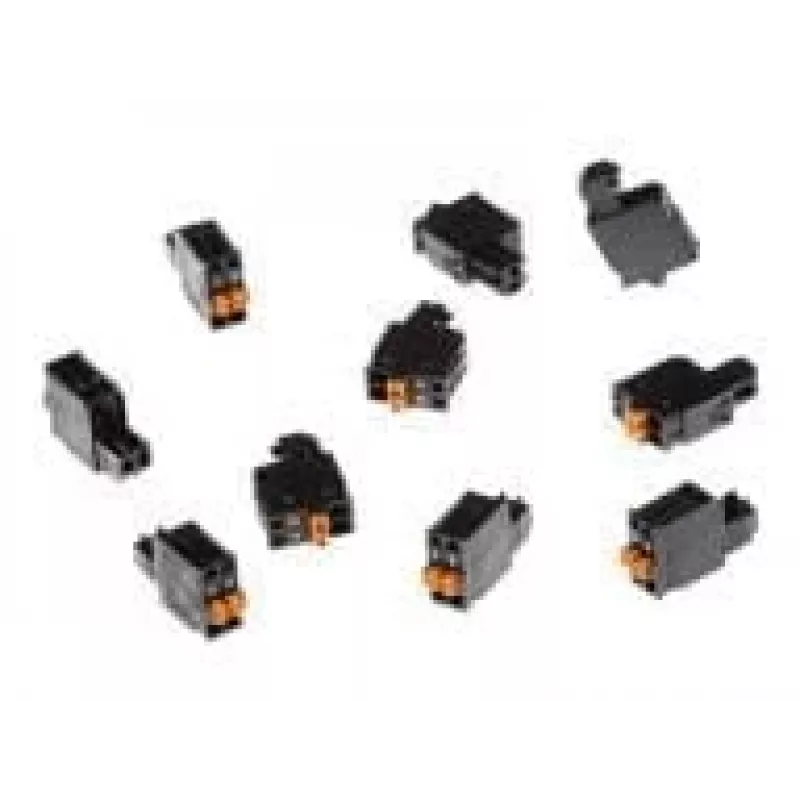

Kabelconnector AXIS 5505-261, 2-polig 2,5 mm rastermaat, grijs, 10-pack

AXIS 5505-261 is a compact 2-pin wire connector with a 2.5 mm pitch in grey, supplied as a pack of 10. It is intended for electrical and electronic wiring tasks where a small, reliable connector is required for signal or low-voltage power lines. The connector fits applications such as PCB wiring, terminal block replacements, prototyping and panel installations that call for a two-pin 2.5 mm pitch interface.

Advantages

The connector offers a small footprint and consistent pin spacing that helps maintain reliable contact in tight spaces. Its two-pin configuration and standardized 2.5 mm pitch make it compatible with common headers and mating connectors, easing installation and replacement. Supplied as a pack of 10, it supports small-scale production runs and repairs without requiring single-piece purchases.

Suitable for

When it may not be suitable

This 2-pin 2.5 mm pitch connector is not intended for mains voltage or high-current power distribution; it is designed for signal and low-voltage applications. It may not be suitable where locking mechanisms, waterproofing, or specialized contact plating are required.

Key specifications

How to use

Mount the connector on the matching header or PCB footprint with the correct 2.5 mm pin spacing. Ensure wire conductor sizes and insulation stripping lengths match the mating contact requirements, and insert wires firmly to achieve reliable electrical contact. For panel or terminal block replacements, confirm mechanical fit and polarity before final assembly. Follow proper soldering or insertion procedures for the chosen mounting method and verify connections with a continuity test.

What to consider before purchase

Recommendations

Use this 2-pin 2.5 mm connector for reliable low-voltage and signal wiring in compact assemblies. When installing, verify wire gauge compatibility and inspect each connection for secure seating; for critical applications, perform continuity and insulation tests after assembly.
