Kabelmantel DeLOCK 66623

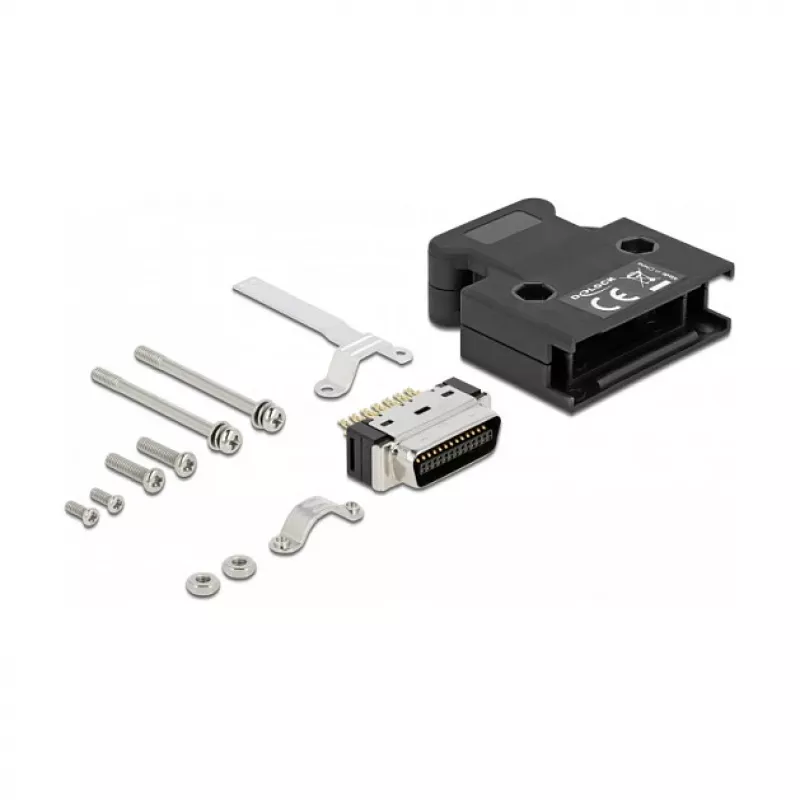

The DeLOCK 66623 cable boot is a black plastic accessory designed to protect and secure cable connections. It is intended for mounting on cables and offers a neat finish and strain relief for cable assemblies, compatible with applications that use MDR (Mini D Ribbon) male connectors and soldering connections.

Advantages

The cable boot is made of durable plastic in black finish to provide mechanical protection and improved cable routing. Its compact dimensions (39 mm width, 12.7 mm height) enable a snug fit for a range of cable types while helping to reduce strain at soldered MDR male connections.

Suitable for

• Cable mounting and repair jobs
• I/O applications using MDR (Mini D Ribbon) male connectors
• Installations requiring strain relief for soldered connector joints

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66623
• EAN: 4043619666232
• Colour: Black
• Material: Plastic
• Dimensions: 39 mm (width) x 12.7 mm (height)
• Type: Cable boot for MDR (Mini D Ribbon) male with soldering connection

How to use

Slide the cable boot onto the cable before performing the soldering and connector assembly. After soldering the MDR male connector, position the boot over the connector area to provide protection and strain relief, then secure it according to the cable assembly method used (snap-fit, adhesive, or heat-shrink where applicable).

Recommendations

Check compatibility of the boot dimensions with the cable diameter and connector housing before installation. For reliable strain relief, ensure the boot fully covers the soldered area and is secured to prevent movement that could stress the joint.
