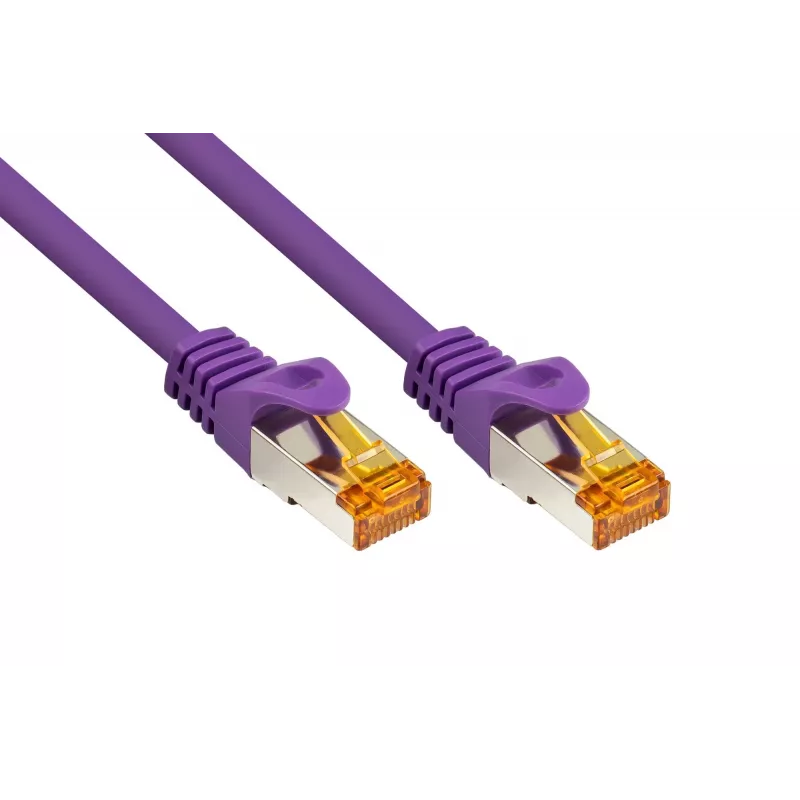

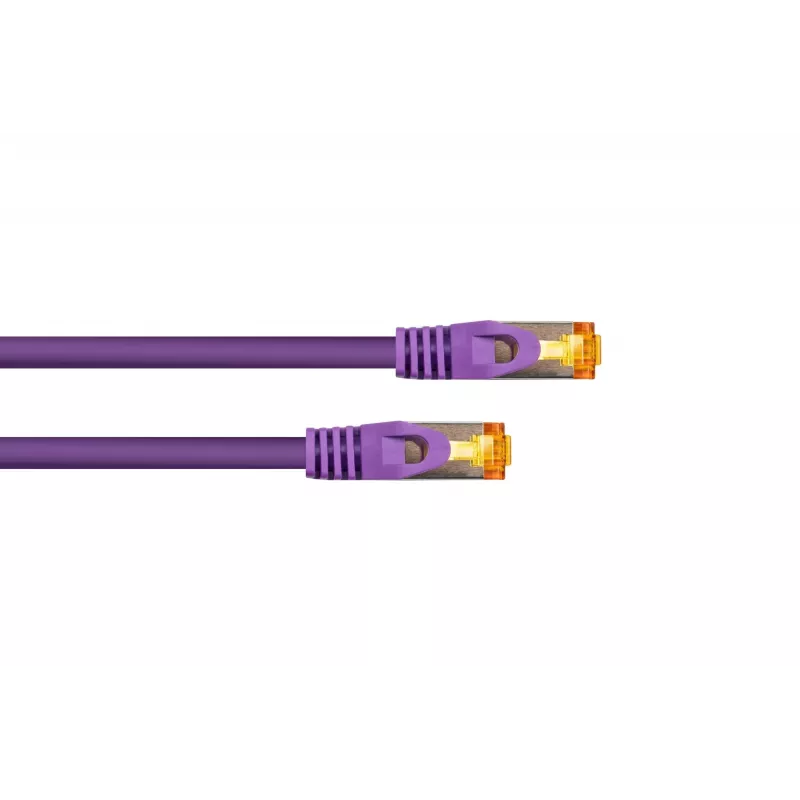

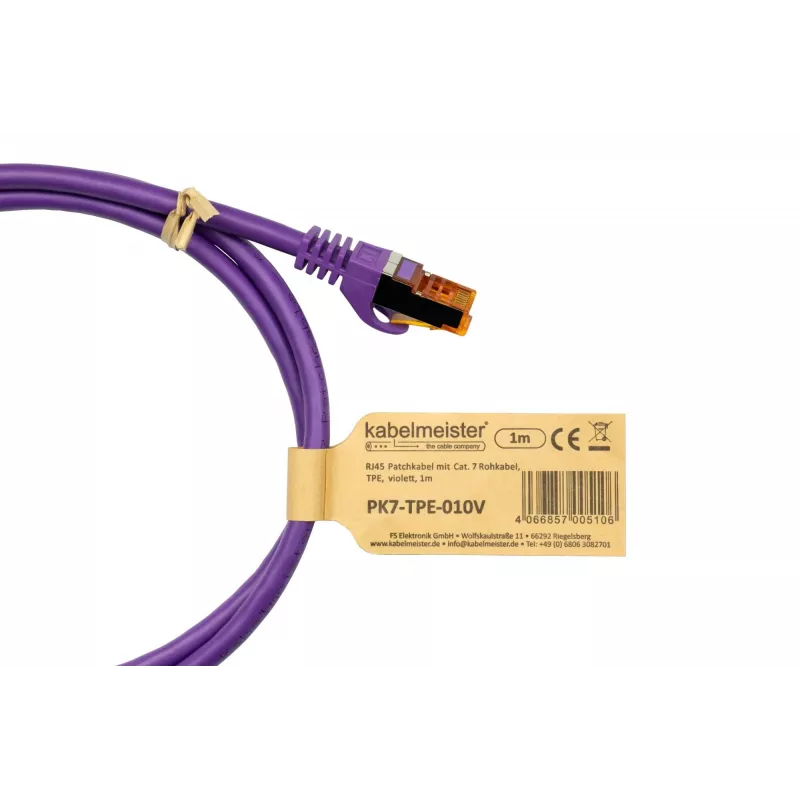

KABELMEISTER Cat.7 S/FTP patchkabel, RJ45, TPE, halogeenvrij, violet, 0,5m

High-speed Cat.7 S/FTP patch cable for reliable 10 Gigabit Ethernet connections in demanding network environments. The halogen-free TPE jacket ensures flexibility and safety, while the violet colour allows easy identification.

Advantages

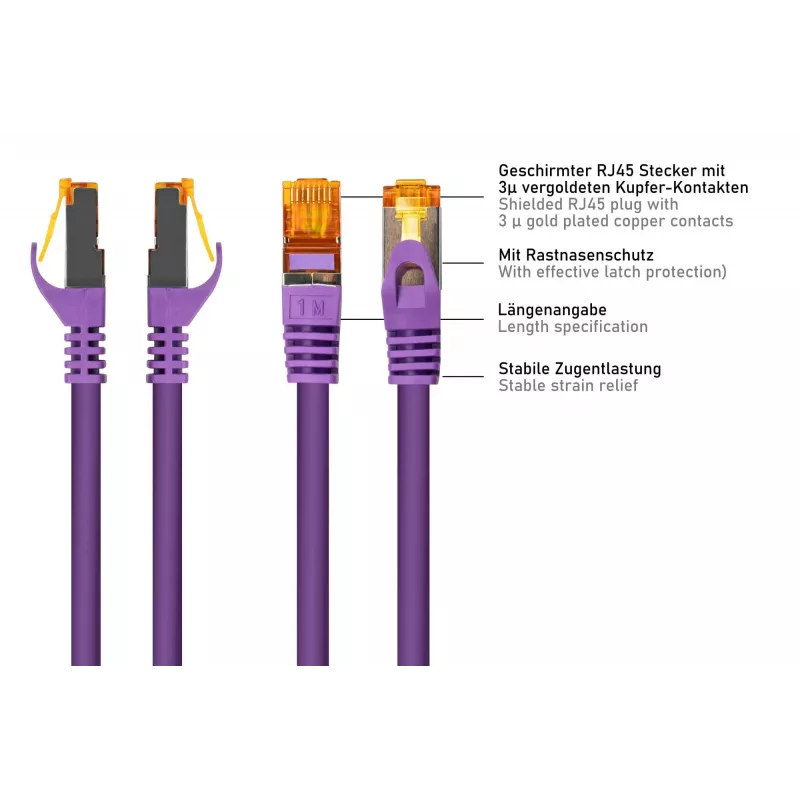

This cable features S/FTP shielding with individually foiled pairs and an overall braid, providing excellent protection against electromagnetic interference (EMI) and crosstalk. The gold-plated connectors (50µm) ensure corrosion resistance and optimal signal integrity. The halogen-free, LSZH-rated TPE jacket is low-smoke and non-toxic in case of fire, making it suitable for public buildings and enclosed spaces. The snagless boot protects the locking tab during installation and removal.

Suitable for

• 10GBASE-T Ethernet networks (up to 10 Gbps)
• Data centers and server rooms
• Office and home networks
• PoE applications (up to PoE++)
• Industrial environments with EMI

Key specifications

• Category: Cat.7 (Class F)
• Shielding: S/FTP (PiMF)
• Length: 0.5 m
• Colour: Violet
• Jacket: TPE, halogen-free (LSZH)
• Bandwidth: 600 MHz
• Conductor: Copper, AWG 27/7 stranded
• Connectors: RJ45 male to RJ45 male, gold-plated
• Wiring: TIA/EIA 568B

Recommendations

For optimal performance, pair with Cat.7 or higher rated components. The short length is ideal for patching between devices in close proximity, such as between a patch panel and a switch, or from a wall outlet to a workstation.
