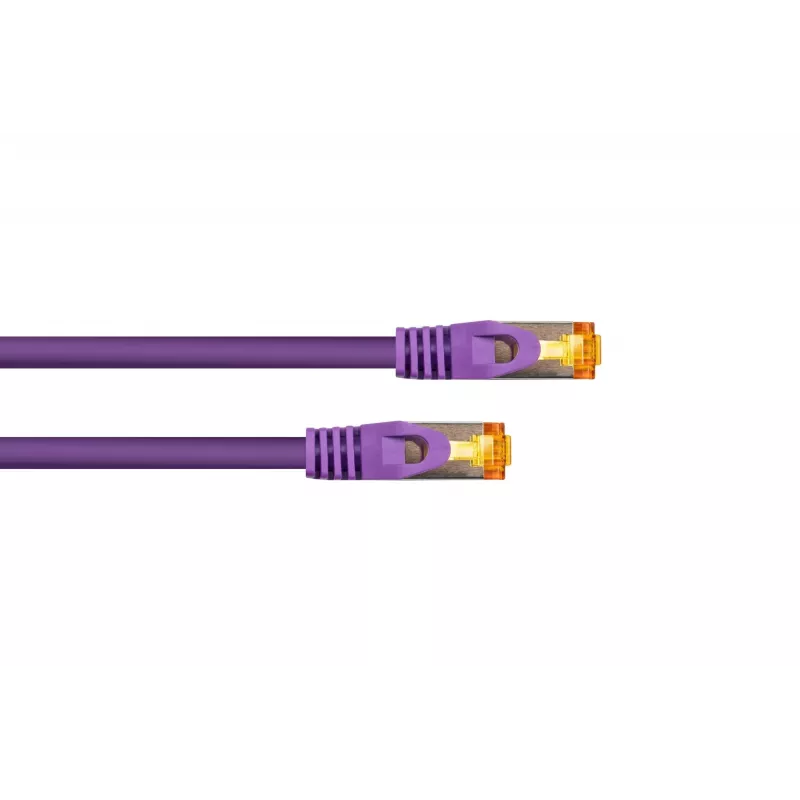

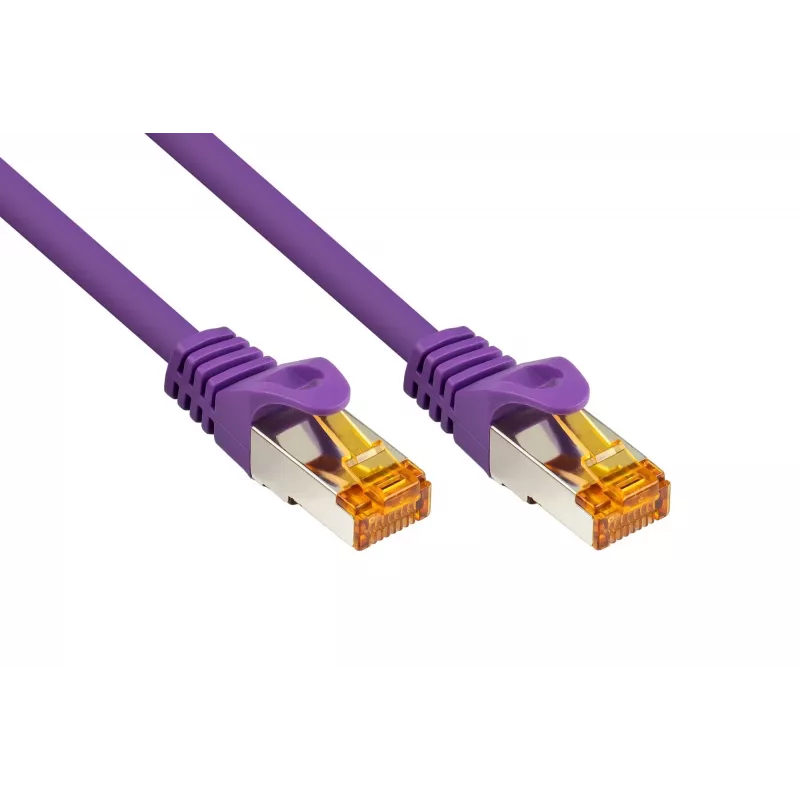

Kabelmeister Cat.7 S/FTP patchkabel, TPE-mantel, halogeenvrij, violet, 15 m

In server rooms and data centers, network administrators rely on this 15-meter violet patch cable to link high-speed switches, routers, and servers. Its Cat.7 S/FTP shielding and robust TPE jacket ensure stable 10 Gigabit Ethernet connections even in dense cable bundles.

Key specifications

• Length: 15 m
• Category: Cat.7 (Class F)
• Shielding: S/FTP (PiMF, overall braid)
• Jacket material: TPE (thermoplastic elastomer), highly flexible, halogen-free
• Colour: Violet

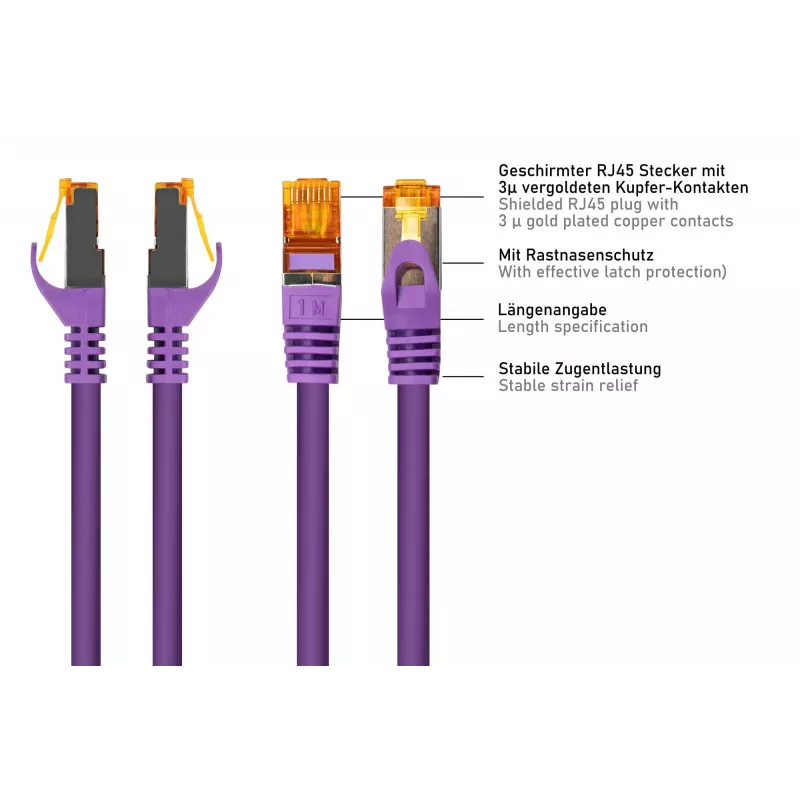

• Connectors: RJ45 male to RJ45 male, gold-plated contacts, snagless boots
• Conductor: Copper, AWG 26/7 stranded
• Bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Flammability rating: LSZH (low smoke zero halogen)
• Compliance: RoHS, REACH

Why choose it

The S/FTP shielding with individually foiled pairs and an overall braid provides excellent protection against alien crosstalk and EMI, making it ideal for high-density installations. The TPE jacket remains flexible even in cold environments and is halogen-free, so it emits no toxic fumes in case of fire. Gold-plated contacts ensure reliable, corrosion-resistant connections over thousands of mating cycles.

Ideal use cases

• 10GBASE-T Ethernet networks in data centers and server rooms
• Connecting high-performance workstations, NAS devices, and switches
• Industrial environments where flexibility and halogen-free materials are required
• Long-distance patch connections up to 15 meters

Good to know

This cable is backward compatible with Cat.6a, Cat.6, Cat.5e, and lower categories. It is suitable for PoE applications up to IEEE 802.3bt (PoE++). The snagless boot protects the locking tab during installation and removal in tight spaces.
