Kabelmeister jumper wire 40-pin, scheidbare draden voor Arduino, Raspberry Pi enz., female naar female, 20 cm

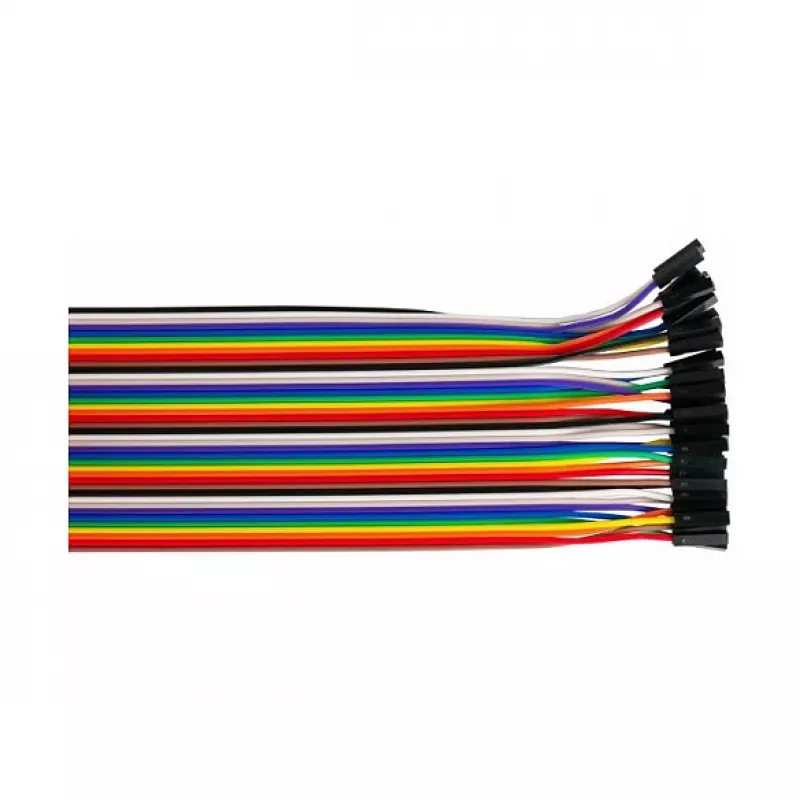

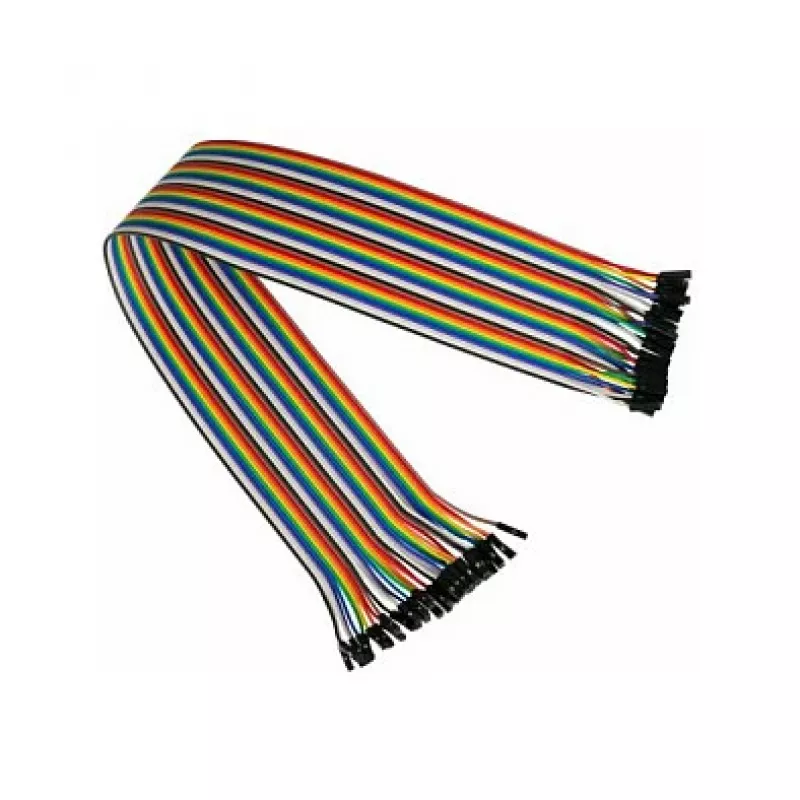

The Kabelmeister Jumper Wire 40-Pin set is a versatile ribbon cable designed for electronic prototyping with Arduino, Raspberry Pi, breadboards, and other development boards. This 40-wire female-to-female jumper set features separable individual wires, each 20 cm long, with a 2.54 mm pitch connector. The wires are made of tinned copper with PVC insulation, rated for 300 V and 1 A. The multi-color rainbow design makes it easy to identify connections. Perfect for DIY projects, circuit connections, and educational use.

Advantages

This jumper wire set offers flexibility and convenience for prototyping. The ribbon cable can be easily separated into individual wires, allowing custom routing. The female connectors on both ends ensure secure connections to headers and pins. The 26 AWG wire gauge provides reliable current handling, while the PVC insulation offers durability and flexibility. The multi-color coding simplifies circuit debugging and organization.

Suitable for

• Arduino and Raspberry Pi projects
• Breadboard prototyping
• Circuit connections and DIY electronics
• Educational kits and hobbyist projects
• Sensor and module interfacing

Key specifications

• Product Type: Jumper Wire Set
• Number of Wires: 40
• Connector Type (End 1): Female
• Connector Type (End 2): Female
• Wire Length: 20 cm
• Wire Gauge: 26 AWG
• Wire Material: Tinned Copper
• Insulation Material: PVC
• Separable Wires: Yes
• Connector Pitch: 2.54 mm (0.1 inch)
• Compatibility: Arduino, Raspberry Pi, Breadboards, Prototyping Boards
• Color: Multi-color (Rainbow)
• Voltage Rating: 300 V
• Current Rating: 1 A
• Cable Configuration: Ribbon Cable (can be separated into individual wires)
• Operating Temperature: -20°C to 85°C
• Application: Electronic prototyping, circuit connections, DIY projects

Recommendations

For best results, use these jumper wires with standard 2.54 mm pitch breadboards and headers. The separable design allows you to customize wire lengths and configurations. Ideal for both beginners and experienced makers.
