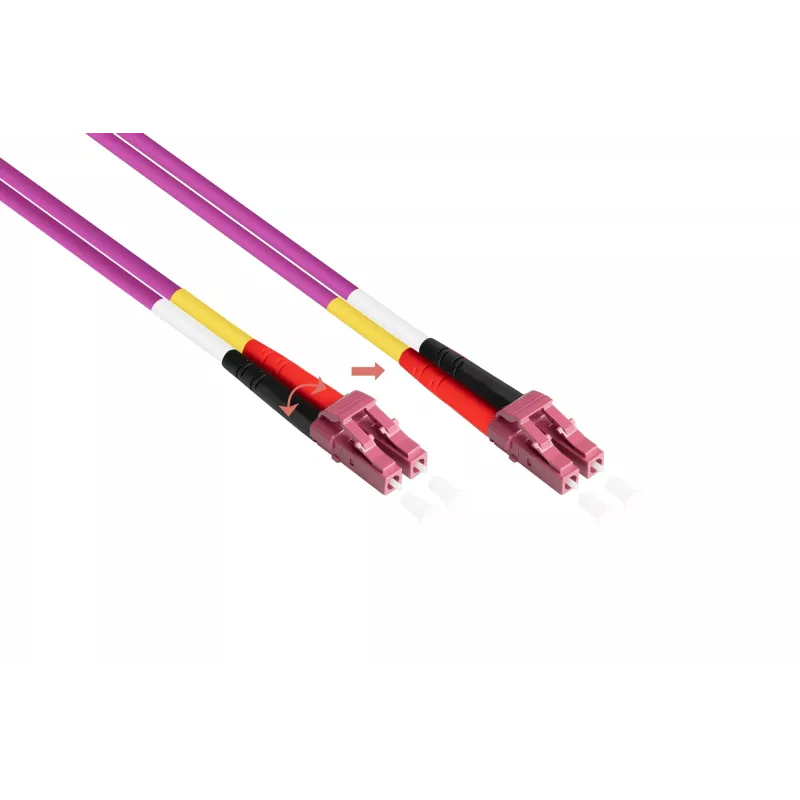

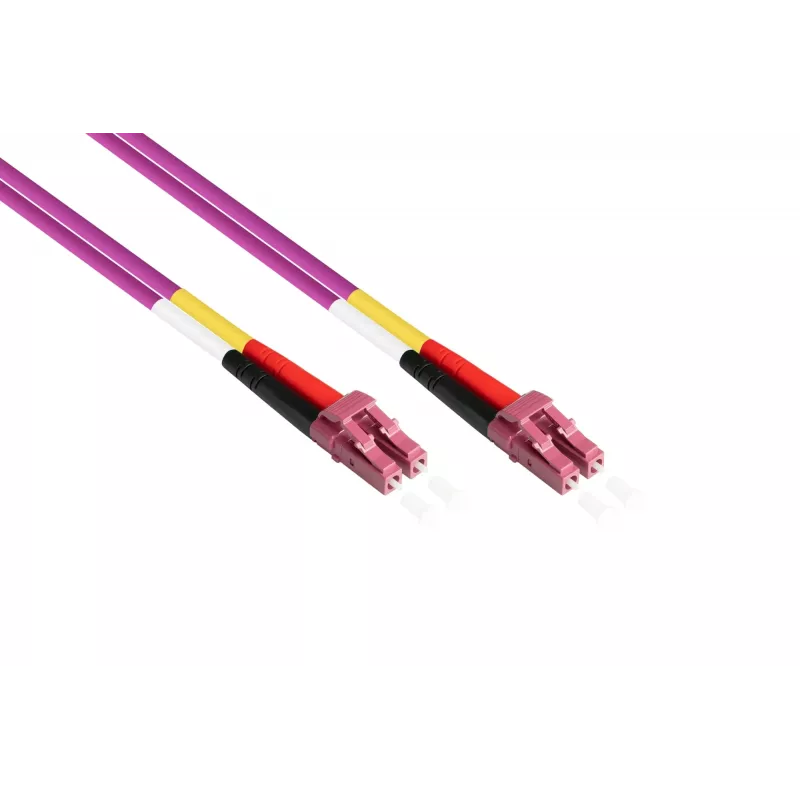

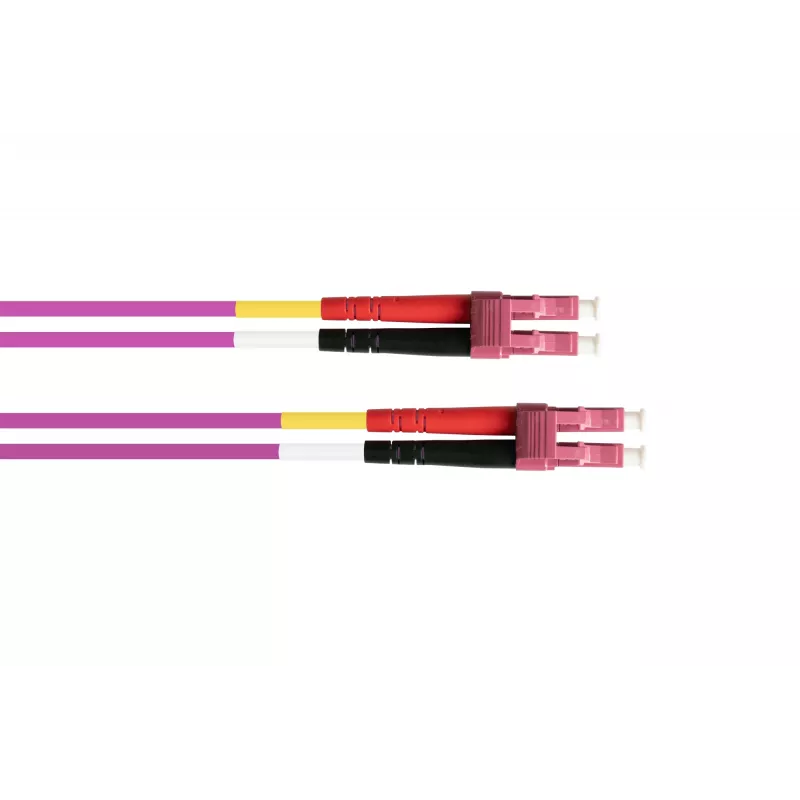

Kabelmeister patchkabel glasvezel Duplex OM4 Multimode 50/125 LC/LC LSZH verwisselbare polariteit - glasvezelnetwerkkabel

The Kabelmeister LDM4-LC-050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring OM4 multimode fiber with a 50/125 µm core/cladding, this duplex LC to LC cable supports 10GbE, 40GbE, and 100GbE applications. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the exchangeable polarity feature allows flexible configuration. Ideal for data centers, enterprise networks, and high-speed infrastructure.

Advantages

OM4 multimode fiber provides high bandwidth over longer distances compared to OM3. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for indoor installations. Exchangeable connectors enable polarity changes without re-termination, saving time and cost.

Suitable for

• Data center interconnects
• Enterprise network backbones
• High-speed storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Multimode OM4
• Core/Cladding: 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 0.5 m
• Jacket material: LSZH
• Color: Aqua
• Number of fibers: 2 (Duplex)
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair with OM4-compatible transceivers and ensure clean connector end-faces. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
