Kabelmeister stroomverlengkabel C20 naar C19, zwart, 1,5m

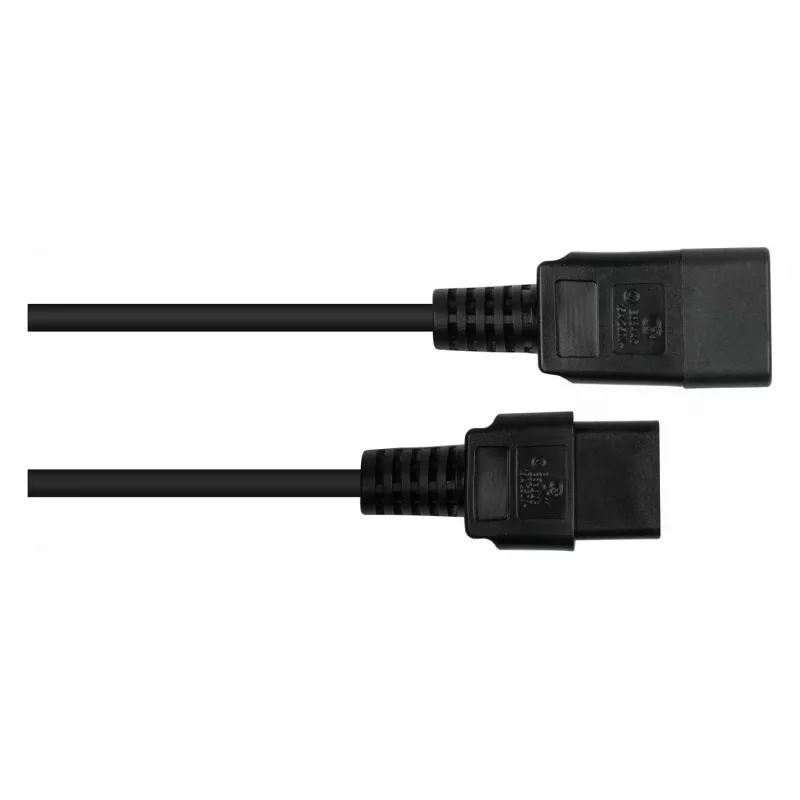

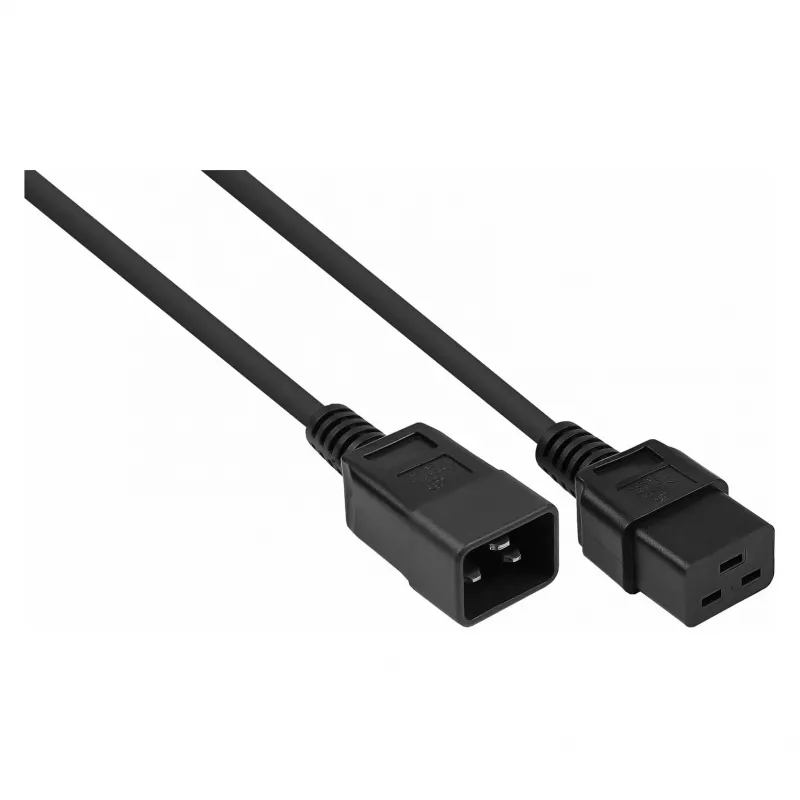

The Kabelmeister SK2090-S050 is a high-quality power extension cable designed for professional use in data centers, server rooms, and industrial environments. It features a C20 male connector to a C19 female connector, providing a reliable and secure connection for servers, UPS systems, PDUs, and workstations. With a length of 1.5 meters and a black PVC jacket, this cable offers flexibility and durability for demanding applications.

Advantages

This power extension cable ensures safe and efficient power distribution with its robust construction and compliance with international standards. The nickel-plated brass contacts provide excellent conductivity and corrosion resistance, while the flame-retardant PVC jacket enhances safety. The 16A/250V rating makes it suitable for high-power equipment, and the 1.5m length offers convenient reach without excess slack.

Suitable for

• Connecting servers to UPS or PDU systems
• Extending power reach for data center equipment
• Replacing or upgrading existing power cables in IT racks
• Industrial and commercial applications requiring C20 to C19 connections

Key specifications

• Connector A: IEC 60320 C20 Male
• Connector B: IEC 60320 C19 Female
• Cable Length: 1.5 meters
• Color: Black
• Max. Current Rating: 16 A
• Max. Voltage Rating: 250 V AC
• Conductor Cross-Section: 3 x 1.5 mm²
• Number of Conductors: 3 (Live, Neutral, Earth)
• Cable Standard: H05VV-F
• Jacket Material: PVC
• Connector Material: Nickel-plated brass contacts
• Compliance: IEC 60320-1
• Certifications: CE, RoHS
• Operating Temperature: -10°C to +70°C
• Flammability Rating: Flame Retardant (IEC 60332-1-2)

Recommendations

For optimal performance and safety, ensure that the connected equipment is compatible with C20/C19 connectors and does not exceed the cable's rated current and voltage. This cable is ideal for use in server racks and data centers where reliable power distribution is critical.
