Kabelverbinder DeLOCK 66723 D-Sub HD 50-polig zwart zilver

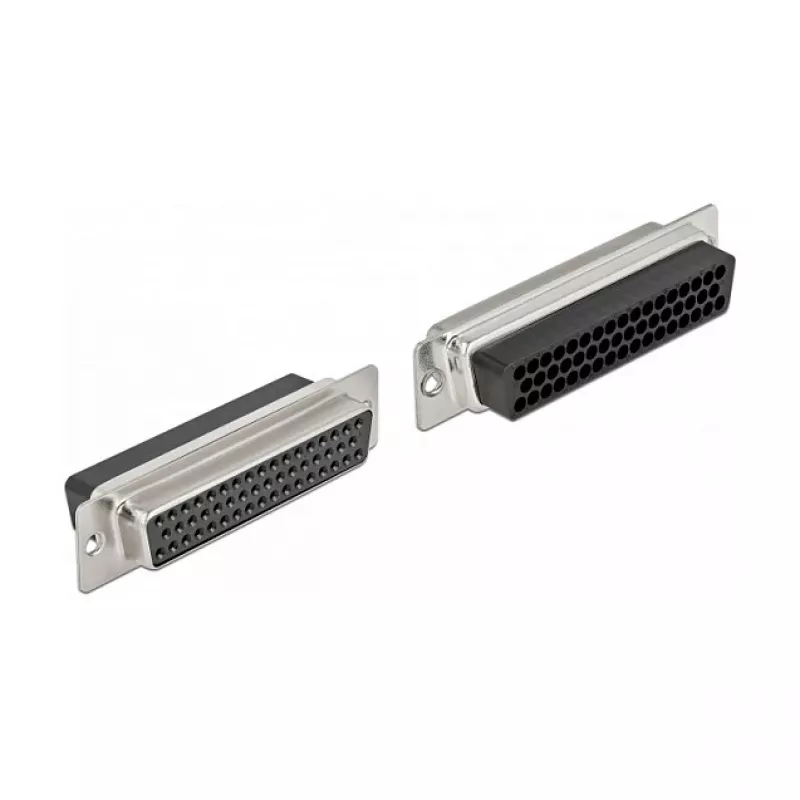

The DELOCK Wire Connector 66723 is a compact D-Sub HD 50‑pin female connector designed for board- and cable-level connections where a high-density D-Sub interface is required. Finished in black and silver, the connector offers a low-profile footprint with overall dimensions of 15.7 mm (width) × 67 mm (depth) × 12.5 mm (height). Supplied in a polybag and manufactured in China, this component is intended for integration into cable assemblies, adaptors, or small enclosures that accept D-Sub HD interfaces.

Advantages

The connector’s high-density 50-pin layout enables multiple signal lines in a compact housing, reducing space requirements compared with standard D-Sub connectors. The black and silver finish provides clear visual contrast for mating and alignment. Its small dimensions make it suitable for installations with limited panel or housing depth. The female contact configuration supports a wide range of mating plug types and cable terminations.

Suitable for

• High-density signal transmission in compact devices
• Cable assemblies and custom adaptor production
• Embedded systems and small enclosure installations
• Repair or replacement of D-Sub HD 50-pin interfaces

Key specifications

• Connector type: D-Sub HD 50-pin, female contact arrangement
• Colour: Black housing with silver contacts/trim
• Dimensions: 15.7 mm (W) × 67 mm (D) × 12.5 mm (H)
• Packaging: Supplied in a polybag
• Manufacturing origin: China

How to use

Install the connector into the target cable assembly or adaptor according to your project’s wiring and mechanical requirements, taking care to align the female contact holes with the mating plug pins. Verify mechanical fixation and strain relief in the assembly to prevent stress on contacts. For panel or enclosure mounting, ensure the available cutout and internal clearance match the connector dimensions and allow for secure fastening and cable routing.

Recommendations

Use standard D-Sub mating connectors and compatible screws or locking hardware to ensure secure electrical and mechanical contact. For reliable long-term performance, avoid excessive bending stresses on attached cables and inspect contact alignment before powering connected equipment.
