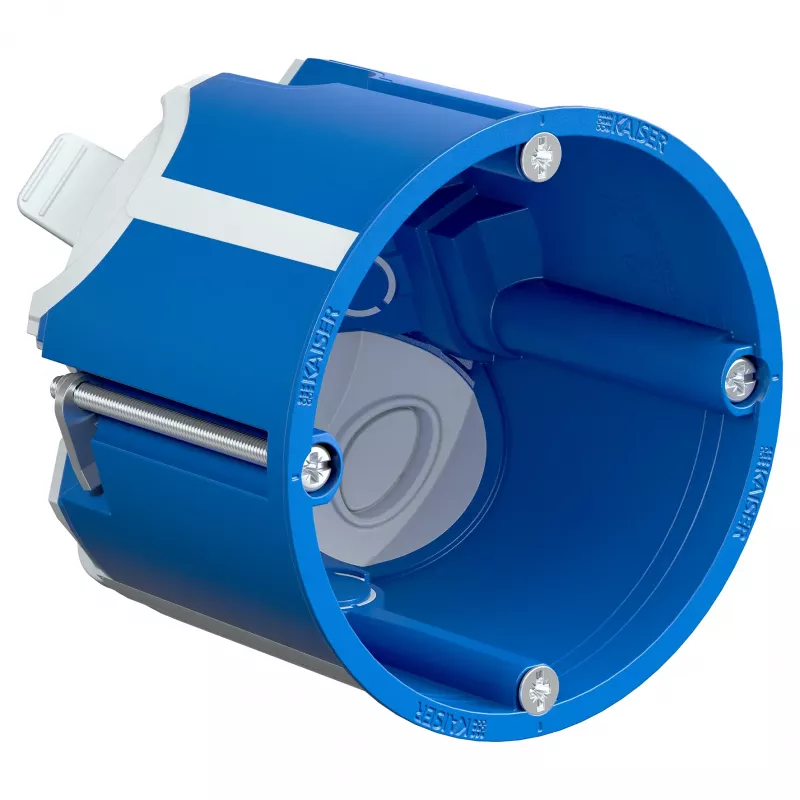

Kaiser Elektro 9069-04 geluidsdempende hollewand-aftakdoos 68mm

The Kaiser Elektro 9069-04 is a high-quality sound-insulated cavity wall junction box designed for professional electrical installations in hollow walls. This junction box ensures reliable connections while significantly reducing sound transmission, making it ideal for multi-room environments where acoustic comfort is essential.

Advantages

This junction box offers excellent sound insulation up to 61 dB, helping to maintain peace and quiet between rooms. Its air-tight design prevents drafts and improves energy efficiency. The flexible sealing membranes allow for easy cable entry without compromising the seal, and the halogen-free thermoplastic material ensures safety and durability.

Suitable for

• Installation in cavity walls (hollow walls) with thicknesses from 7 to 35 mm
• Use in residential and commercial buildings where sound insulation is required
• Connecting electrical cables in walls with a drilling diameter of 68 mm

Key specifications

• Product Type: Cavity Wall Junction Box
• Special Feature: Sound Insulated
• Installation Type: Cavity Wall / Hollow Wall
• Drilling Diameter: 68 mm
• Installation Depth: 61 mm
• Sound Insulation Rating: Up to 61 dB
• Material: Thermoplastic
• Halogen-free: Yes
• Protection Class (IP): IP30
• Air-tight: Yes
• Number of Cable Entries: 8
• Cable Entry Type: Flexible Sealing Membranes
• Suitable for Wall Thickness: 7 - 35 mm
• Color: Orange / Grey
• Max. Conductor Cross-Section: 2.5 mm²
• Rated Insulation Voltage: 400 V
• Standards: DIN EN 60670-1, DIN EN 60670-22

Recommendations

For optimal sound insulation, ensure the junction box is properly sealed and installed according to manufacturer guidelines. Pair with compatible cables and accessories for best results.
