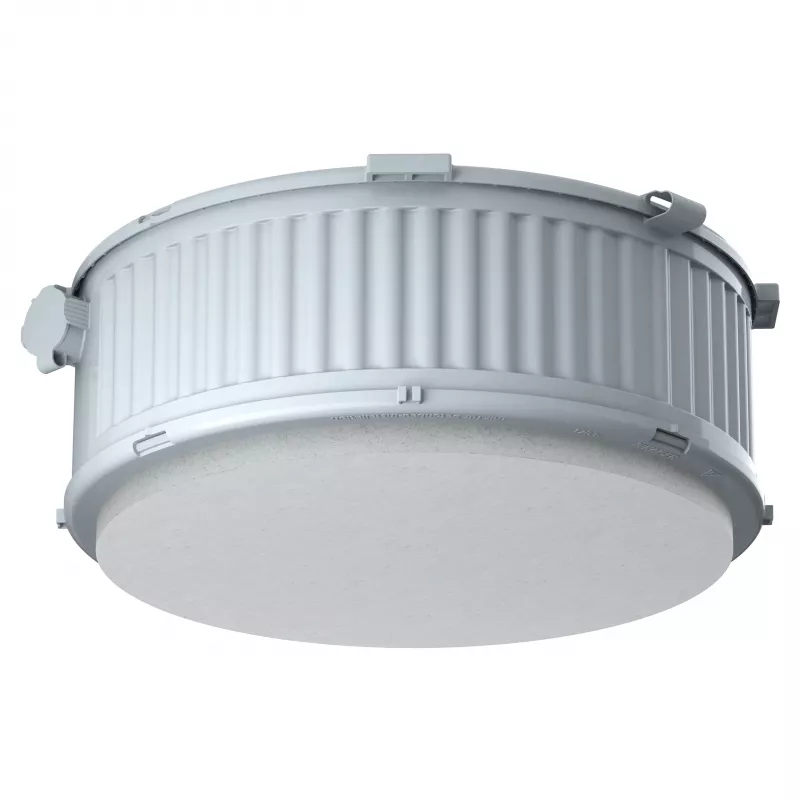

Kaiser Elektro HaloX 250 inbouwbehuizing met mineraalwolplaat 1283-71

Recessed luminaires and loudspeakers in concrete ceilings often compromise fire protection and sound insulation. The Kaiser Elektro HaloX 250 flush-mounted housing solves this by providing a halogen-free plastic enclosure with an integrated mineral fiber plate, ensuring enhanced fire safety and acoustic performance in prefabricated and in-situ concrete.

Who is it for

Electricians and contractors installing recessed spotlights or loudspeakers in concrete structures who need a reliable, air-tight housing that meets DIN 4108-11 requirements and supports various luminaire types.

Main features

• Outer diameter 250 mm, installation depth 120 mm
• Accommodates luminaires up to 250 mm diameter and 185 mm installation height
• 8 x M20/M25 combi cable entries for flexible wiring
• Halogen-free plastic housing, orange colour
• Integrated mineral fiber plate for fire protection and sound insulation
• Air-tight according to DIN 4108-11
• Suitable for LED, low-voltage halogen, and high-voltage halogen luminaires; max. 50 W for halogen, unlimited for LED

Specifications

• Product type: Flush-mounted housing
• Series: HaloX 250
• Material: Halogen-free plastic
• Colour: Orange
• Outer diameter: 250 mm
• Installation depth: 120 mm
• Max. luminaire diameter: 250 mm
• Max. luminaire installation height: 185 mm
• Cable entries: 8 x M20/M25 combi
• Air tightness: Yes (DIN 4108-11)
• Sound insulation: Enhanced
• Halogen-free: Yes

Tips

Ensure the concrete opening matches the 250 mm outer diameter for a secure fit. Use the combi cable entries to route wiring efficiently. The mineral fiber plate must remain intact to preserve fire and sound ratings.
