Kaiser Elektro inbouw aftakdoos UP 238x208mm 1097-92

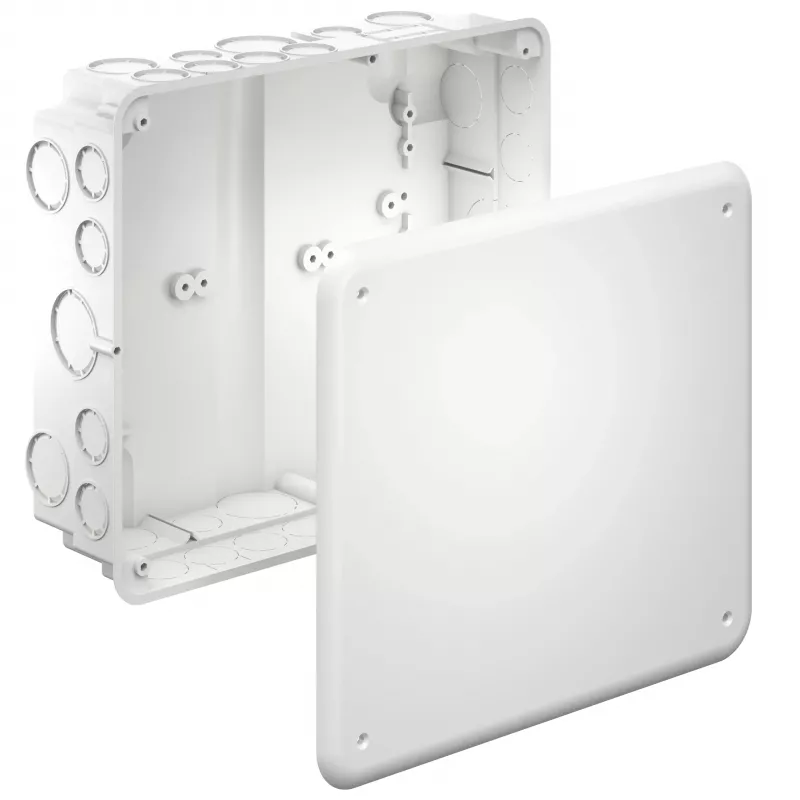

The Kaiser Elektro Flush-Mounted Junction Box UP 238x208mm (model 1097-92) is a high-quality plastic junction box designed for professional electrical installations. With its generous dimensions of 238 x 208 x 92 mm, it provides ample space for cable connections and terminations. The box is flush-mounted (UP) and features a snap-on lid for easy access. It is halogen-free, flame retardant, and has an IP30 protection rating, making it suitable for indoor use in solid walls and masonry.

Advantages

This junction box offers reliable protection for electrical connections. Its robust construction and impact resistance (IK07) ensure durability. The 10 knockouts provide flexible cable entry options, and the glow wire test at 750°C guarantees safety. The box is easy to install and maintain.

Suitable for

• Flush-mounted installations in solid walls and masonry
• Junction and connection boxes for electrical wiring
• Use in dry indoor environments

Key specifications

• Brand: Kaiser Elektro
• Model: 1097-92
• MPN: 1097-92
• EAN: 4013456152601
• Category: Junction & Connection Box
• Mounting Type: Flush-mounted (UP)
• External Dimensions (L x W x D): 238 x 208 x 92 mm
• Material: Plastic
• Colour: Grey
• IP Protection Class: IP30
• Halogen-free: Yes
• Lid Type: Snap-on lid
• Number of Cable Entries: 10
• Cable Entry Type: Knockouts
• Rated Insulation Voltage: 400 V
• Glow Wire Test: 750 °C
• Operating Temperature Range: -5 °C to +60 °C
• Impact Resistance: IK07
• Suitable for: Solid walls, masonry
• Flame Retardant: Yes

Recommendations

For optimal installation, ensure the box is securely mounted in the wall and all cable entries are properly sealed. Use appropriate cable glands for knockouts. This product is ideal for electricians and contractors seeking a reliable junction box for flush-mounted applications.
