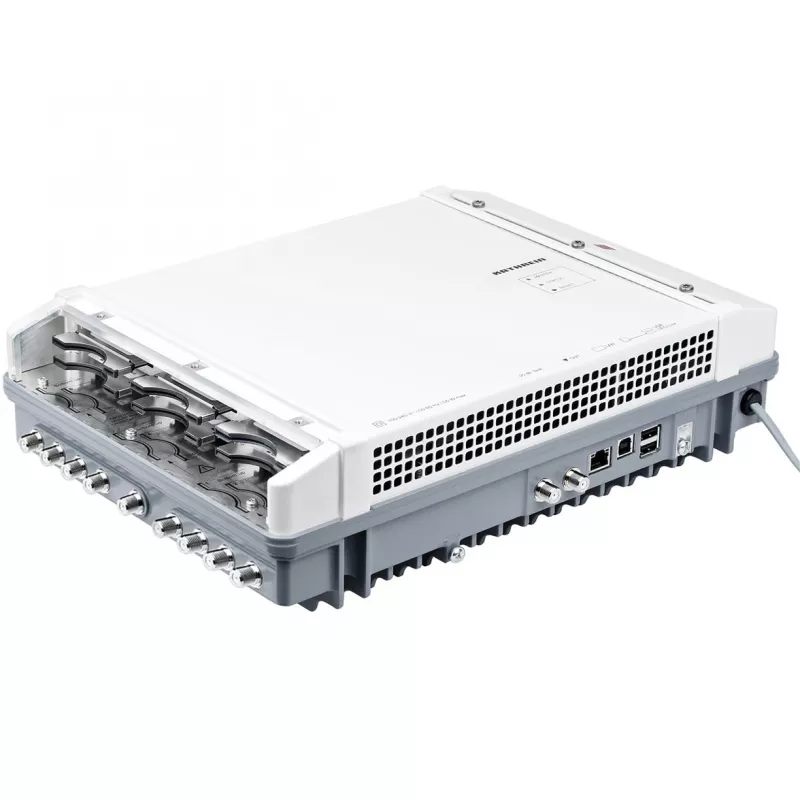

Kathrein DVB-S2-kopstation KAT UFO 87-18/CI met 16 uitgangen en 2 multis

Kathrein UFO 87-18/CI is a compact DVB-S2 headend designed for small to medium MATV systems. The unit provides 16 outputs and two independent multiswitch inputs, supporting DVB-S2 signals and offering integration for DVB-S2/T2/C distribution. It is intended to convert and distribute satellite signals reliably within multi-dwelling or commercial installations where multiple receivers require access to the same satellite feed.

Advantages

The Kathrein UFO 87-18/CI delivers stable DVB-S2 signal distribution with 16 outputs and two multiswitch inputs for flexible channel routing. Its compact construction simplifies installation in headend racks or equipment rooms. The model supports common broadcast standards and is compatible with typical SAT distribution components, enabling straightforward integration into existing systems.

Suitable for

Key specifications

How to use

Install the headend in a ventilated equipment cabinet or rack and connect the satellite dish LNBs to the two multiswitch inputs. Configure connected receivers to the appropriate output lines. Ensure correct cabling and impedance matching for each output to avoid signal loss. Follow standard installation practices for grounding and lightning protection.

Recommendations

Use signal level meters and spectrum analyzers during commissioning to set optimal gain and attenuation. Place the device where ambient temperature stays within the manufacturer's specified range and ensure proper ventilation to maintain long-term reliability.
