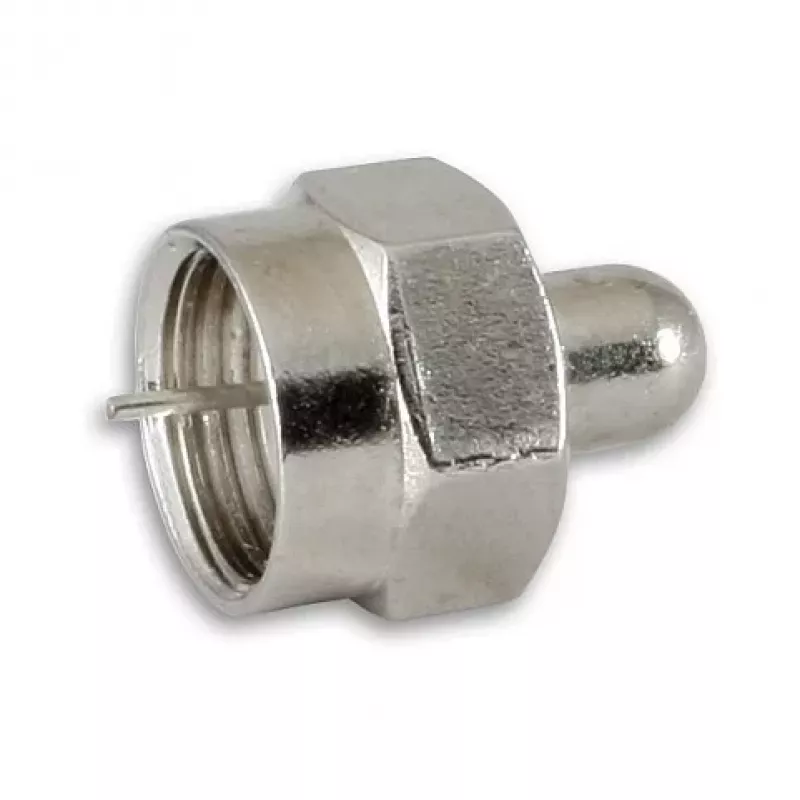

Kathrein EMK 03 F-Type afsluitweerstand 75 Ohm

The Kathrein EMK 03 is a high-quality F-type termination resistor designed to terminate unused F-ports in satellite, cable TV, and terrestrial antenna systems. It prevents signal reflections and interference, ensuring optimal system performance.

Advantages

This termination resistor offers excellent shielding effectiveness and return loss, maintaining signal integrity across a wide frequency range. Its DC decoupling feature blocks DC voltage, protecting connected equipment.

Suitable for

• Terminating unused F-ports in satellite and cable TV installations
• Indoor use in antenna systems requiring 75 Ohm impedance
• Applications up to 2400 MHz

Key specifications

• Product Type: F-Type Termination Resistor
• Impedance: 75 Ohm
• Connector: F-Plug (Male)
• Frequency Range: 0 - 2400 MHz
• Return Loss (5-2400 MHz): > 20 dB
• Shielding Effectiveness (30-1000 MHz): > 90 dB
• DC Decoupling: Yes (DC Blocked)
• Housing Material: Nickel-plated Brass
• Inner Conductor Material: Copper
• Operating Temperature: -20 to +50 °C
• Indoor Use

Recommendations

For best performance, use this termination resistor on all unused F-ports to avoid signal degradation. Ensure proper installation in a dry indoor environment.
