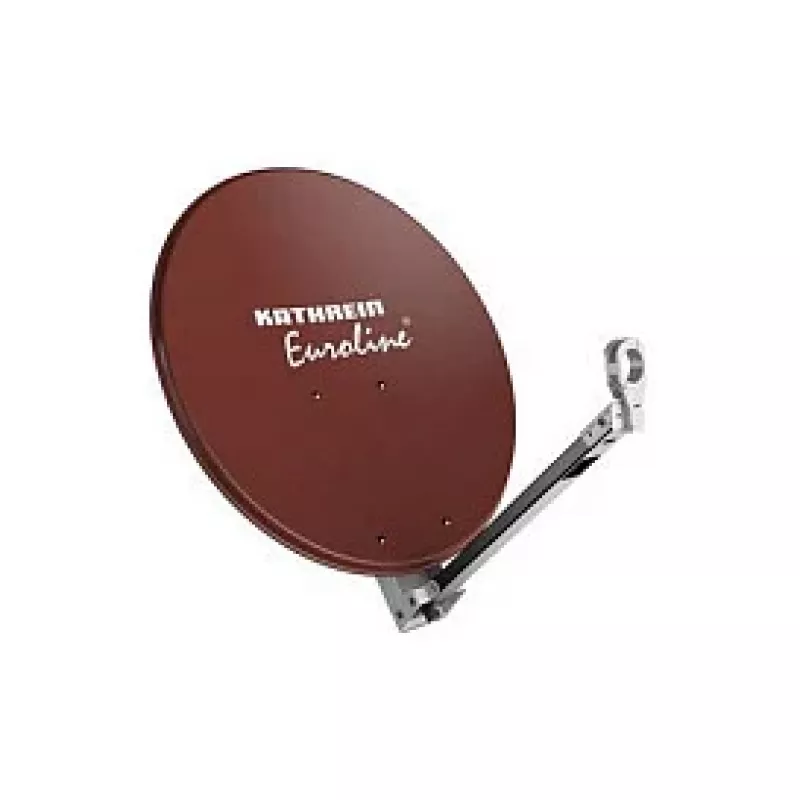

KATHREIN Euroline KEA 850R satellietschotel 85 cm antraciet 38,5 dBi

The KATHREIN Euroline KEA 850R stands out with its 85 cm aluminum offset parabolic reflector, delivering a high gain of 38.5 dBi for reliable reception even in fringe areas. Its compact size and robust build make it suitable for both individual and communal satellite systems.

Highlights

• 85 cm offset parabolic reflector for strong signal capture
• High gain of 38.5 dBi at 11.3 GHz
• Durable aluminum reflector with galvanized steel mount
• Wide mast clamp range: 30–90 mm
• Withstands wind speeds up to 200 km/h

In daily use

Installation is straightforward thanks to the included mast clamp and LNB holder for 40 mm LNBs. The anthracite finish blends discreetly with most rooftops. The dish is designed for linear polarization (horizontal/vertical) and covers the full Ku-band from 10.70 to 12.75 GHz.

Full specifications

• Reflector diameter: 85 cm
• Antenna gain: 38.5 dBi
• Frequency range: 10.70–12.75 GHz
• Reflector material: Aluminum
• Mount material: Galvanized steel
• Offset angle: 22°
• F/D ratio: 0.6
• LNB holder diameter: 40 mm
• Wind load resistance: up to 200 km/h
• Mast clamp diameter: 30–90 mm
• Polarization: Linear (horizontal/vertical)
• Colour: Anthracite
• Efficiency: >70%
• Half-power beamwidth: approx. 2.2°

Final note

The KEA 850R combines high performance with durable construction, making it a dependable choice for demanding satellite reception tasks.
