Kettingtakel Einhell TC-CH 1000 1000 kg 2,5 m rood zilver

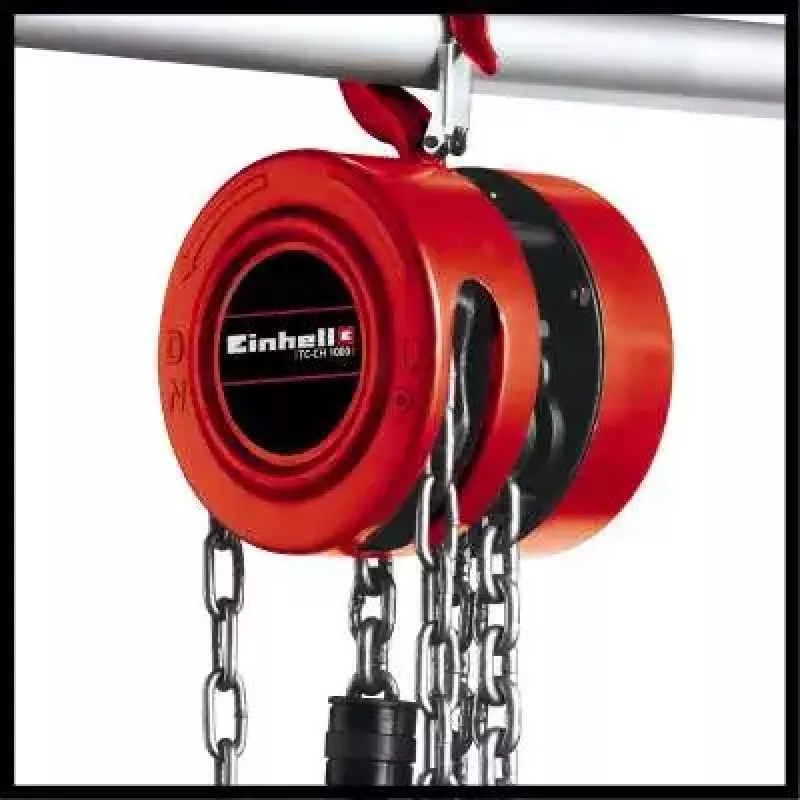

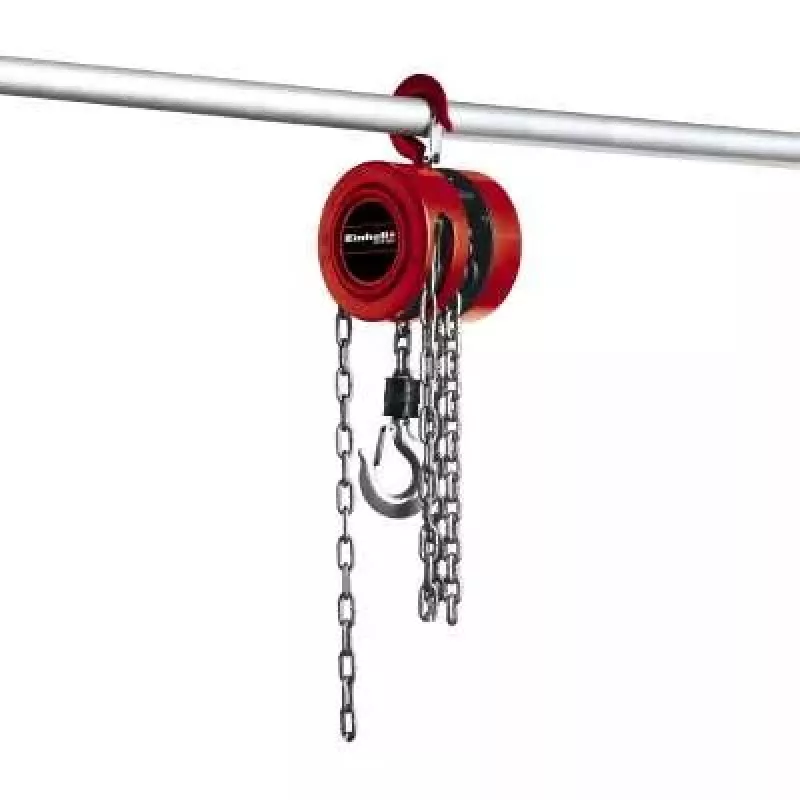

The Einhell TC-CH 1000 chain hoist is a compact manual lifting device designed for safe and controlled vertical lifting up to 1000 kg. With a lifting height of 2.5 m and a net weight of approximately 8.5 kg, the unit combines a robust steel chain and hook assembly with a compact housing in red and silver finish. The product is intended for intermittent lifting tasks where a reliable, portable solution is required in workshops, construction sites, garages, and other job sites.

Advantages

The chain hoist features a durable load chain and precision gearing that provide consistent lifting performance and reduced wear during regular use. Its compact dimensions and relatively low weight make it easier to transport and mount compared with larger hoisting systems. The integrated safety latch on the hook and the mechanical braking mechanism provide controlled lowering and holding of loads, supporting safer operation under normal working conditions.

Suitable for

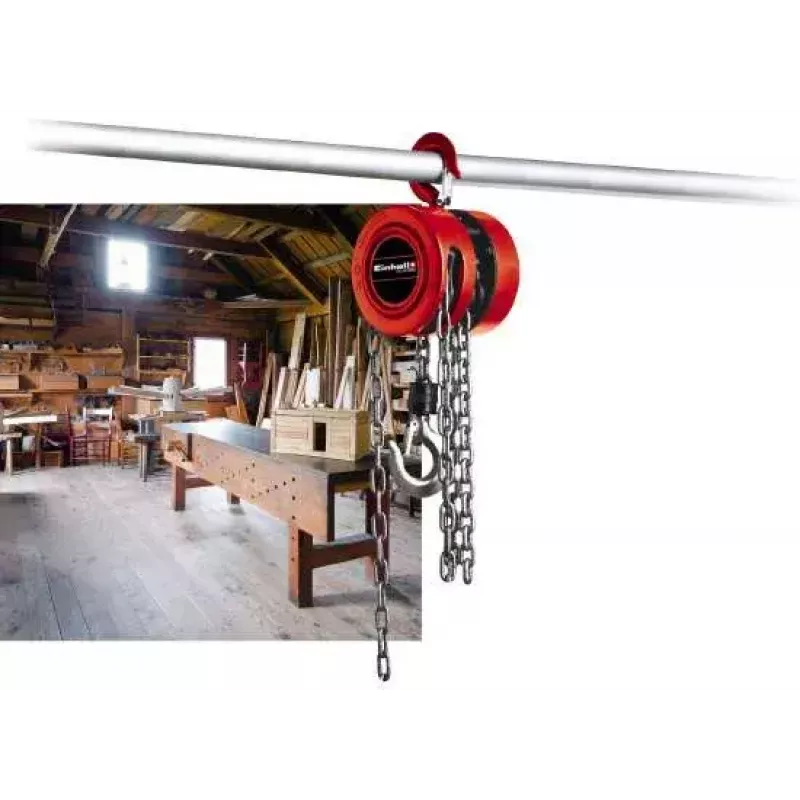

• Lifting heavy components in workshops and maintenance bays
• Installing and removing machinery parts on construction sites
• Suspending loads for vehicle repair and bodywork
• Temporary lifting tasks in warehouses and storage areas

Key specifications

• Maximum lifting capacity: 1000 kg
• Lifting height (single fall): 2.5 m
• Device weight: approximately 8.5 kg

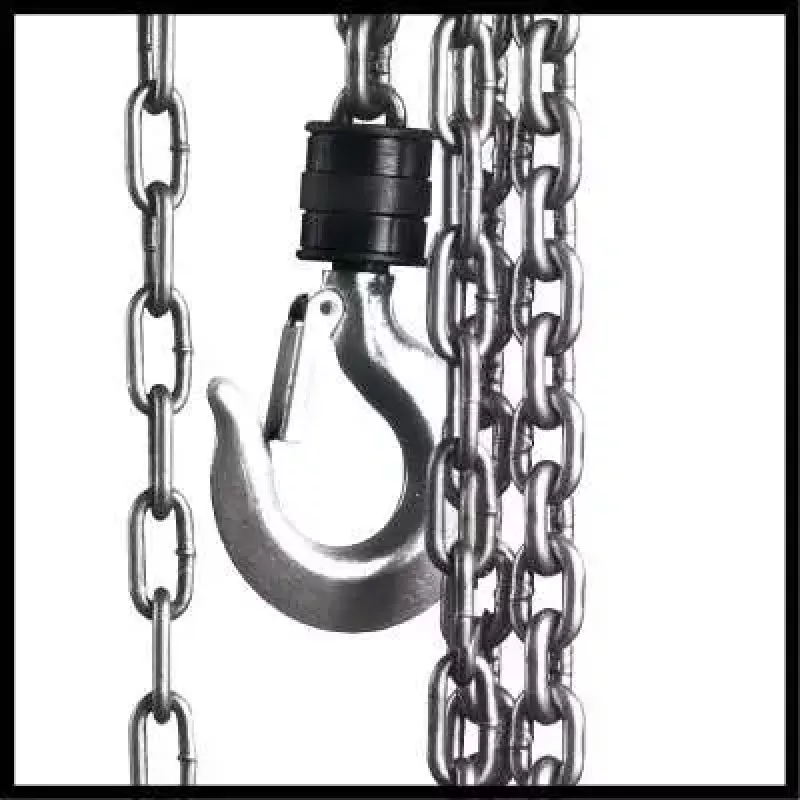

• Load chain material: heat-treated steel
• Housing finish: red and silver protective coating
• Operation: manual hand chain drive with mechanical load brake

How to use

Securely attach the chain hoist to a suitable suspension point or beam with adequate load-bearing capacity and appropriate accessories (shackle or trolley not included). Before each use, inspect the load chain, hooks, and brake for visible wear, deformation, or foreign debris. Hook the load with the safety latch engaged and apply steady, even force to the hand chain to lift the load. To lower, allow the hand chain to reverse slowly while holding control of the chain to maintain a smooth descent. Always follow rated capacity limits and ensure the load is balanced and stable prior to lifting.

Recommendations

Use the chain hoist on structurally sound support points rated above the intended load, keep a safe working area beneath suspended loads, and perform regular maintenance including lubrication of the load chain and periodic inspection of the braking mechanism. Do not exceed the maximum lifting capacity and avoid side pulls or shock loading to prolong service life and maintain safe operation.
