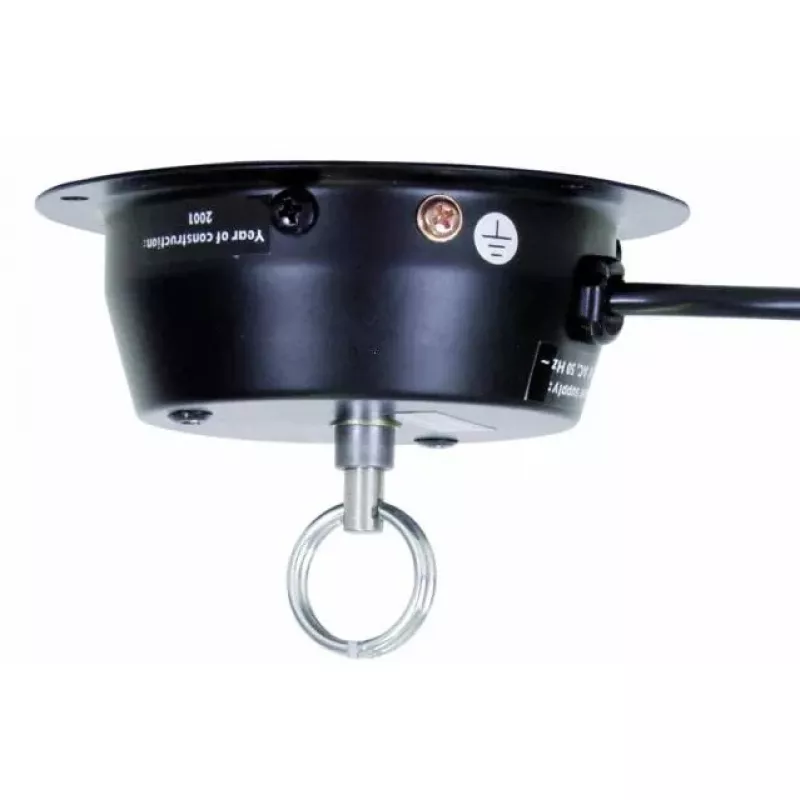

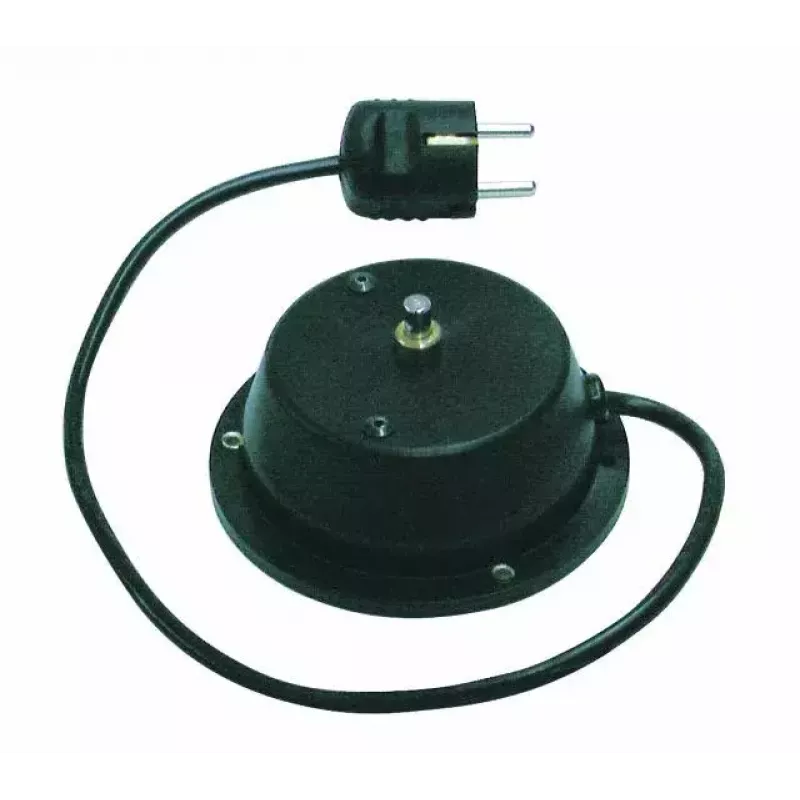

Rotatiemotor Eurolite MD-1015 zwart

The Eurolite MD-1015 Rotary motor (black) is a compact drive unit designed to rotate mirror balls and similar suspended decorations. It operates on 230 V / 50 Hz, has a net weight of 300 g and compact dimensions of 113 x 133 x 58 mm. The motor is supplied ready for connection with a power plug and delivers a rotation speed of 1.5 revolutions per minute. For professional installations, applicable safety standards must be observed and a secondary safety attachment used.

Advantages

The MD-1015 supports mirror balls up to 3 kg total load and is compatible with EUROLITE mirror balls up to 30 cm diameter. It is lightweight and compact for simple installation and transport, comes ready to connect with a power plug, and provides a constant low-speed rotation of 1.5 rpm for smooth visual effect.

Suitable for

Key specifications

How to use

Install the MD-1015 on a secure overhead fixing point and attach the mirror ball using appropriate chain and fixation material. Ensure the total suspended weight including chain and fixings does not exceed 3 kg. Connect the motor to a 230 V / 50 Hz supply using the supplied power plug. Before first use, have the installation checked and approved by a qualified expert. For professional or public-area use comply with EN DIN 15560 where applicable.

Recommendations

Always fit a secondary safety attachment independently from the motor’s primary fixings. Regularly inspect the chain, attachment points and motor for wear, and do not exceed the stated maximum load. For installations in discotheques and other public venues follow local safety regulations and have periodic professional inspections.
