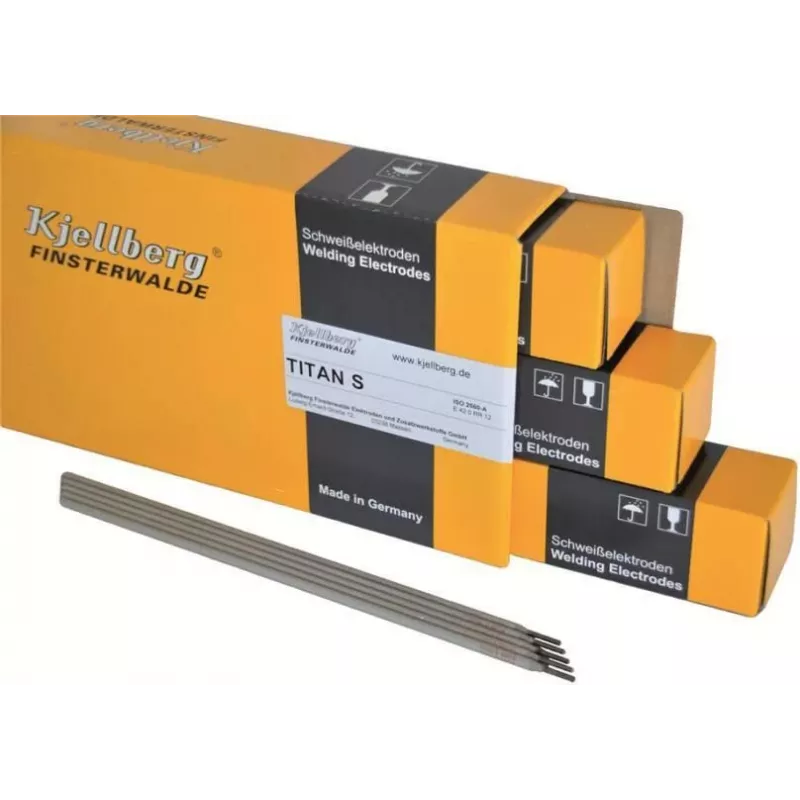

Kjellberg lasstaaf 3,25x350mm E 42 0 RR 12 Titan S (pak van 4,6 kg) 00.231.323

For welders handling unalloyed and low-alloy steels in general fabrication, the Kjellberg Titan S stick electrode delivers a smooth, stable arc and easy slag removal. The 3.25 mm diameter and 350 mm length suit a wide range of joint configurations, while the rutile thick coating ensures excellent re-ignition and good weld appearance.

Key specifications

• Electrode classification: E 42 0 RR 12 (EN ISO 2560-A)
• Diameter: 3.25 mm
• Length: 350 mm
• Coating type: Rutile thick
• Weld metal yield strength: min. 420 MPa
• Weld metal tensile strength: min. 500 MPa
• Weld metal elongation: min. 20%
• Impact strength: min. 47 J at 0°C

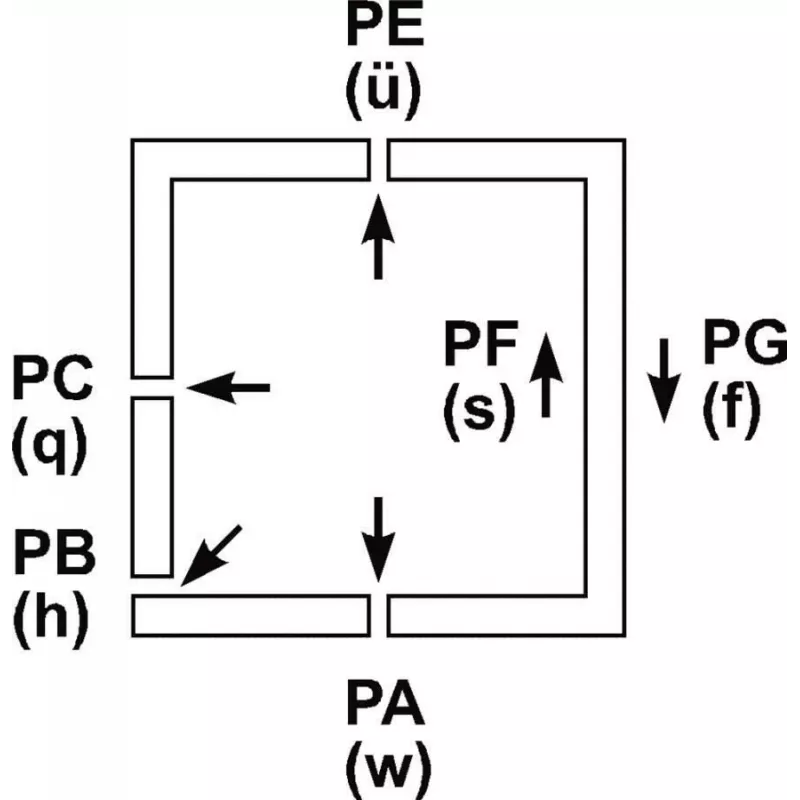

• Welding positions: PA, PB, PC, PD, PE (all except vertical down)
• Current type: AC, DC+
• Pack weight: 4.6 kg

Why choose it

The Titan S series is known for its excellent arc stability and easy slag detachability, reducing post-weld cleaning time. Its good re-ignition properties make it efficient for tack welding and intermittent welds.

Ideal use cases

• General steel construction
• Repair and maintenance welding
• Fabrication of unalloyed and low-alloy steel components
• Welding in all positions except vertical down

Good to know

Supplied in a 4.6 kg pack. Suitable for AC and DC+ welding power sources.
