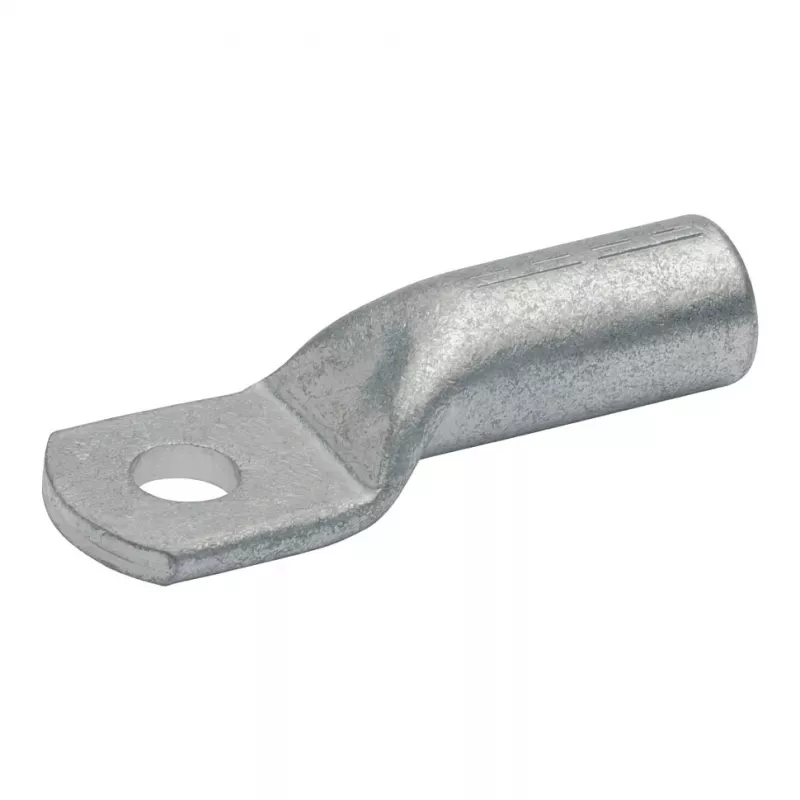

Klauke 104R8 buiskabelschoen, 25 mm², M8, vertind koper, ongeïsoleerd, krimpaansluiting

The Klauke 104R8 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion resistance and conductivity. This uninsulated lug is suitable for copper conductors with a cross-section of 25 mm² and features an M8 bolt hole diameter (8 mm). It complies with DIN 46235 standard and is ideal for crimp connections in industrial and commercial applications.

Advantages

Tin-plated surface provides superior corrosion protection and long-term reliability. Electrolytic copper ensures optimal electrical conductivity. Straight design allows for easy installation in tight spaces. Complies with DIN 46235 for consistent quality and performance.

Suitable for

• Copper conductors with 25 mm² cross-section
• Crimp connections in electrical panels, machinery, and power distribution
• Industrial and commercial wiring applications

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-section: 25 mm²
• Bolt Hole Diameter: 8 mm (M8)
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Standard: DIN 46235
• Insulation: Uninsulated
• Connection Method: Crimp
• Barrel Type: Standard Barrel
• Flange Shape: Standard
• Connection Angle: Straight

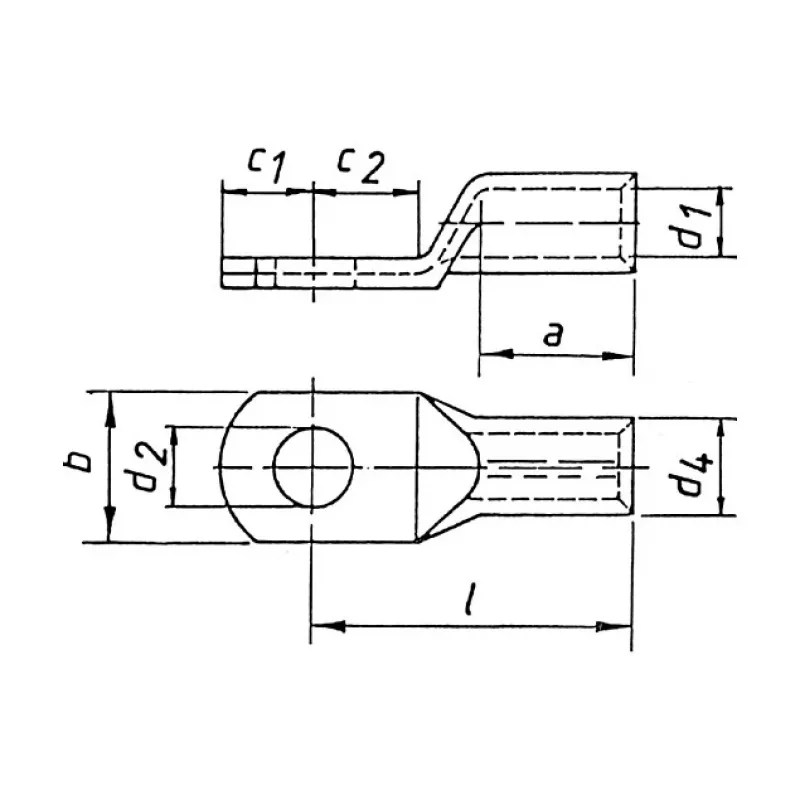

• Inner Barrel Diameter (d1): 7.5 mm
• Outer Barrel Diameter (d2): 10.5 mm
• Total Length (L): 45 mm
• Barrel Length (L2): 20 mm
• Palm Width (b): 15 mm
• Palm Thickness (s): 2.5 mm
• Colour: Metallic (Tin-plated)

Recommendations

For best results, use with a suitable crimping tool designed for tubular cable lugs. Ensure conductor is properly stripped and inserted before crimping.
