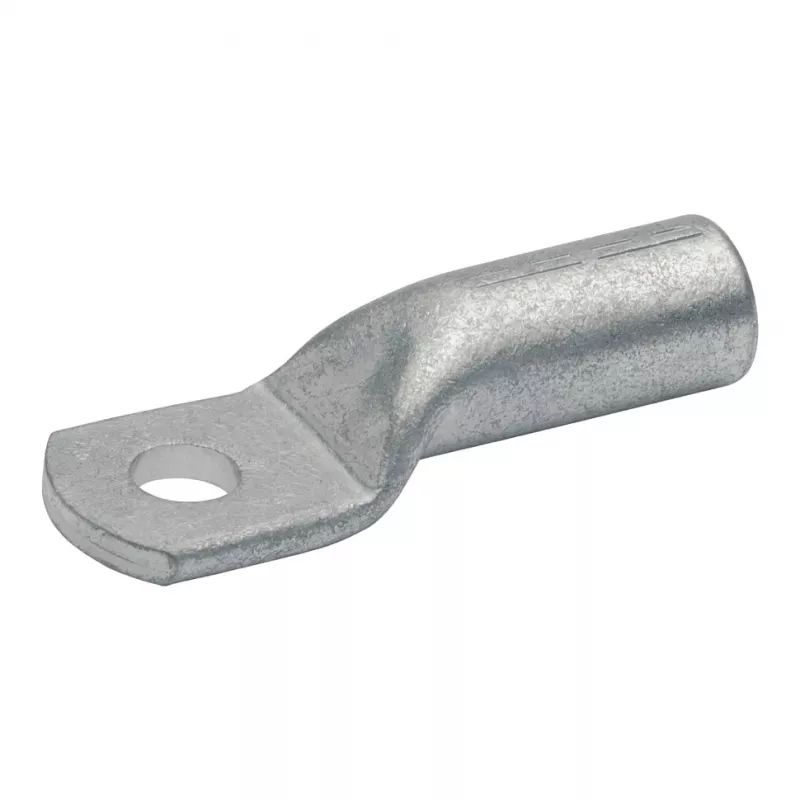

Klauke 108R12 kabelschoen 95mm² M12 DIN 46235 vertind koper

In high-current electrical installations, a weak connection point can lead to overheating, voltage drop, and even system failure. The Klauke 108R12 crimp cable lug eliminates that risk by providing a permanent, gas-tight connection between a 95 mm² copper conductor and an M12 bolt. Manufactured from electrolytic copper and galvanically tinned, it resists corrosion and ensures low contact resistance for decades of reliable service.

Who is it for

This cable lug is intended for professional electricians, panel builders, and maintenance technicians working on power distribution, industrial machinery, or renewable energy systems. It is ideal for applications where a secure and durable connection to a busbar or terminal stud is required, and where vibration or thermal cycling could loosen lesser connectors.

Main features

• Precision-formed barrel for 95 mm² conductors, ensuring full contact and optimal crimp results.

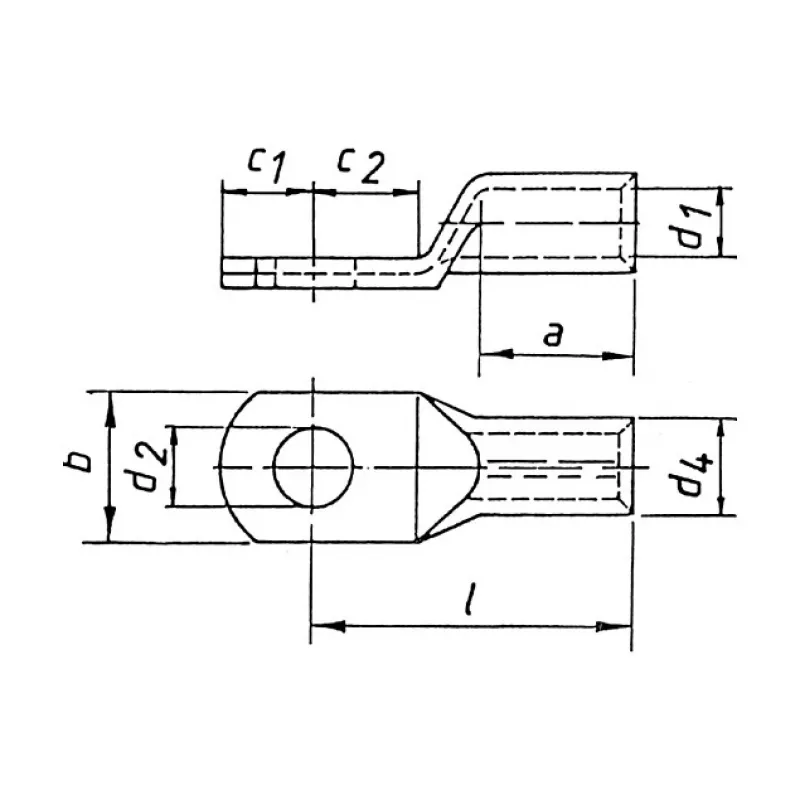

• M12 stud hole with standard DIN 46235 dimensions for perfect fit on common terminals.
• Electrolytic copper (E-Cu) body with galvanic tin plating for excellent conductivity and corrosion protection.
• Inspection hole allows visual confirmation that the conductor is fully inserted before crimping.
• Hexagonal crimp profile for a uniform, gas-tight connection that withstands mechanical stress.
• Halogen-free and RoHS compliant, safe for use in environmentally sensitive installations.

Specifications

• Product type: Crimp cable lug
• Standard: DIN 46235
• Cable cross-section: 95 mm²
• Bolt hole diameter: M12
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Galvanically tinned
• Connection method: Crimp
• Crimp form: Hexagonal
• Conductor material compatibility: Copper
• Maximum operating voltage: 1000 V
• Operating temperature range: -55°C to +150°C
• Inspection hole: Yes
• Flammability: Halogen-free
• RoHS compliance: Yes

Tips

Always use a calibrated crimping tool with the correct hexagonal die size for 95 mm² lugs. Strip the conductor to the exact length of the barrel, insert fully until visible through the inspection hole, and crimp in the center of the barrel. For outdoor or harsh environments, consider additional sealing with heat-shrink tubing to further protect the connection.
