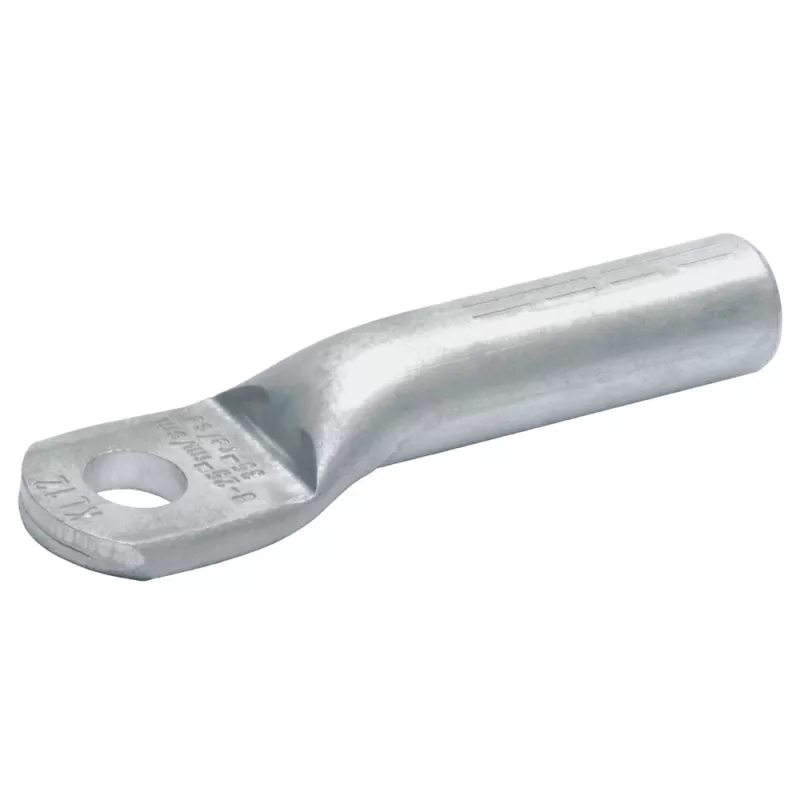

Klauke 209R12 aluminium kabelschoen 120 mm² M12 4 stuks

The Klauke 209R12 is a high-quality aluminium cable lug designed for reliable and durable connections in electrical installations. Manufactured by Klauke, a trusted brand in professional crimping technology, this tube lug is ideal for aluminium conductors with a cross-section of 120 mm². The lug features a single bolt hole with a diameter of M12 (13 mm) and is suitable for crimp connections. Supplied in a pack of 4 pieces, it ensures efficient and secure terminations for various applications.

Advantages

Made from high-grade aluminium, the 209R12 offers excellent conductivity and corrosion resistance. Its straight design and standard tube lug profile facilitate easy installation and consistent performance. The untreated bare aluminium surface ensures optimal electrical contact when crimped. With a robust construction, this cable lug provides long-lasting reliability in demanding environments.

Suitable for

• Electrical power distribution systems
• Industrial control panels
• Renewable energy installations (solar, wind)
• Automotive and marine electrical systems
• General wiring and cable termination tasks

Key specifications

• Product Type: Cable Lug
• Material: Aluminium
• Conductor Cross-Section: 120 mm²
• Bolt Hole Diameter: M12 (13 mm)
• Number of Bolt Holes: 1
• Connection Method: Crimp
• Conductor Compatibility: Aluminium
• Lug Design: Tube Lug, Standard
• Overall Length: 91 mm
• Palm Width: 28 mm
• Barrel Outer Diameter: 18 mm
• Barrel Inner Diameter: 14.7 mm
• Shape: Straight
• Surface Finish: Untreated / Bare Aluminium
• Pack Quantity: 4 pieces
• Series: Klauke 209R

Recommendations

For optimal performance, use with Klauke crimping tools and dies designed for aluminium lugs. Ensure proper stripping and cleaning of the conductor before crimping. Always follow manufacturer guidelines and applicable electrical codes.
