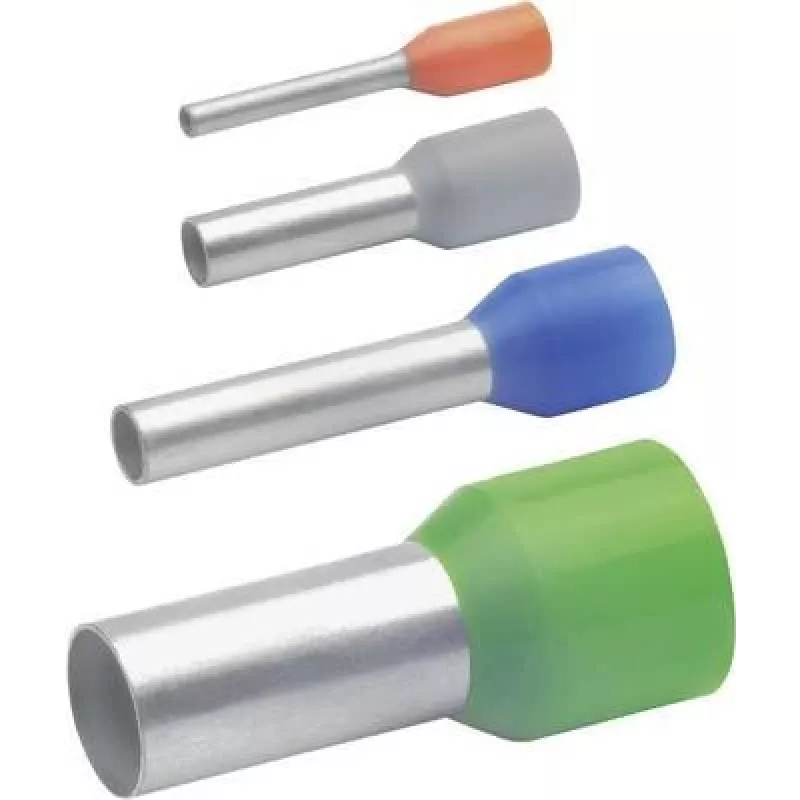

KLAUKE adereindhuls 0,5mm²/14mm grootverpakking GR 169/O (GR169O)

With a 0.5 mm² cross-section and 14 mm pin length, this KLAUKE ferrule handles fine-stranded conductors with precision. The flared polyamide insulation guides every wire strand into the tin-plated copper barrel, cutting installation time and preventing strand fold-back.

Overview

The KLAUKE GR 169/O is a bulk pack of 1000 insulated ferrules engineered for reliable terminations in control cabinets, terminal blocks, and industrial wiring. Each ferrule features a grey polyamide sleeve that is halogen-free and flame-retardant to UL 94 V-2, plus an electrolytic copper barrel with tin plating for excellent conductivity and corrosion resistance. The funnel-entry insulation simplifies insertion of fine-stranded conductors, while the 14 mm pin length provides ample contact surface for screw or spring clamp terminals. Compliant with DIN 46228 Part 4, these ferrules are RoHS compliant and rated for operating temperatures from -40°C to +105°C at up to 600 V.

What stands out

• Flared insulation entry for fast, snag-free wire insertion
• Tin-plated electrolytic copper barrel ensures low contact resistance
• Halogen-free polyamide sleeve meets strict fire safety requirements
• Bulk pack of 1000 pieces keeps production lines stocked
• Wide temperature range suits demanding industrial environments

Technical details

• Wire cross-section: 0.5 mm²
• Pin length: 14 mm
• Insulation colour: Grey
• Insulation material: Polyamide (PA), halogen-free
• Conductor material: Electrolytic copper, tin-plated
• Insulation type: Flared (funnel-entry)
• Standard: DIN 46228 Part 4
• Operating temperature: -40°C to +105°C
• Max voltage rating: 600 V
• Flammability rating: UL 94 V-2
• RoHS compliant: Yes
• Packaging: Bulk pack, 1000 pieces

Our verdict

For high-volume panel builders and machine wiring, the KLAUKE GR 169/O delivers consistent quality and hassle-free assembly. The flared entry and halogen-free insulation make it a dependable choice where safety and speed matter.
