Klauke adereindhuls 2,5 mm² 10 mm vertind koper buis-adereindhuls DIN 46228

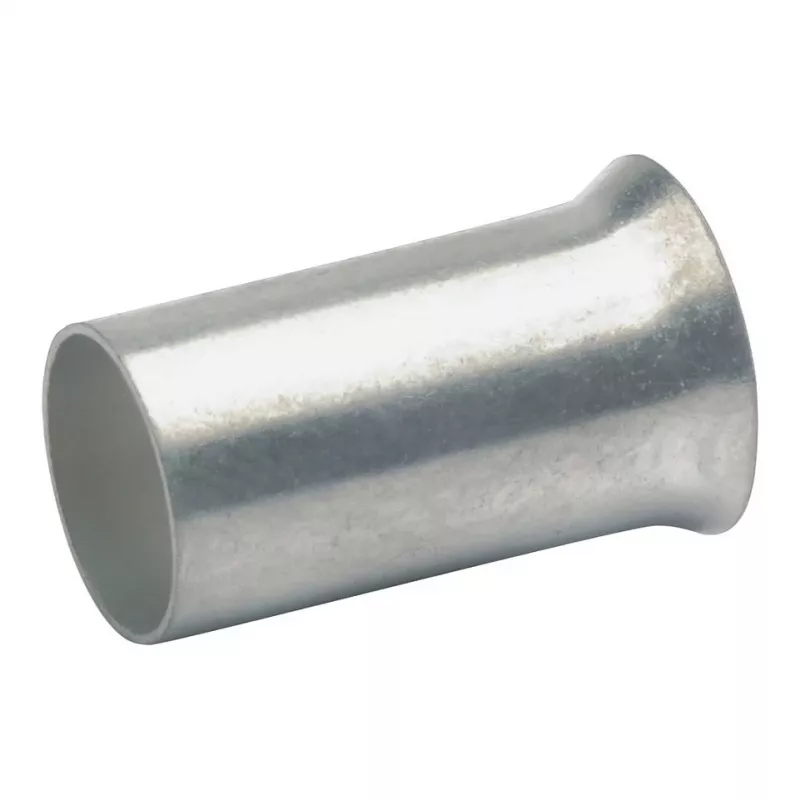

The Klauke 7310V ferrule is a high-quality tube ferrule designed for reliable termination of flexible conductors. Manufactured from electrolytic copper with a tin-plated surface, it ensures excellent corrosion protection and low electrical resistance. Compliant with DIN 46228 Part 1, this ferrule is ideal for professional electrical installations where secure crimp connections are required.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Electrolytic copper ensures excellent conductivity. Precise dimensions guarantee a perfect crimp connection every time. Halogen-free and RoHS compliant for environmentally conscious installations.

Suitable for

• Terminating flexible conductors in control cabinets
• Industrial electrical installations
• Automation and machinery wiring
• Building services engineering

Key specifications

• Conductor cross-section: 2.5 mm²
• Contact length: 10 mm
• Material: Electrolytic copper (E-Cu), tinned
• Standard: DIN 46228 Part 1
• Connection method: Crimp
• Ferrule type: Tube ferrule
• Colour: Metallic (silver-grey)
• Temperature resistance: Up to 105°C
• Packaging quantity: 100 pieces

Recommendations

For best results, use with a calibrated crimping tool suitable for 2.5 mm² ferrules. Ensure the conductor is stripped to the correct length before insertion.
