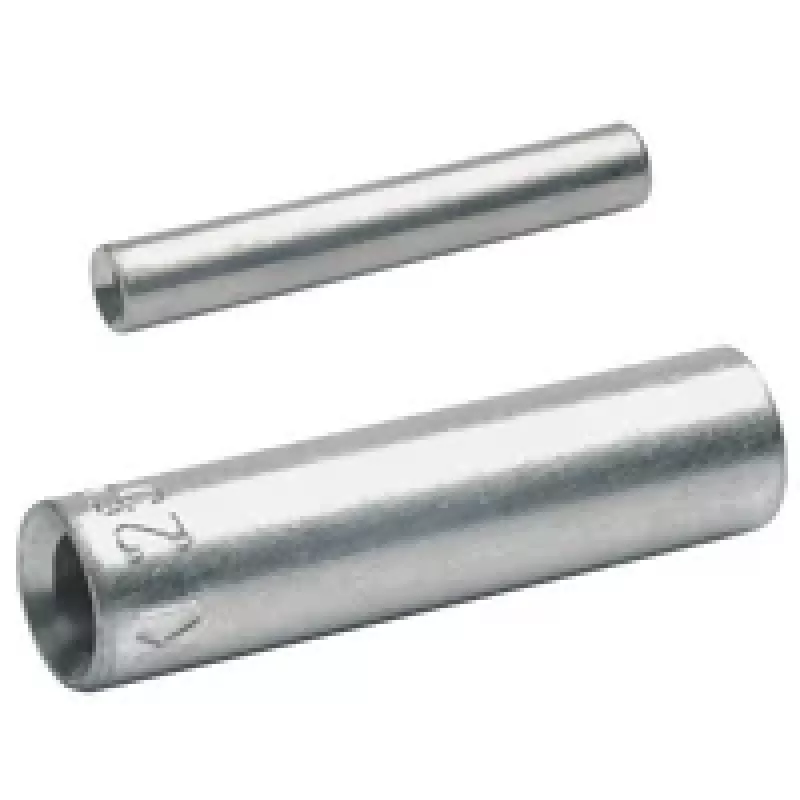

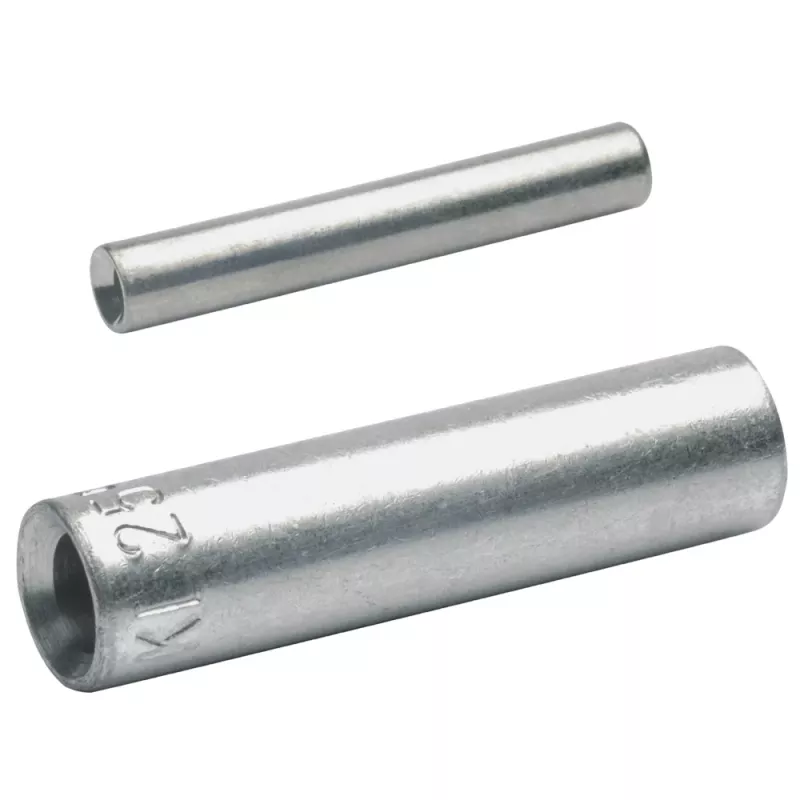

KLAUKE SV1525 ongeïsoleerde stootverbinder, 1,5-2,5 mm², vertind koper, 100 stuks

The KLAUKE SV1525 is a high-quality uninsulated butt connector designed for reliable and durable connections of copper conductors. Made from electrolytic copper with a tin-plated surface, it offers excellent corrosion resistance and conductivity. Suitable for both solid and stranded conductors, this connector is ideal for electrical installations, automotive wiring, and industrial applications.

Advantages

• Tin-plated copper ensures long-lasting corrosion resistance and low contact resistance.
• Suitable for a wide range of conductor cross-sections from 1.5 mm² to 2.5 mm².
• Easy and secure crimp connection for professional results.
• Pack of 100 pieces provides ample supply for multiple projects.

Suitable for

• Connecting two copper conductors in electrical installations
• Automotive and marine wiring
• Industrial control panels and machinery
• Repair and maintenance of electrical systems

Key specifications

• Connector Type: Butt Connector / Connecting Sleeve
• Insulation: Uninsulated
• Conductor Cross-Section (Min): 1.5 mm²
• Conductor Cross-Section (Max): 2.5 mm²
• Material: Electrolytic Copper
• Surface Treatment: Tin-Plated
• Outer Diameter: 3.9 mm
• Length: 15 mm
• Color: Metallic (Silver)
• Quantity per Pack: 100 pieces
• Connection Method: Crimp
• Shape: Tubular
• Application: For connecting two copper conductors
• Compatibility: Solid and Stranded Conductors
• Corrosion Resistance: Yes (due to tin-plating)
• Temperature Range: -55°C to +150°C
• Standard Compliance: DIN 46234

Recommendations

For optimal performance, use with a suitable crimping tool designed for uninsulated butt connectors. Ensure conductors are stripped to the appropriate length before crimping.
