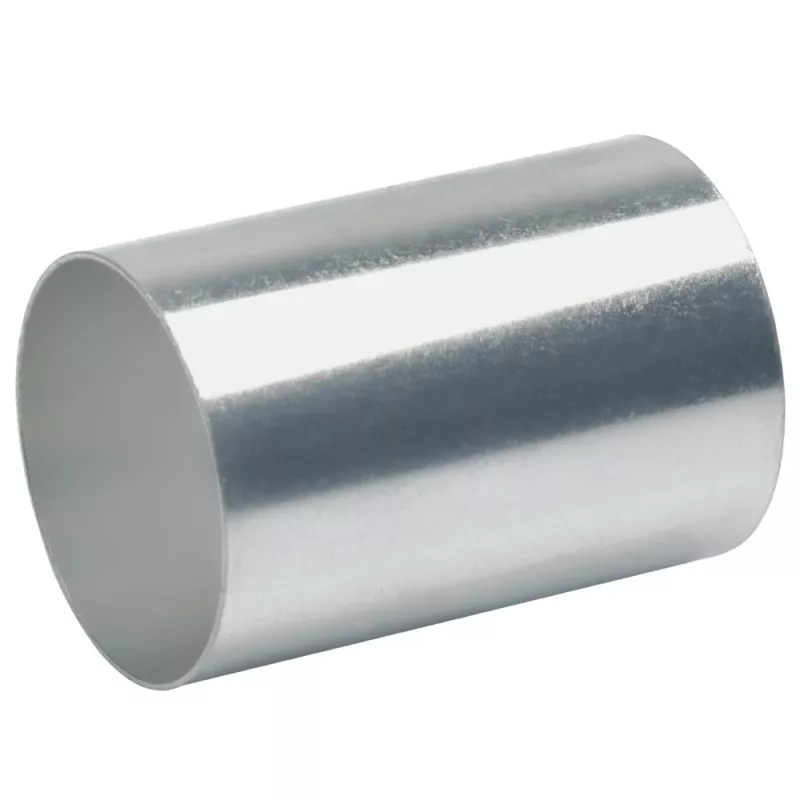

Klauke VHR70 vertinde koperen buiskabelschoen, 70 mm², M10 boutgat

The Klauke VHR70 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, it offers excellent corrosion resistance and conductivity. Suitable for copper conductors up to 70 mm², this crimp connector meets DIN 46235 standards and is ideal for professional electrical installations.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Electrolytic copper ensures optimal electrical conductivity. Complies with DIN 46235 for standardized performance. Halogen-free and suitable for temperatures from -50°C to +150°C.

Suitable for

• Copper conductors up to 70 mm²
• Crimping connections in electrical panels, machinery, and power distribution
• Applications requiring high corrosion resistance
• Industrial and commercial electrical installations

Key specifications

• Conductor cross-section: 70 mm²
• Bolt hole size: M10 (10.5 mm diameter)
• Material: Electrolytic copper, tin-plated
• Overall length: 50 mm
• Palm width: 19 mm
• Tube inner diameter: 10.6 mm
• Tube outer diameter: 13.5 mm
• Voltage rating: Up to 1000 V
• Temperature range: -50°C to +150°C
• Standard: DIN 46235

Recommendations

Use with appropriate crimping tool for secure installation. Ensure conductor is clean and properly stripped before crimping.
