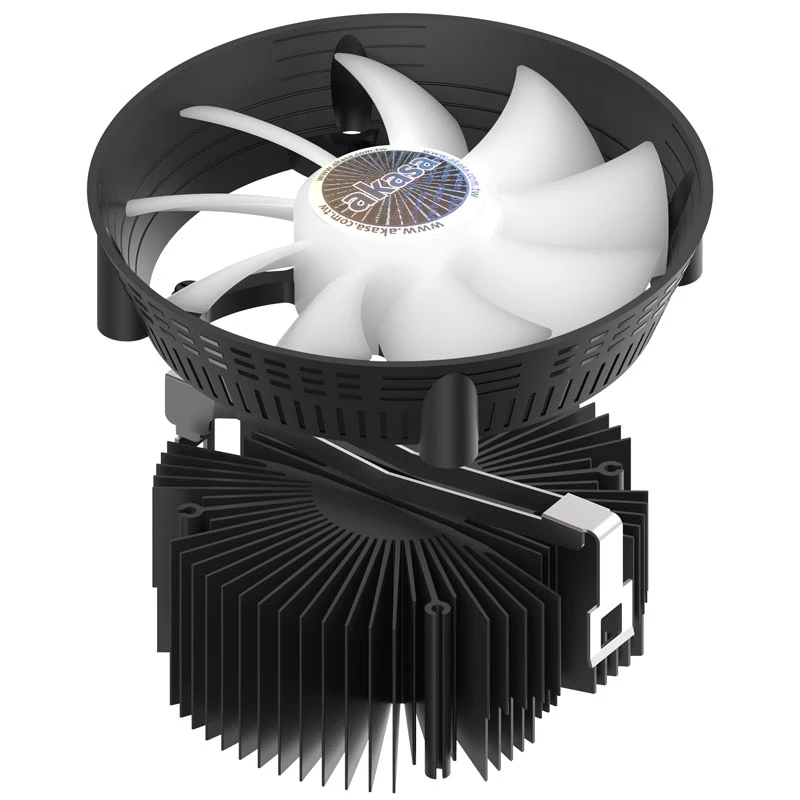

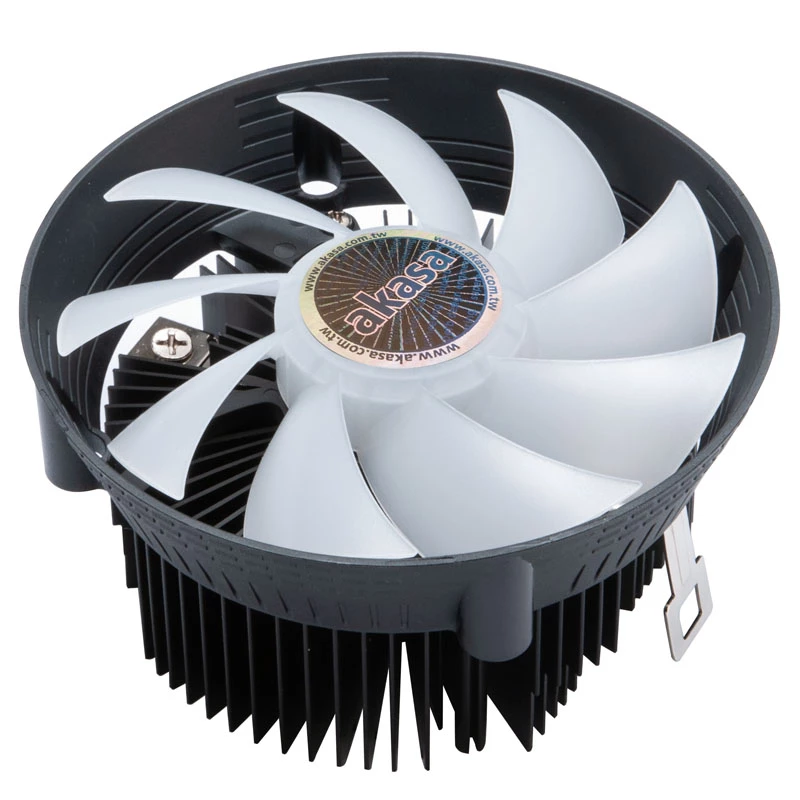

Koeler Akasa Vegas Chroma AM processor 12 cm zwart wit

The Akasa Vegas Chroma AM is a 120 mm processor cooler with addressable RGB fan blades and a black anodised aluminium heatsink. It provides targeted airflow to the CPU and motherboard components, supports 5V addressable LED headers and is rated for up to 95 W TDP. The cooler measures 120 × 120 × 63 mm, operates at 12 V and combines compact dimensions with RGB illumination and PWM fan control for quiet operation.

Advantages

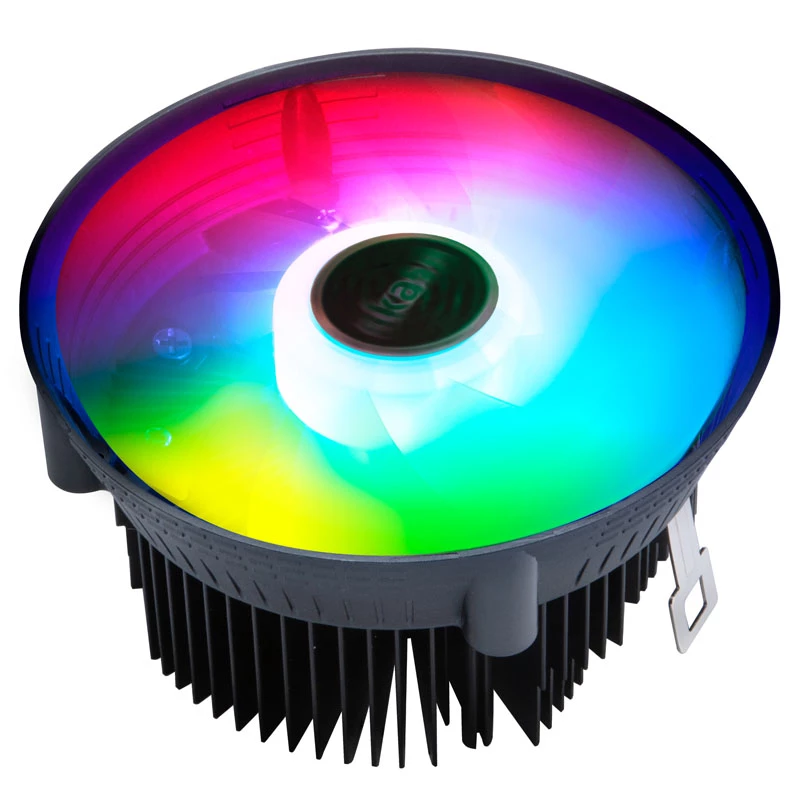

Addressable RGB fan blades offer up to 16.8 million colour options and can be synced with compatible lighting software. The black anodised aluminium heatsink improves heat dissipation while the funnel-shaped fan frame concentrates airflow to the CPU area. PWM control allows intelligent fan speed adjustment between 500 and 1800 RPM for a balance of cooling performance and low noise.

Suitable for

• Small and mid-sized desktop builds where a compact 120 mm cooler is required
• AM4 and AM3+ based systems up to 95 W TDP
• Systems where addressable RGB lighting integration is desired

Key specifications

• Model: Akasa Vegas Chroma AM (AK-CC1106HP01)
• Fan diameter: 120 mm
• Dimensions: 120 × 120 × 63 mm
• Fan speed: 500–1800 RPM (PWM)
• Voltage: 12 V
• TDP support: up to 95 W
• Supported sockets: Socket AM4, Socket AM3+
• Lighting: 5V addressable RGB (addressable LED pin header)
• Weight: 0.34 kg

How to use

Install the cooler on a compatible AM4 or AM3+ socket following the motherboard and cooler mounting instructions. Connect the fan to a PWM-capable fan header for automatic speed control and connect the addressable RGB cable to a 5V ARGB header on the motherboard or a compatible controller to enable lighting. Ensure the cooler is mounted securely and that thermal paste is applied between the CPU and heatsink according to the manufacturer's guidance.

Recommendations

Use with motherboards that provide a 5V addressable RGB header to access lighting features. For systems with CPUs above 95 W TDP, choose a higher-capacity cooler. Regularly clean the fan and heatsink to maintain airflow and cooling efficiency.
