KONTAKT SIMON 10 module witte wisselschakelaar met schroefklemmen 10AX 250V

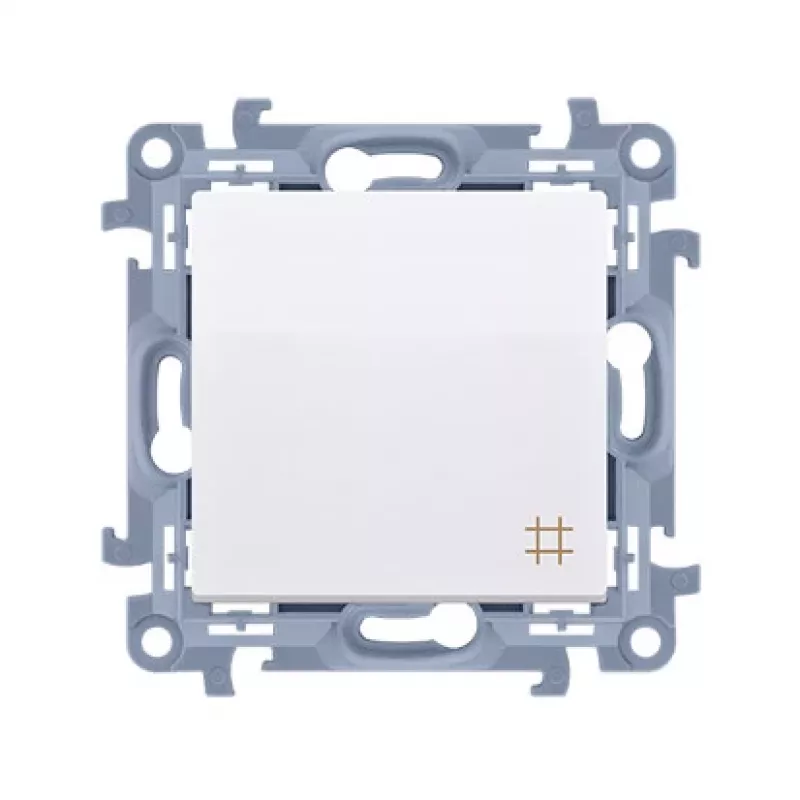

The KONTAKT SIMON 10 Module White Intermediate Cross Switch is a high-quality electrical switch designed for controlling lighting circuits from multiple locations. Ideal for staircases, long corridors, or large rooms, this intermediate switch allows for three-way or more switching configurations when used with two-way switches. Manufactured by KONTAK-SIMON, a trusted brand in electrical installations, this switch combines reliability with a clean, modern design.

Advantages

This intermediate cross switch offers versatile control of lighting points from three or more positions, enhancing convenience and energy efficiency. Its screw terminals ensure secure and stable connections, while the flush mounting design provides a seamless integration into any wall. The thermoplastic (PC/ABS) housing guarantees durability and long-lasting performance. Rated at 10AX and 250V AC, it is suitable for standard household and commercial lighting loads.

Suitable for

• Staircase lighting control
• Long corridors and hallways
• Large rooms with multiple entry points
• Commercial and residential indoor installations

Key specifications

• Switch Type: Intermediate (Cross Switch)
• Series: Simon 10
• Colour: White
• Current Rating: 10AX
• Voltage Rating: 250V AC
• Terminal Type: Screw Terminals
• Mounting Type: Flush Mounting
• Number of Gangs: 1-gang
• Number of Modules: 1 module
• Material: Thermoplastic (PC/ABS)
• IP Rating: IP20
• Application: Indoor
• Compliance: CE
• Connection Points: 4 (for intermediate switching)
• Operating Temperature: -5°C to +35°C
• Backlight Compatibility: No

Recommendations

For optimal performance, pair this intermediate switch with compatible two-way switches from the Simon 10 series. Ensure proper installation by a qualified electrician. This switch is not suitable for outdoor use or environments with high humidity.
