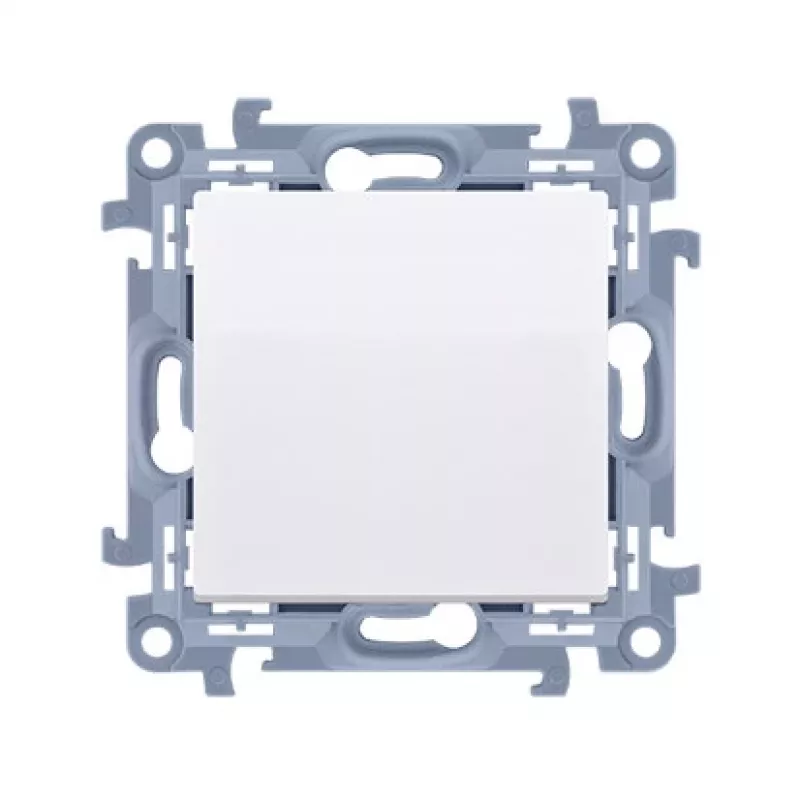

KONTAK-SIMON Simon 10 eenpolige schakelaarmodule wit 10AX 250V zelfklemend

Electrical switch module from the Simon 10 series, engineered for reliable single-pole control in residential and commercial installations. Its self-clamping terminals ensure fast, screwless wiring, while the robust thermoplastic construction guarantees long-term durability.

Advantages

The Simon 10 switch module delivers a perfect blend of safety, convenience, and performance. The self-clamping terminals accept solid conductors up to 2.5 mm², cutting installation time significantly and providing a secure, maintenance-free connection. Rated at 10AX, it handles both resistive and inductive loads, making it suitable for lighting and small motor circuits. The white, halogen-free housing blends seamlessly into any décor, and the rocker actuation offers a crisp, positive feel. With a mechanical endurance of 40,000 cycles, this switch is built to last.

Suitable for

• Indoor lighting control in homes, offices, and commercial spaces
• Flush-mounted installations in standard wall boxes
• Use with solid conductors up to 2.5 mm²
• Applications requiring a single-pole, 1-way switch

Key specifications

• Brand: KONTAK-SIMON
• Series: Simon 10
• Type: Single-pole (1-way) switch module
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Terminal type: Self-clamping (screwless)
• Mounting: Flush-mounted
• Material: High-quality thermoplastic, halogen-free
• IP rating: IP20
• Number of modules: 1
• Colour: White
• Operating temperature: -5°C to +40°C
• Mechanical durability: 40,000 cycles
• Compliance: CE

Recommendations

For a clean, modern installation, pair this switch module with matching Simon 10 cover plates and frames. Always ensure the circuit is de-energized before installation. Use solid copper conductors within the specified range for optimal terminal performance.
