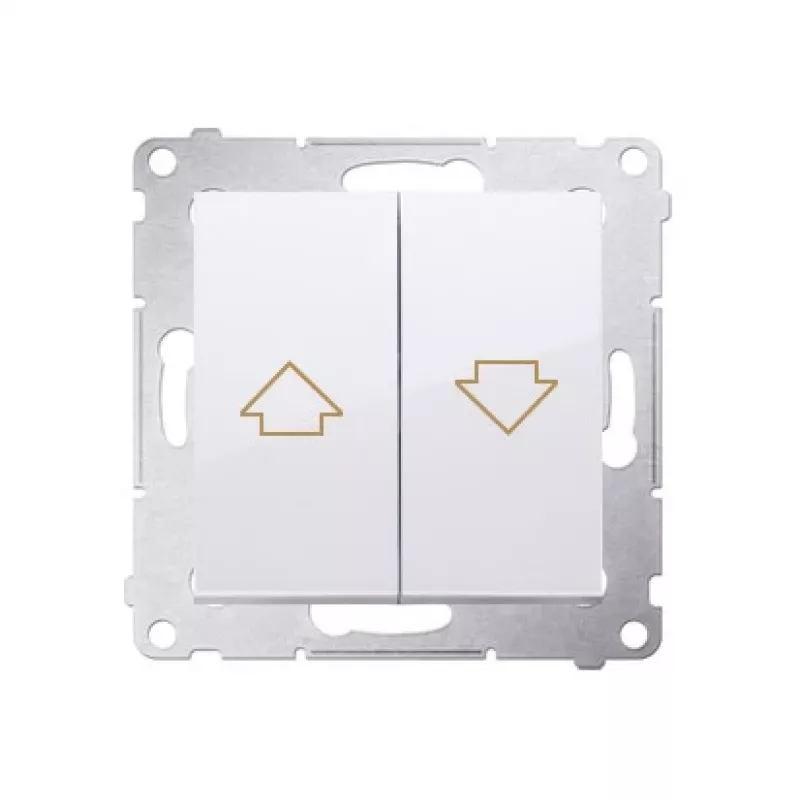

KONTAK-SIMON Simon 54 rolluik-tastermodule wit, elektrische vergrendeling, veerklemmen, 10A 250V

Control roller shutters, blinds, and awnings with this Simon 54 shutter push button module. Its electrical interlock prevents conflicting up/down commands, protecting the motor from damage. Spring terminals allow fast, tool-free installation, and the compact 1-module design fits standard flush-mounted frames.

Advantages

The module features a durable PC/ABS plastic housing in white, blending with most interiors. Two clearly marked arrow buttons provide intuitive operation. The electrical interlock is a key safety feature, ensuring only one direction is active at a time. Rated for 10A at 250V AC, it suits a wide range of shutter and blind motors.

Suitable for

• Residential roller shutters and blinds
• Commercial window coverings
• Awnings and sunscreens
• Projects requiring simple push-button control

Key specifications

• Product type: Shutter push button module
• Series: Simon 54
• Colour: White
• Number of buttons: 2 (up/down)
• Button markings: Arrows
• Interlock type: Electrical interlock
• Terminal type: Spring terminals
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting: Flush-mount module
• Module width: 1 module
• Housing material: PC/ABS plastic
• IP rating: IP20
• Operating temperature: -5°C to +35°C
• Certifications: CE

Recommendations

Always verify that the rated voltage and current of the motor do not exceed the module's specifications. Installation should be performed by a qualified electrician in accordance with local regulations.
