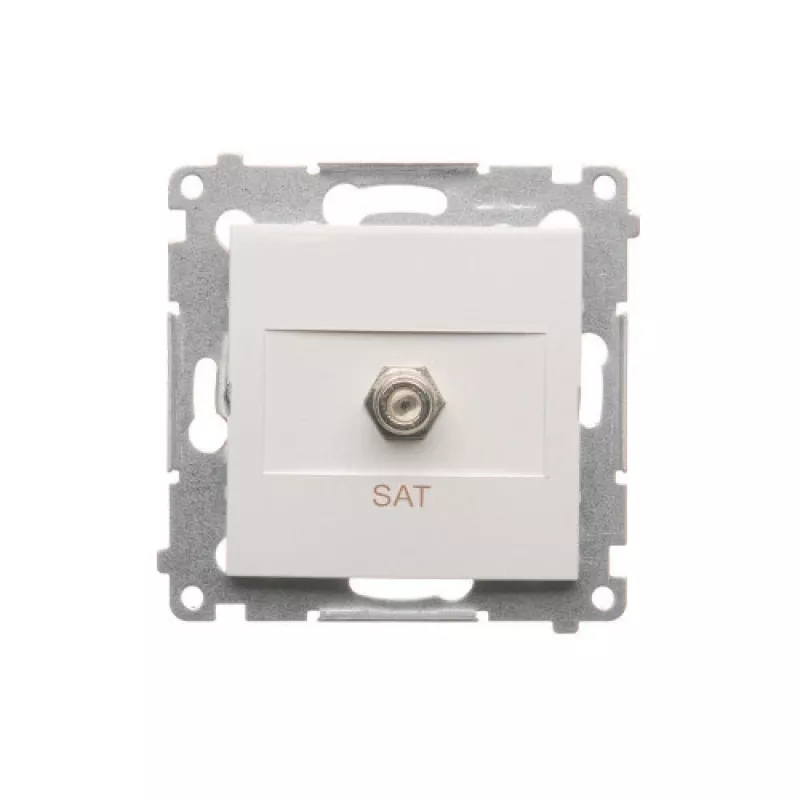

KONTAK-SIMON SIMON 54 satelliet-TV-aansluitmodule F-type wit

In a modern apartment or single-family home, the satellite TV socket is the discreet yet essential interface between the antenna system and the receiver. The KONTAK-SIMON SIMON 54 module in white fits flush into standard Simon 54 frames, providing a clean, professional termination for coaxial cabling. Its F-type connector ensures a secure, low-loss link for satellite, cable, and terrestrial signals, making it a dependable choice for both new installations and retrofits.

Key specifications

• Product type: Satellite TV socket module (F-type)
• Series: Simon 54
• Colour: White
• Mounting: Flush mount, modular system component
• Connector: F-type, 1 output
• Impedance: 75 Ohm
• Frequency range: 5 – 2400 MHz
• Insertion loss: < 2 dB
• Shielding effectiveness: Class A
• Material: Thermoplastic (PC/ABS), halogen-free
• IP rating: IP20
• Operating temperature: 0°C to +40°C
• Standards: EN 50083-4, EN 60728-11

Why choose it

The module's wide frequency coverage up to 2400 MHz supports satellite IF, terrestrial, and cable bands, ensuring compatibility with most modern reception systems. Its Class A shielding minimises interference, while the robust PC/ABS housing withstands daily use. The halogen-free construction adds an extra layer of safety in residential environments.

Ideal use cases

• Connecting a satellite receiver in a living room or media wall
• Distributing TV signals in multi-room installations
• Replacing outdated or damaged antenna sockets in Simon 54 frames
• New builds where a uniform, modular wiring system is specified

Good to know

This module is designed exclusively for Simon 54 series frames and cover plates. It is not a standalone wall plate; a compatible frame and cover are required for complete installation. The F-type connector provides a screw-on connection for reliable signal transfer.
