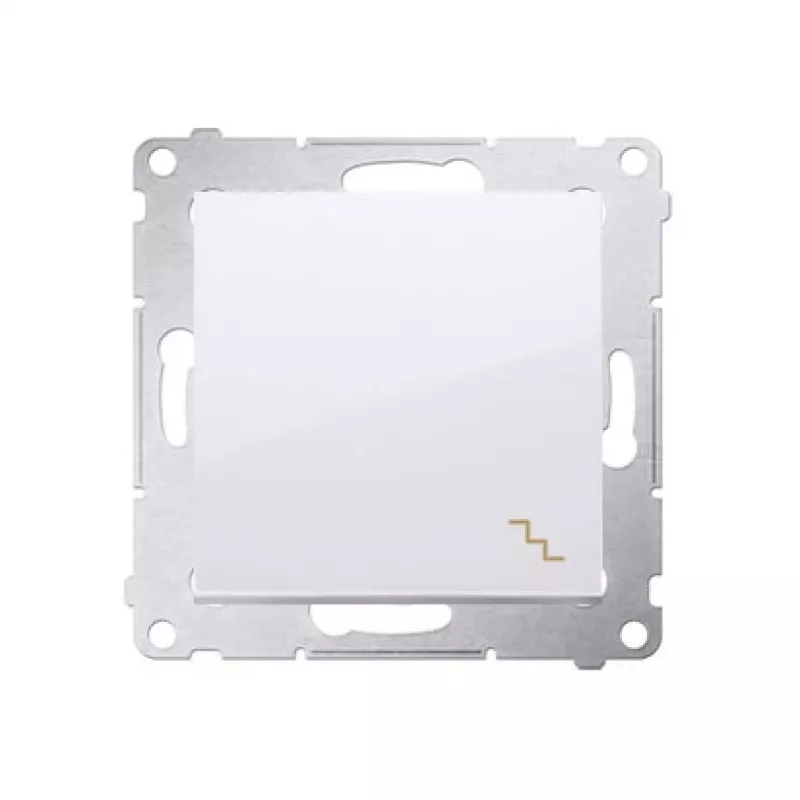

KONTAK-SIMON Simon 54 universele trappenhuis-schakelmodule, wit, 10AX 250V, veerklemmen

Imagine a three-storey house or a long corridor where you want to turn on the lights from any point and turn them off from another. The KONTAK-SIMON Simon 54 universal staircase switch module (DW6.01/11) is designed for exactly that. It functions as an intermediate change-over switch in multi-way lighting circuits, enabling you to control lights from three or more locations. With a white finish and flush-mount design, it blends discreetly into any standard wall box.

Key specifications

• Universal staircase switch (intermediate switch) for 3-way or multi-way control
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Spring terminals for fast and secure wiring (up to 2 x 2.5 mm²)
• Flush mounting – depth: 28-30 mm
• White thermoplastic housing, halogen-free
• IP20 protection rating
• Operating temperature: -5°C to +40°C
• Compatible with Simon 54 frames and cover plates

Why choose it

This switch module offers a compact and reliable solution for controlling lighting from multiple positions. The spring terminals ensure a tool-free connection and hold the wires firmly, reducing installation time and maintenance. Its universal design allows it to be used as a normal two-way switch or as an intermediate switch, giving you flexibility. The thermoplastic material is durable and halogen-free, meeting modern safety and environmental standards.

Ideal use cases

• Multi-level staircases in residential and commercial buildings
• Long hallways with multiple entrances
• Large rooms where the same light needs to be switched from different doors
• Home automation and smart lighting setups using momentary switches

Good to know

This module is part of the Simon 54 range from KONTAK-SIMON. It must be used with compatible frames and cover plates from the same series. The module is CE certified and is not designed to be used as a stand-alone unit. Always carefully check the wiring diagram and ensure the circuit is de-energised before installation.
