KONTAK-SIMON SIMON 54 wit rolluikschakelaarmodule 1-0-2 met pijlen, veerklemmen, 10A 250V

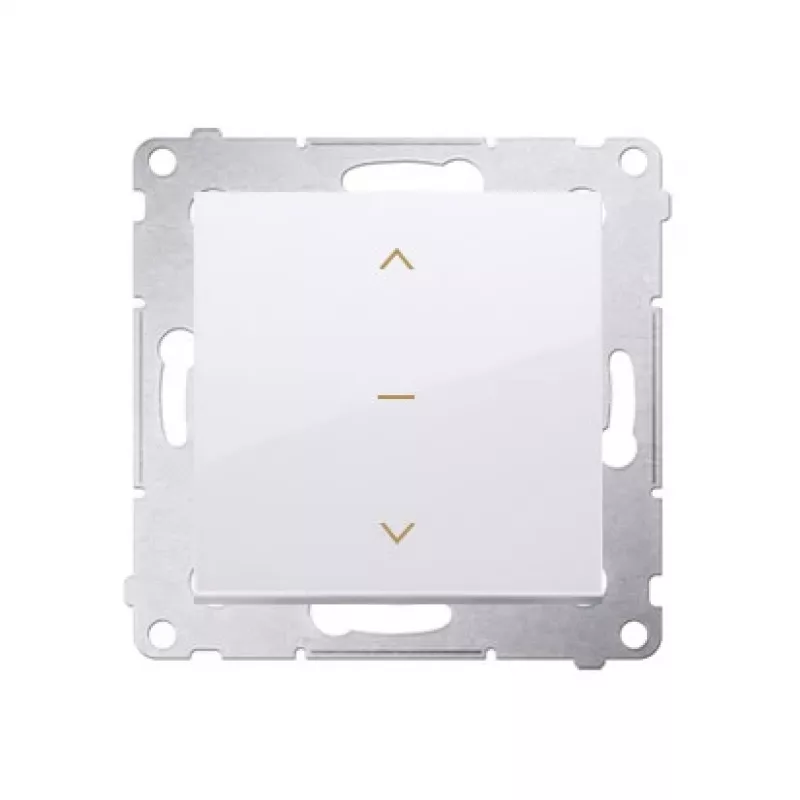

In a modern apartment, controlling roller shutters from a single wall point is essential for comfort and energy efficiency. The KONTAK-SIMON SIMON 54 module is a white roller shutter switch with a 1-0-2 control pattern and arrow markings, designed for flush mounting in standard electrical boxes. It features spring clamp terminals for fast, screwless wiring and is rated for 10A at 250V AC, making it suitable for direct control of shutter motors. The module integrates seamlessly with the SIMON 54 series, offering a clean, minimalist look for residential and light commercial installations.

Key specifications

• Type: Roller shutter switch module
• Control pattern: 1-0-2 with arrow markings
• Colour: White
• Terminal type: Spring clamps (screwless)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Number of modules: 1
• Mounting: Flush-mounted
• Material: Plastic housing

Why choose it

This module simplifies installation with its spring clamp terminals—no screws to tighten, just insert the wire and you're done. The clear 1-0-2 arrow markings make operation intuitive: up, stop, down. Its white finish blends with any decor, and the compact single-module size fits standard frames. Built to handle typical shutter motor loads, it ensures reliable switching for years.

Ideal use cases

• Residential roller shutter control from a single point
• Replacement for worn or outdated shutter switches
• New installations in SIMON 54 series frames
• Light commercial spaces needing simple shutter operation

Good to know

The module is part of the SIMON 54 system, so it pairs with matching frames and covers (sold separately). It is designed for indoor use in dry locations. Always ensure the circuit is de-energized before installation and follow local electrical codes.
