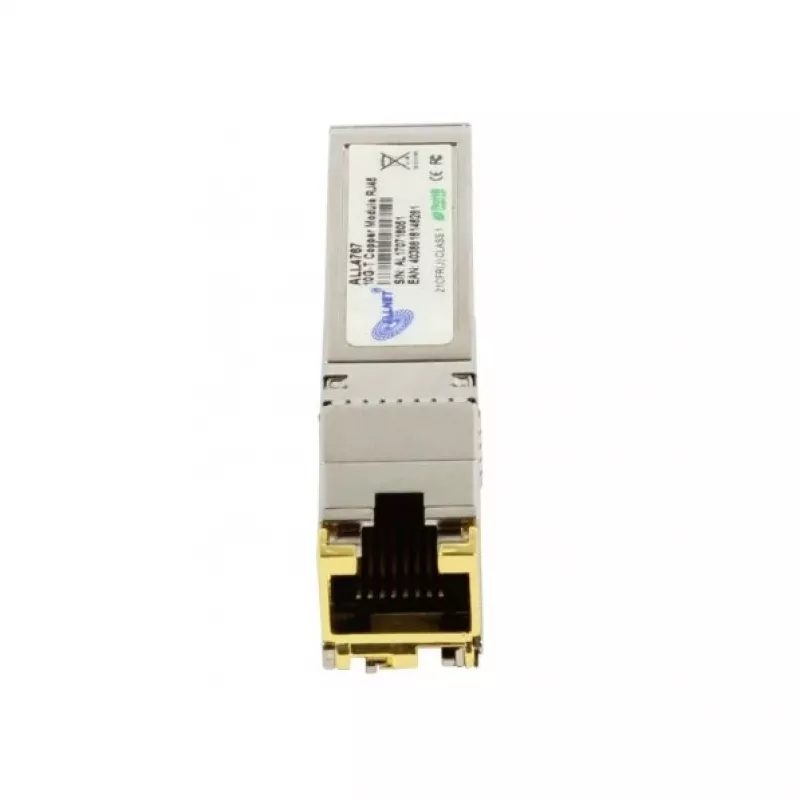

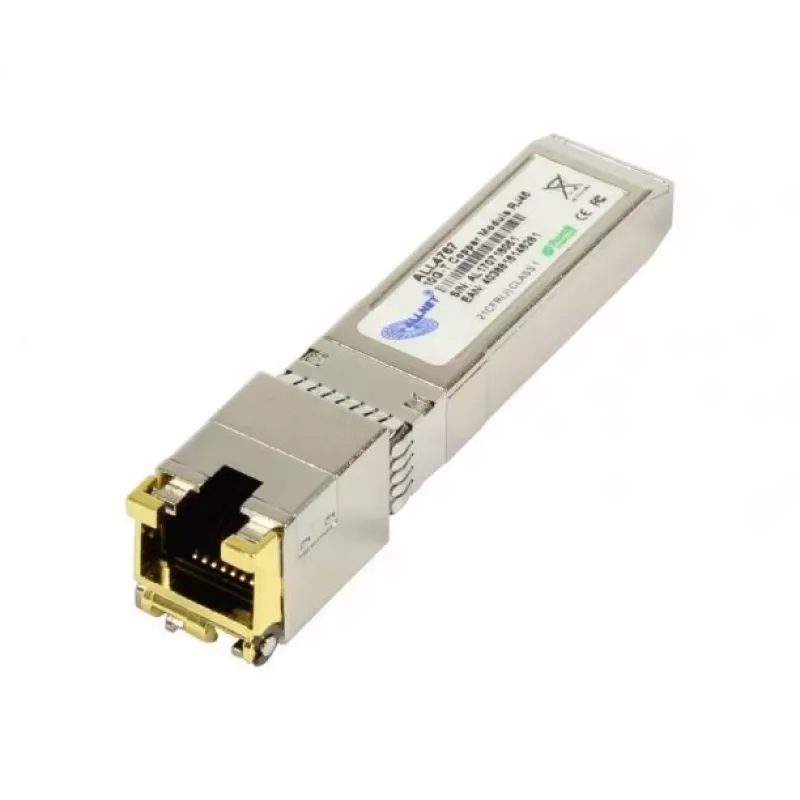

Koper-transceivermodule ALLNET ALL4767

The ALLNET ALL4767 is a copper mini-GBIC transceiver module designed for 10 Gbit/s network links. It provides a compact, hot-pluggable solution for integrating copper-based 10G connections into switches, routers and servers that accept mini-GBIC form-factor modules. The module operates from a 3.3 V supply and is finished in a grey housing with small footprint dimensions suitable for dense installation environments.

Advantages

This mini-GBIC transceiver supports a maximum data transfer rate of 10000 Mbit/s and delivers stable, low-latency connectivity for high-bandwidth applications. Its compact dimensions allow efficient use of port density on networking equipment, while the copper interface removes the need for optical components in short-reach 10G deployments. The module's standardized mini-GBIC interface enables broad compatibility with compatible devices that accept this form factor.

Key specifications

• Interface type: mini-GBIC (copper)
• Maximum data transfer rate: 10000 Mbit/s
• Operating voltage: 3.3 V
• Product colour: Grey
• Form factor dimensions: approximately 13.4 mm width × 13.7 mm height

How to use

Install the transceiver into a compatible mini-GBIC slot on the network device while the host equipment is powered according to the manufacturer's hot-plug guidelines. Use appropriate Category 6A or better copper cabling and connectors rated for 10G operation to connect to the remote device. After insertion, verify link status and negotiated speed on the host device and check for proper operation in the network management interface.

Recommendations

For reliable 10G performance, use certified 10G copper cables and ensure connectors and patch panels meet 10G standards. Place modules in well-ventilated racks to avoid thermal stress and consult the host device documentation for any compatibility lists or required firmware updates.
