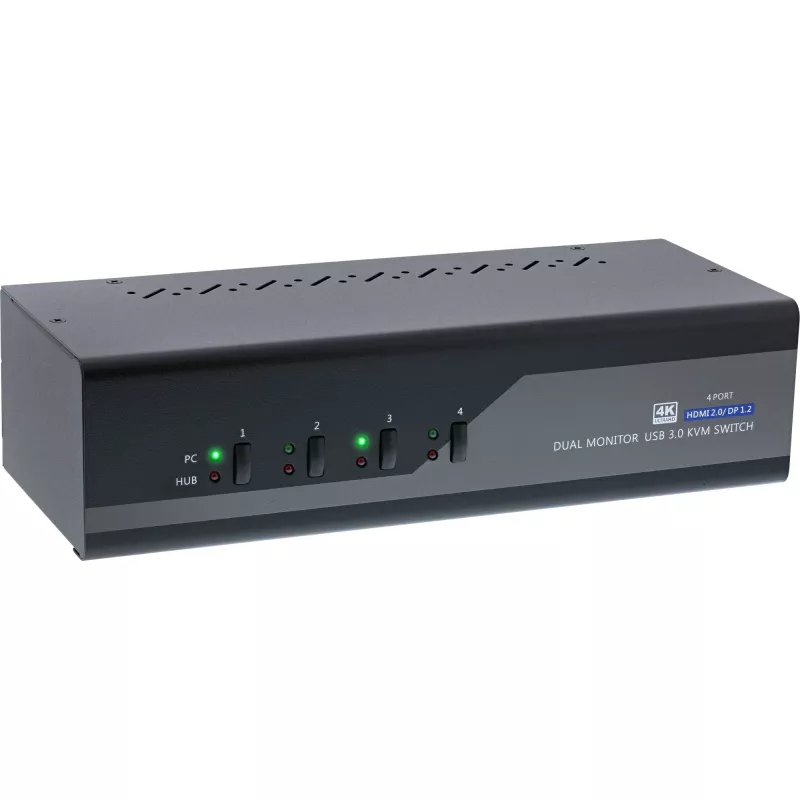

KVM Desktop Switch InLine 62644I 4-poorts dual-monitor DP+HDMI 4K USB 3.0 audio

The InLine KVM Desktop Switch was specially developed for the use of two monitors (1x HDMI, 1x DisplayPort) on four multimedia computers. With the InLine KVM Desktop Switch you can completely control four PCs with only one USB keyboard, mouse and two monitors. This dual monitor HDMI/DP KVM switch supports resolutions of up to 3840x2160 (4K) at 60Hz for maximum comfort when adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor HDMI/DP USB KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features 2-channel stereo sound for full sound functionality. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.

4-way KVM switch

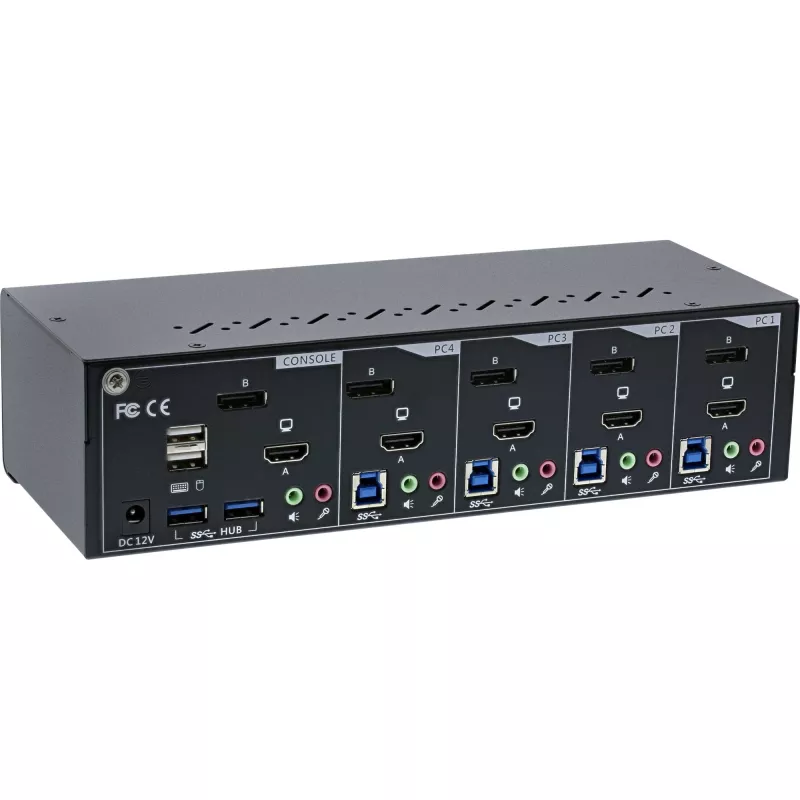

Four computers on one console (consisting of 1x DisplayPort monitor, 1x HDMI monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type-A ports for peripheral devices
Audio support for microphone and speakers
Maximum video resolution: 3840x2160 per monitor

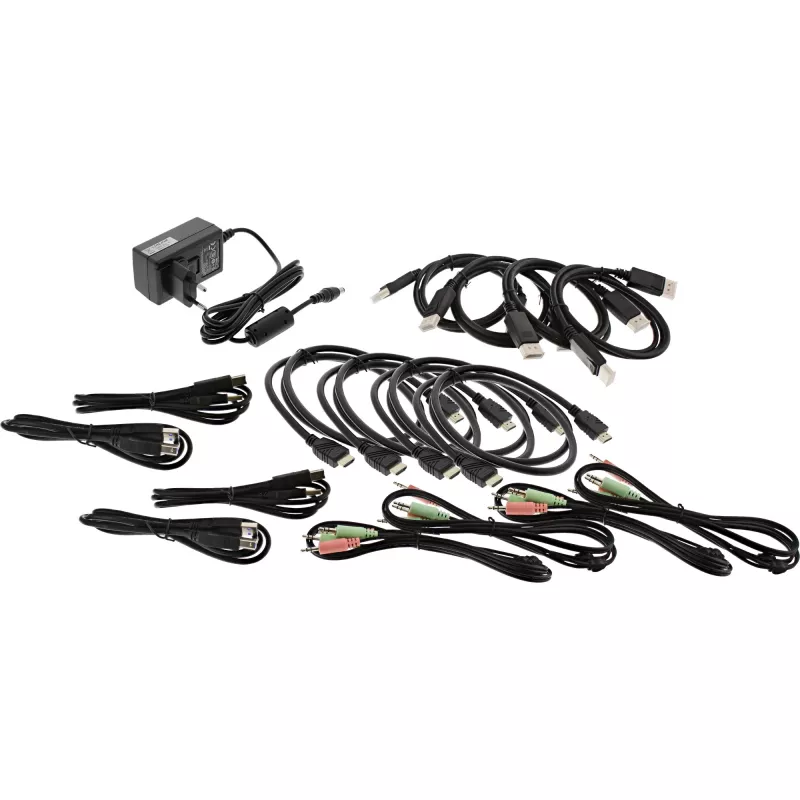

Content of delivery:
1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort + HDMI
4x KVM cable set
1x plug power supply DC 12V
1x instruction manual

Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

InLine KVM Desktop Switch, 4-port, Dual Monitor, DP+HDMI, 4K, USB 3.0, Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey. Power source: DC, Input voltage: 12 V. Width: 100 mm, Depth: 250 mm, Height: 65 mm

How to use

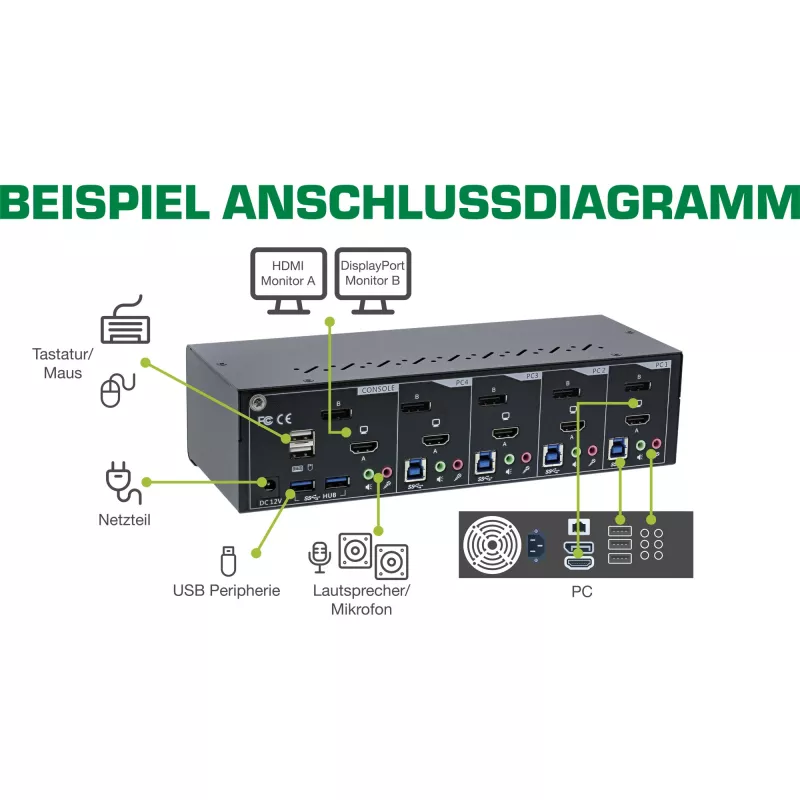

Connect the DisplayPort and HDMI outputs of each computer to the corresponding console monitors via the supplied KVM cables, then connect the USB keyboard and mouse to the console USB ports and plug peripheral devices into the available USB 3.0 ports. Attach the DC 12 V power supply and power on the unit. Use the device controls to switch between the four connected computers; hotkey switching requires the keyboard to be connected to the designated console USB port (not via hub ports).

Recommendations

Designed for office and home office use as well as monitoring and control tasks. Not recommended for gaming peripherals with programmable special keys or for gaming monitors operating at 120 Hz or higher. For reliable hotkey operation, connect the keyboard directly to the console USB port rather than through USB hub ports.
