KVM-switch ATEN CL1308N rackmontage zwart PS/2 USB VGA 1U

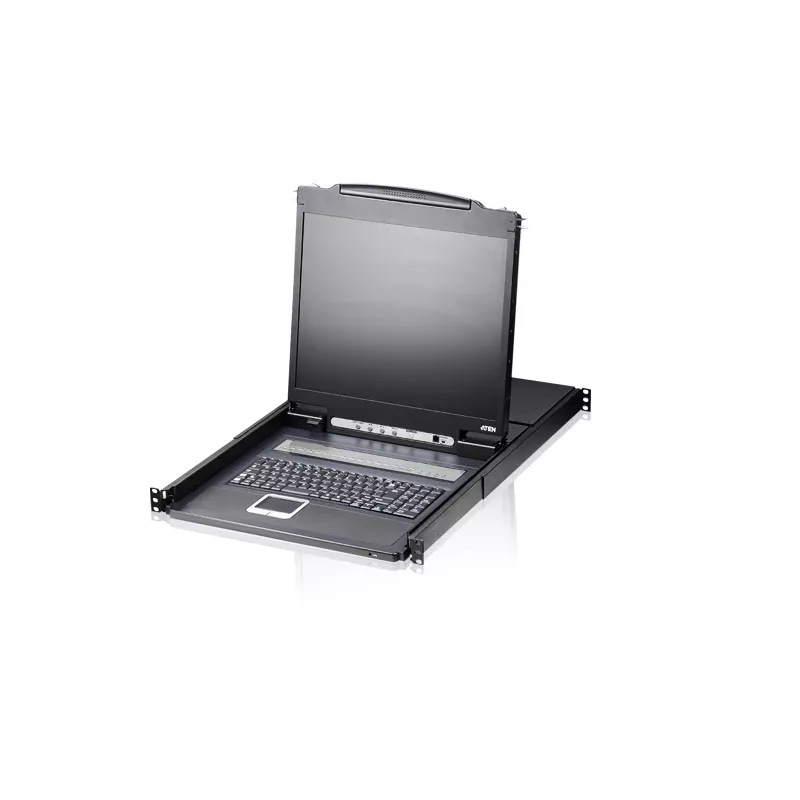

The ATEN CL1308N is a 1U rack-mountable LCD KVM switch that integrates a 19-inch LED-backlit display, full keyboard and touchpad into a sliding console. It provides control of multiple servers from a single console and supports both PS/2 and USB keyboard/mouse connections as well as VGA video output. The unit is housed in a metal/plastic chassis and accepts AC power with a wide input range (100–240 V).

Advantages

The CL1308N saves rack space by combining monitor, keyboard and touchpad into a single 1U sliding module, reducing the need for separate peripherals. It supports up to 8 direct computer ports and allows cascading up to 8 additional switches to control up to 128 computers from one console. The switch requires no special software for keyboard interception and offers multiple switching methods including front-panel push-buttons, keyboard hotkeys and a multilingual on-screen display (OSD).

Suitable for

• Server rooms and data centers with limited rack space
• IT administrators managing multiple servers via a single console
• Environments requiring both PS/2 and USB peripheral support
• Setups needing cascading to expand controlled systems up to 128 computers

Key specifications

• Model: ATEN CL1308N (MPN: CL1308N-NORDIC, EAN: 5715063528075)
• Form factor: 1U rack-mountable sliding console
• Display: 19" LED-backlit LCD
• Video output: VGA (analog)
• Maximum resolution: 1280 x 1024 (native), analog support up to 1920 x 1200
• Computer interfaces: PS/2 and USB for keyboard and mouse
• Number of direct ports: 8 (supports cascading up to 8 additional switches)
• Power: AC input 100–240 V
• Chassis: metal and plastic

How to use

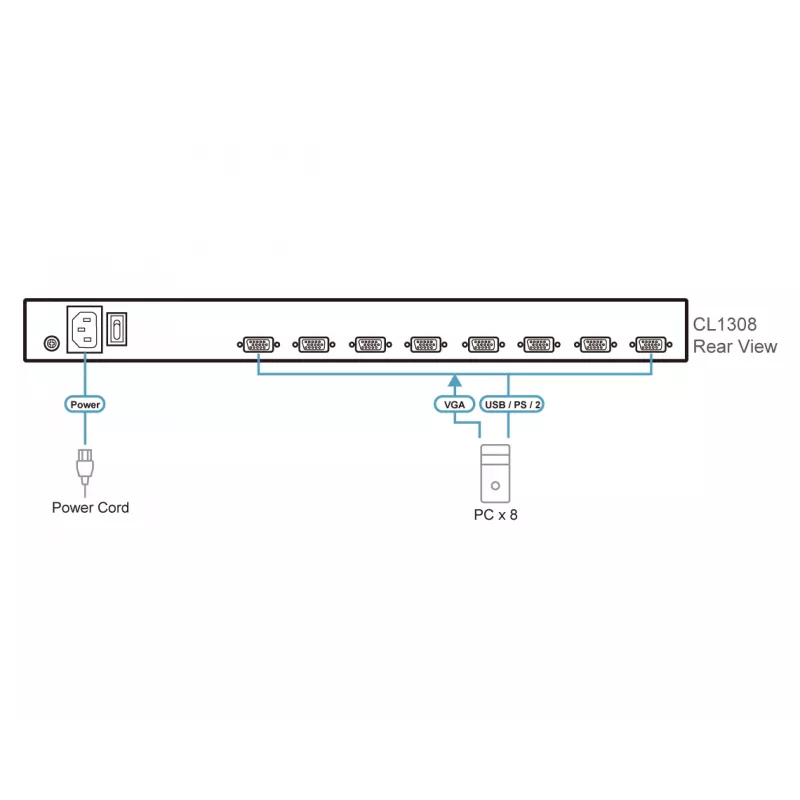

Install the CL1308N into a 1U rack space using the sliding housing and, if required, an optional rack-mount kit. Connect each server to the corresponding KVM ports using the appropriate PS/2 or USB cables and VGA video cables. Power the unit from an AC outlet within the specified voltage range. Control connected computers from the integrated keyboard, touchpad and 19" display. Switch between systems using front-panel buttons, keyboard hotkeys or the on-screen display menus.

Recommendations

For reliable operation, route and secure KVM and video cables to avoid strain; use compatible rack-mount accessories when required. If you plan to cascade multiple switches, plan cable runs and port assignments to maintain clear identification of connected servers.
