KVM-switch ROLINE 1 gebruiker 2 pc's DisplayPort met USB-hub

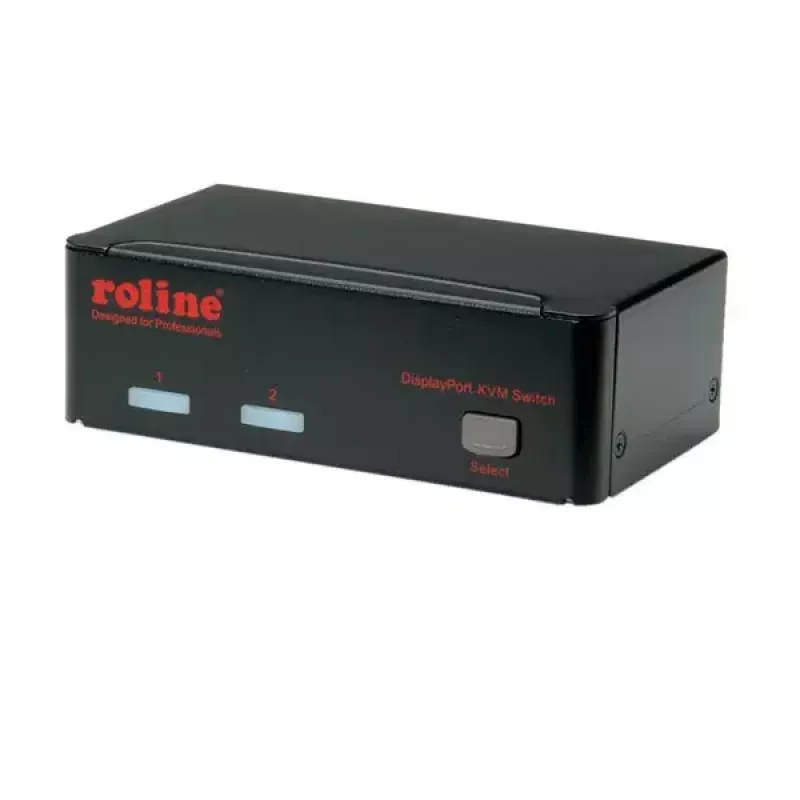

ROLINE 1 User 2 PCs DisplayPort KVM Switch enables a single user to control two computers with one DisplayPort monitor, one USB keyboard and one USB mouse. The switch includes an integrated one‑port USB 2.0 hub so a USB peripheral can be shared between the two connected PCs. Housed in a compact black metal case, it is designed for desktop or rack-adjacent setups where space is limited.

Advantages

The device supports DisplayPort video and allows easy switching between computers via a front-panel push button or configurable hot-key, with no software installation required. Its metal enclosure provides durability while the built-in USB hub adds convenient peripheral sharing. Small dimensions (40 × 125 × 70 mm) make it easy to place on a desk or install in tight spaces.

Suitable for

• Home office setups where one user needs to access two PCs
• Small offices and IT workstations requiring shared keyboard, mouse and monitor
• Environments where quick switching between two computers is needed without extra software

Key specifications

• Brand: ROLINE
• Model / MPN: 14.01.3327
• EAN: 7611990189083
• Controlled computers: 2
• Video port type: DisplayPort (supports up to 2560 × 1600 according to source data)
• Keyboard / Mouse ports: USB
• Integrated USB hub: 1 × USB 2.0 port for shared peripheral
• Colour: Black
• Dimensions: 40 × 125 × 70 mm

How to use

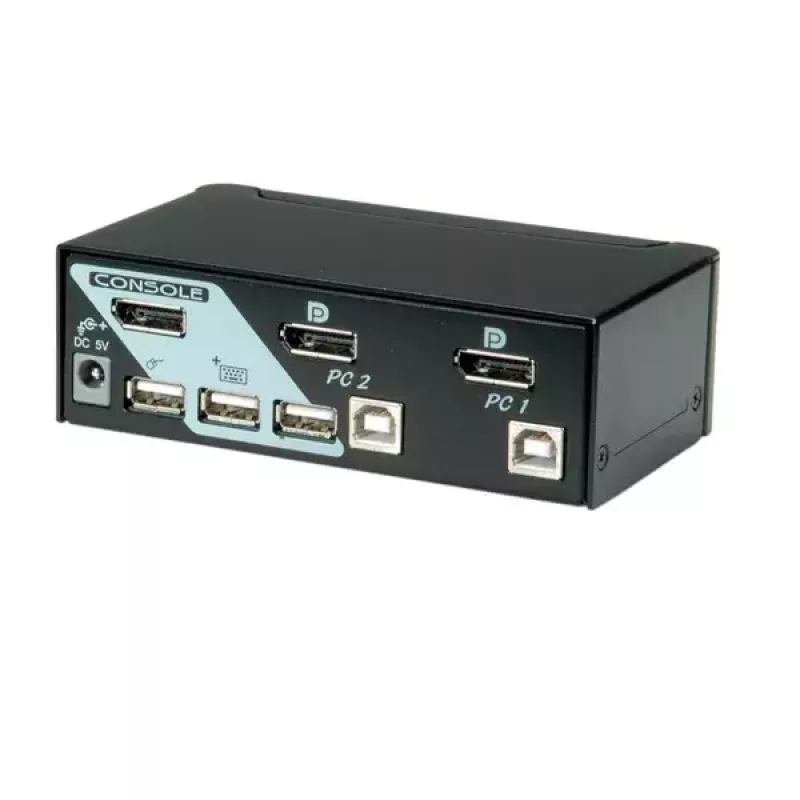

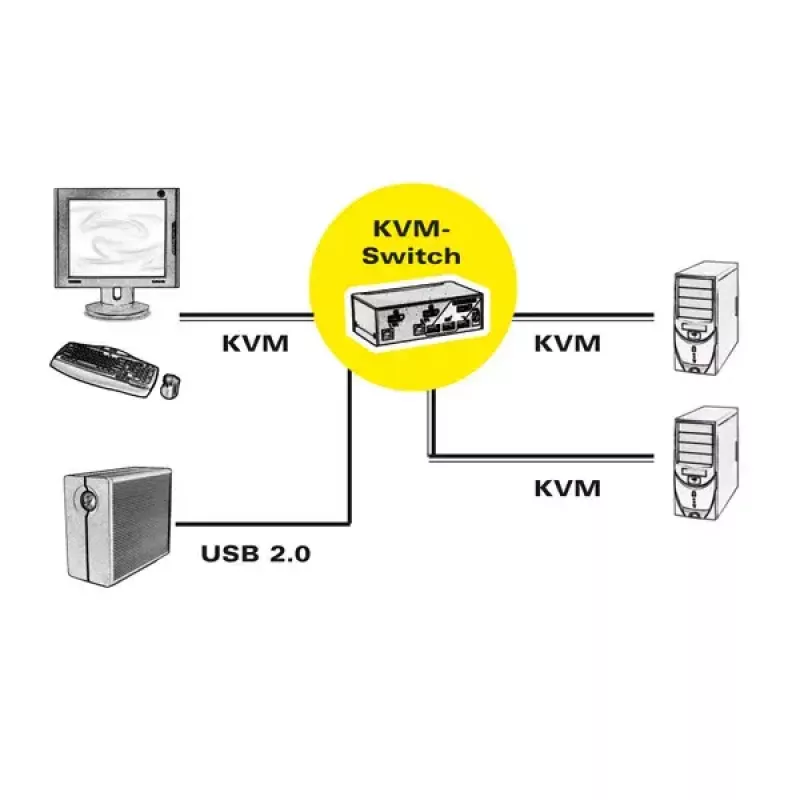

Connect the DisplayPort cable, USB keyboard and USB mouse from your console to the switch, then connect the corresponding DisplayPort and USB cables to each of the two computers. Use the front-panel push button or the hot-key sequence to toggle control between the two connected PCs. No additional drivers or software are required; the switch operates using standard USB and DisplayPort protocols.

Recommendations

For optimal video quality, use DisplayPort cables rated for the required resolution and ensure connected computers support the target output. Place the unit on a stable surface and avoid obstructing ventilation around the metal housing.
