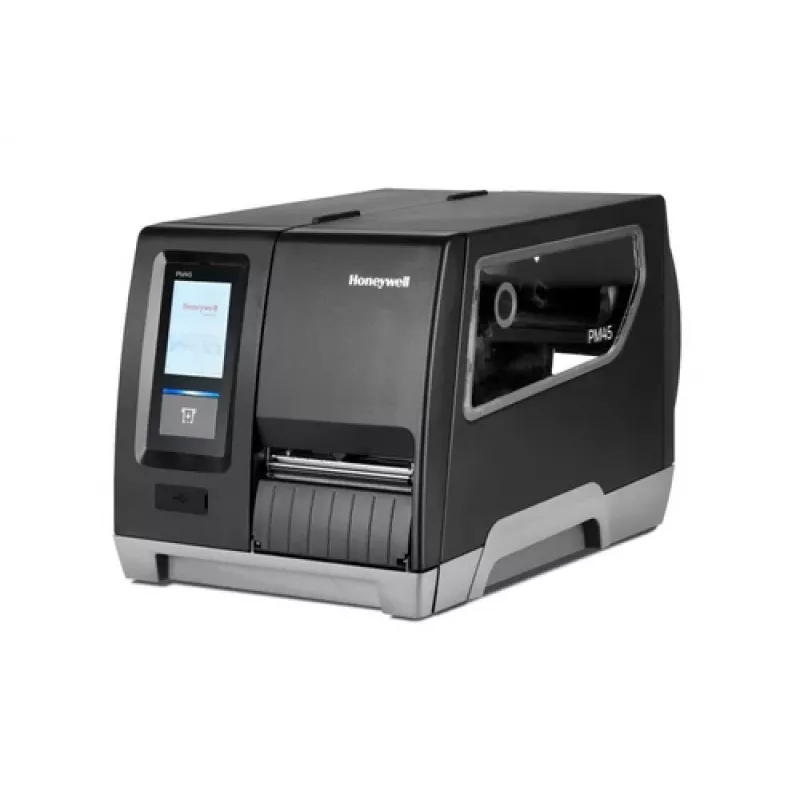

Labelprinter Honeywell PM45 thermotransfer 203x203 DPI 350 mm/s bedraad draadloos

The Honeywell PM45 is an industrial thermal transfer label printer designed for high-volume, track-and-trace printing in manufacturing, warehousing, distribution and supply chain environments. It delivers up to 203 x 203 DPI print resolution and print speeds up to 350 mm/sec (around 14 ips), with a maximum printable width of 108 mm. The PM45 supports wired network connections and optional WWAN and other interfaces, and accepts a wide range of media including ribbons with a 1-inch core.

Advantages

The PM45 provides consistent print registration (up to ±0.5 mm) for accurate barcodes, text and images on small components and medical labels. Its all‑metal print mechanism and tool-free replaceable parts reduce downtime and maintenance. The printer supports multiple print languages and network protocols for easier integration into cloud or local systems, and includes Smart Parse software for on‑label adjustments without backend changes. Remote monitoring and diagnostics are available via Honeywell Operational Intelligence.

Suitable for

• High-volume label printing in manufacturing
• Warehouse and distribution center barcode and shipping labels
• Food & beverage and pharmaceutical track-and-trace labels
• Small electronic component and medical device labeling

Key specifications

• Print technology: Thermal transfer
• Maximum resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/sec (approx. 14 ips)
• Maximum print width: 108 mm
• Display: LCD
• Connectivity: Wired Ethernet LAN; optional WWAN and other interfaces
• Product colour: Black
• Weight: 12.6 kg
• Media support: Ribbons (including 1-inch core) and various label stocks

How to use

Install the PM45 on a stable surface and connect it to power and your network according to the user manual. Load label stock and thermal transfer ribbon following the media guides; the printer supports 1‑inch core ribbons. Configure printer language and network settings via the front LCD or the management interface. Use Smart Parse to adjust label elements such as object position, size and font without changing backend systems. For large deployments, register the device with Honeywell Operational Intelligence for remote monitoring and firmware management.

Recommendations

Use certified label media and thermal transfer ribbons that match the printer’s specifications to maintain print quality and reduce head wear. Regularly clean the printhead and perform tool-free maintenance checks to minimise downtime. When integrating into enterprise systems, verify supported print languages and network protocols to ensure compatibility.
