Labelprinter Toshiba B-EX4T1-TS12-QM-R

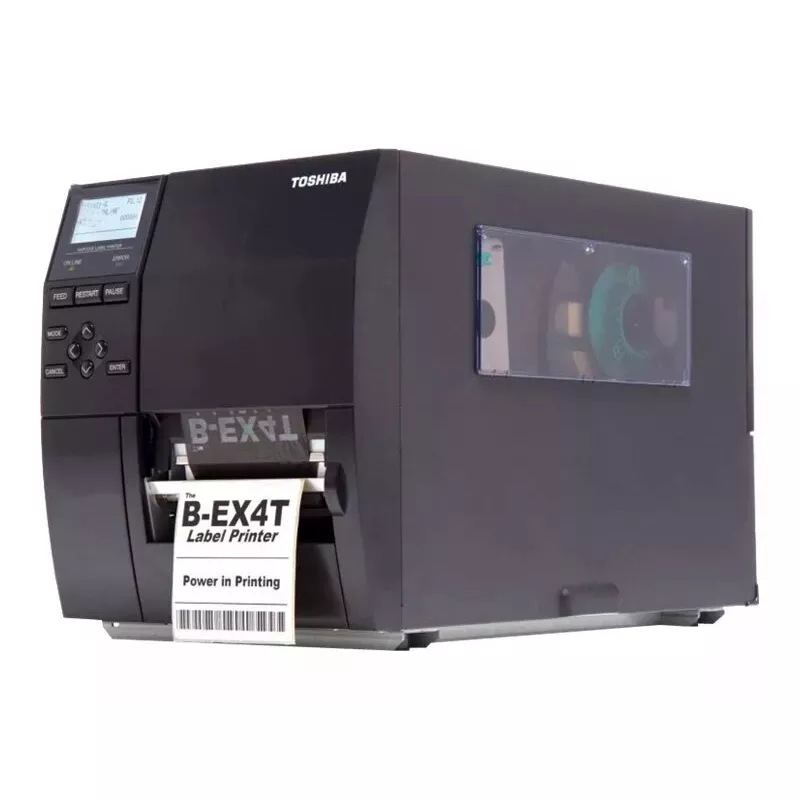

The Toshiba B-EX4T1-TS12-QM-R is an industrial label printer that combines direct thermal and thermal transfer printing technologies. Designed from six decades of Auto-ID expertise and customer feedback, it offers enhanced performance, improved serviceability and energy-efficient operation while maintaining the proven functionality of the B-SX series. The printer supports labels 30–120 mm wide, has a maximum print width of 104 mm, a resolution of 305 x 305 DPI and a maximum print speed of 335 mm/sec.

Advantages

The B-EX4T1 delivers reliable, robust printing with premium capabilities included as standard, which can lower initial equipment costs and extend the useful life of the investment. It features a clear LCD for operator interaction, wired Ethernet LAN connectivity for stable network integration, and a compact industrial design in black that fits into production and POS environments. Serviceability improvements reduce downtime and simplify maintenance tasks.

Suitable for

• High-volume label printing in manufacturing and logistics
• Warehouse and inventory labeling
• Retail POS and back-office labeling
• Shipping and packing operations

Key specifications

• Print technology: Direct thermal / thermal transfer
• Maximum resolution: 305 x 305 DPI
• Maximum printing width: 104 mm
• Label width supported: 30–120 mm
• Print speed: up to 335 mm/sec
• Display: LCD
• Connectivity: Ethernet LAN
• Weight: 17 kg
• Colour: Black

How to use

Install the Toshiba B-EX4T1 on a stable surface and connect it to power and your network via Ethernet. Load the printer with the appropriate ribbon and label roll according to the user manual, set label size and print parameters using the LCD menu or supplied software, then send print jobs from your host system. Choose direct thermal mode for heat-sensitive labels or thermal transfer mode when using ribbons for durable prints.

Recommendations

For consistent print quality and longer device life, use ribbons and label media that meet Toshiba specifications, perform regular cleaning of the printhead and transport path, and schedule preventive maintenance based on print volume and operating conditions.
