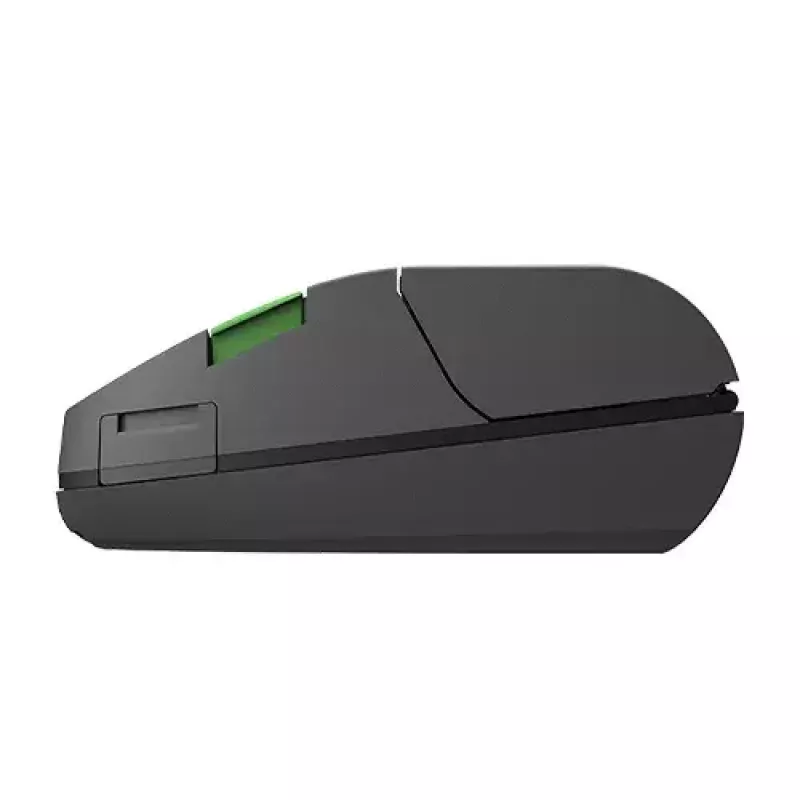

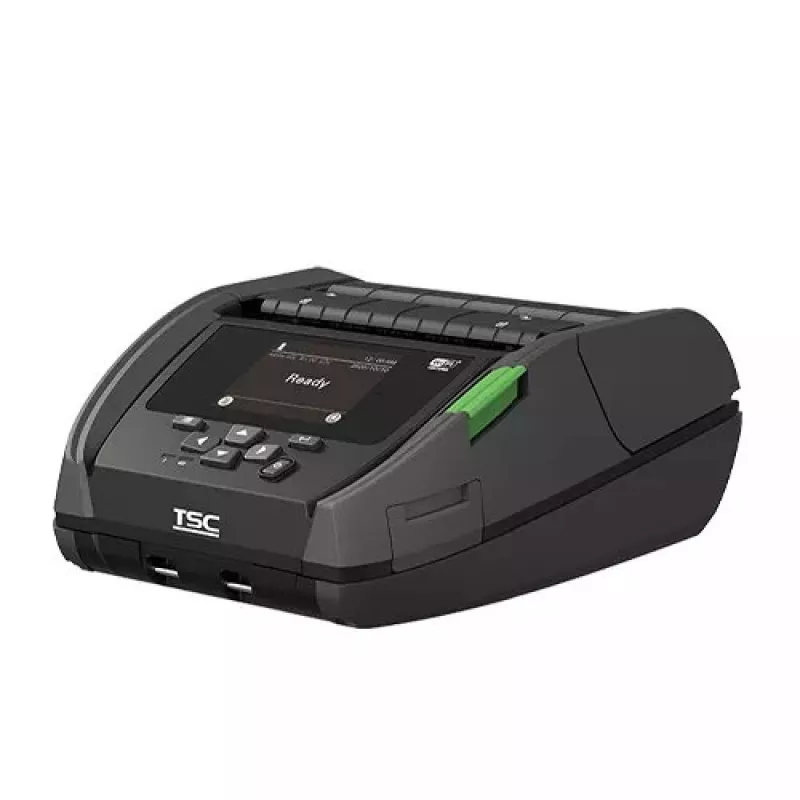

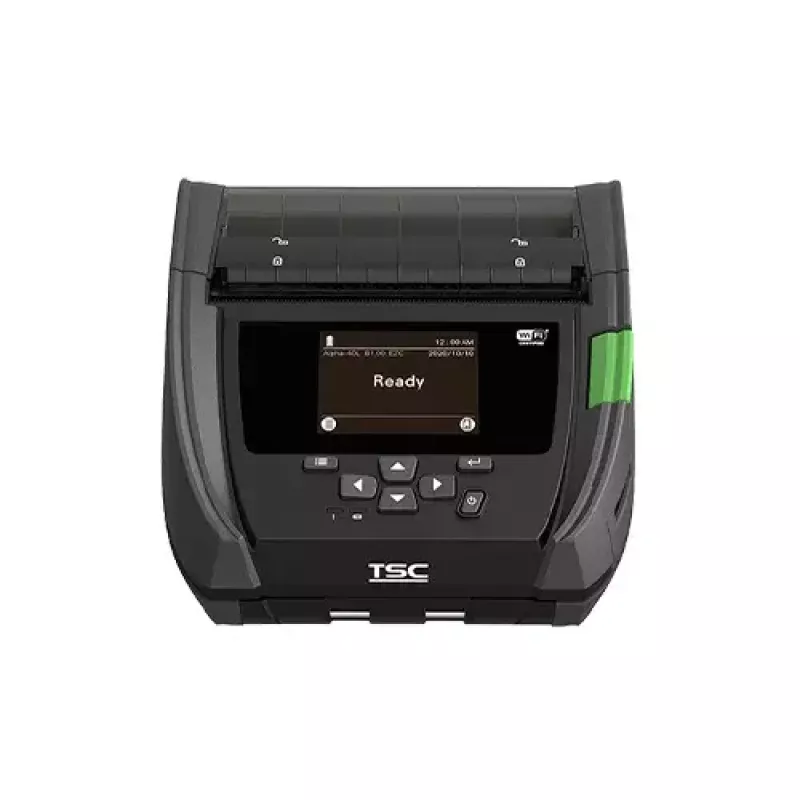

Labelprinter TSC Alpha-40L

The TSC Alpha-40L is a direct thermal mobile label printer designed for on-the-go labeling in logistics and retail environments. It combines a rugged build with reliable performance, supports media widths from 50.8 to 112 mm and delivers a maximum print resolution of 203 x 203 DPI at speeds up to 127 mm/s. The printer offers wired and wireless connectivity including Wi‑Fi and Bluetooth, and is powered by a Lithium‑Ion battery for portable operation.

Advantages

The Alpha-40L provides consistent direct thermal printing with a compact, durable chassis suitable for demanding field use. A full range of mobile printing accessories is available, including a linerless printing option that reduces material waste and operating costs. Remote printer management software enables monitoring of device health and performance to minimise downtime and simplify maintenance.

Suitable for

• Warehouse and logistics labeling on the move
• Retail price tags and shelf labels
• Field service and delivery documentation
• Mobile ticketing and receipts

Key specifications

• Print technology: Direct thermal
• Maximum resolution: 203 x 203 DPI
• Print speed: up to 127 mm/sec
• Maximum printing width: 104 mm
• Supported media widths: 50.8–112 mm
• Display: LCD
• Connectivity: Wired, Wi‑Fi, Bluetooth
• Power: Lithium‑Ion battery
• Weight: 0.985 kg
• Colours: Grey, Black

How to use

Load the appropriate direct thermal label media (50.8–112 mm wide) into the printer according to the user manual, power on the device, and connect via wired interface or pair using Wi‑Fi or Bluetooth. Use the LCD to configure basic settings and check status. For networked deployments, install the remote printer management software to monitor firmware, battery status and print job history. Replace the Lithium‑Ion battery or media roll as needed following safety instructions.

Recommendations

Use linerless media where supported to reduce adhesive liner waste and lower supply costs; keep firmware updated and use the remote management tools to track battery health and device status for continuous operation in logistics environments.
