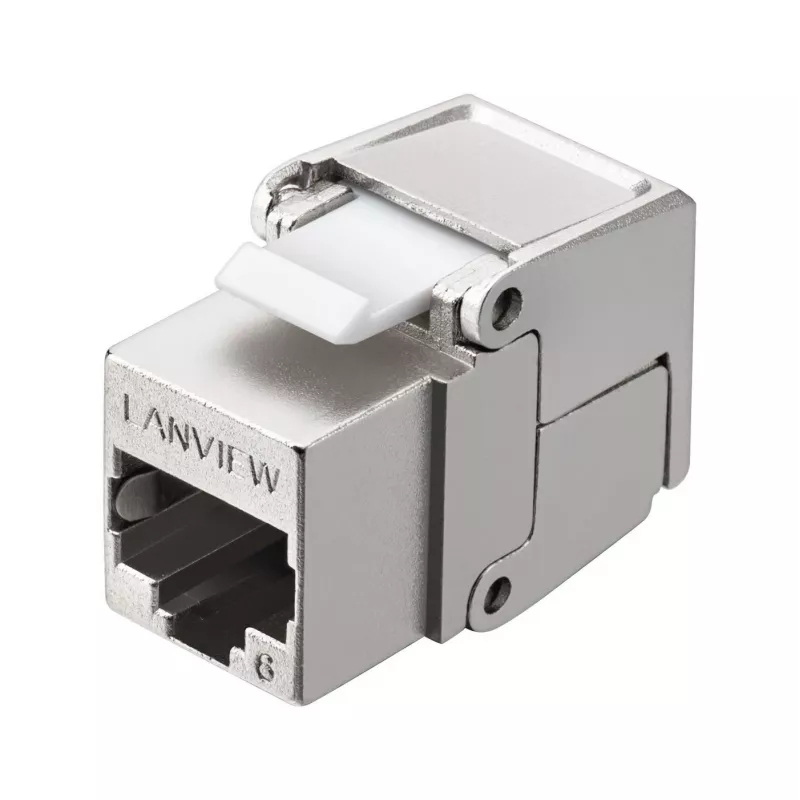

Lanview LVN128082 keystone-module

The Lanview LVN128082 keystone module is a foiled Cat6 keystone jack designed for patch panels and other structured cabling installations. It features a flat construction, metallic finish and an integrated RJ-45 connector, providing a compact, industry-standard interface for Ethernet cabling. The module is lightweight (20.5 g) and sold individually, suitable for use where a reliable Cat6 connection is required.

Advantages

The foiled design improves electromagnetic interference (EMI) protection and the flat construction allows installation in standard depth back boxes while accommodating multiple cable entry directions. Its compact size supports both flush and angled shutter mounting options on keystone-compatible outlets and patch panels, offering flexible placement without altering cabling performance.

Suitable for

• Patch panels in server rooms and telecom racks
• Wall outlets and keystone faceplates
• Structured Cat6 cabling installations
• Home and small office Ethernet networks

Key specifications

• Brand: Lanview
• Model / MPN: LVN128082
• Type: Foiled Cat6 keystone jack (keystone module)
• Connector: RJ-45
• Construction: Flat
• Color: Metallic
• Unit weight: 20.5 g; Package weight: 23.48 g
• Sold as: Single unit

How to use

Terminate Cat6 cable conductors to the module following the T568A or T568B wiring scheme, insert the keystone module into a compatible keystone opening in a patch panel or faceplate, and secure any shutters or mounting clips as required. Ensure proper cable strain relief and test the connection with a network cable tester after installation to verify continuity and performance.

Recommendations

For best results, use the Lanview LVN128082 with shielded Cat6 cabling in environments with potential electromagnetic interference and install in standard depth back boxes to take advantage of the multiple cable entry directions. Verify wiring standard consistency across the network to avoid connectivity issues.
