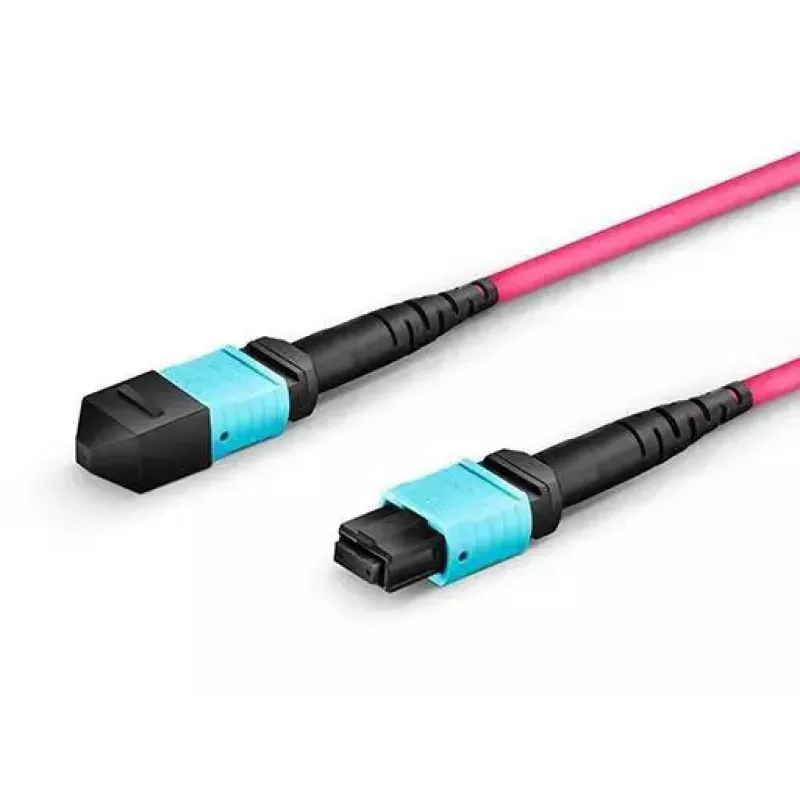

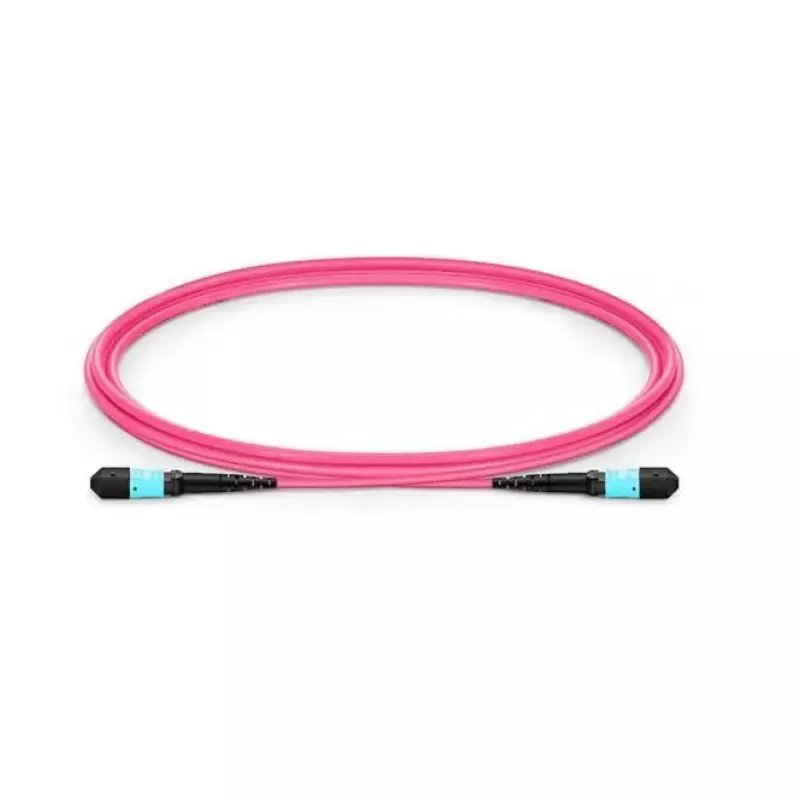

Lanview LVO230403-MTP InfiniBand/glasvezelkabel 3 m violet

The Lanview LVO230403-MTP InfiniBand fibre optic cable is a 3 m OM4 multimode patch cord with MTP connectors on both ends and a 50/125 µm core/cladding. Designed for high-speed data transmission, this cable supports full-duplex links and is suitable for use in data centers and network environments that require 10G, 40G or 100G Ethernet connectivity.

Advantages

This OM4 multimode cable provides improved bandwidth and longer reach for short-range high-speed applications compared with lower-grade multimode fibers. The MTP terminations enable high-density connections and compatibility with QSFP+, SFP+ and other transceivers used in 10G/40G/100G network systems. The cable uses LSZH jacket material and is manufactured to industry standards such as Telcordia, EIA/TIA and IEC for reliable performance.

Suitable for

• Data centre trunking and rack-to-rack links
• Connections between QSFP+/QSFP28 and MTP-enabled panels or transceivers
• 10G SR, 40G SR4/BiDi and 100G short-reach Ethernet applications
• InfiniBand high-speed interconnects and server interconnects

Key specifications

• Length: 3 m
• Fiber type: OM4 multimode, 50/125 µm
• Connector type: MTP — both ends
• Jacket: LSZH
• Standards: Telcordia, EIA/TIA, IEC compliant

How to use

Install the 3 m MTP patch cord between MTP-equipped transceivers, breakout panels or MTP cassettes according to your network design. Ensure connectors are clean and aligned with the correct polarity before insertion to maintain full-duplex signal paths. Route the cable to avoid tight bends and mechanical strain, and secure it within cable management systems for reliable operation.

Recommendations

For optimal performance in 10G/40G/100G deployments, use this OM4 MTP cable with compatible transceivers and follow connector cleaning and handling best practices. Avoid exceeding the minimum bend radius and verify polarity and polarity adapters if converting between MTP and MPO or LC systems.
