Lanview LVO231205-FLEX InfiniBand/glasvezelkabel 5 m LC LC/LC aquakleur

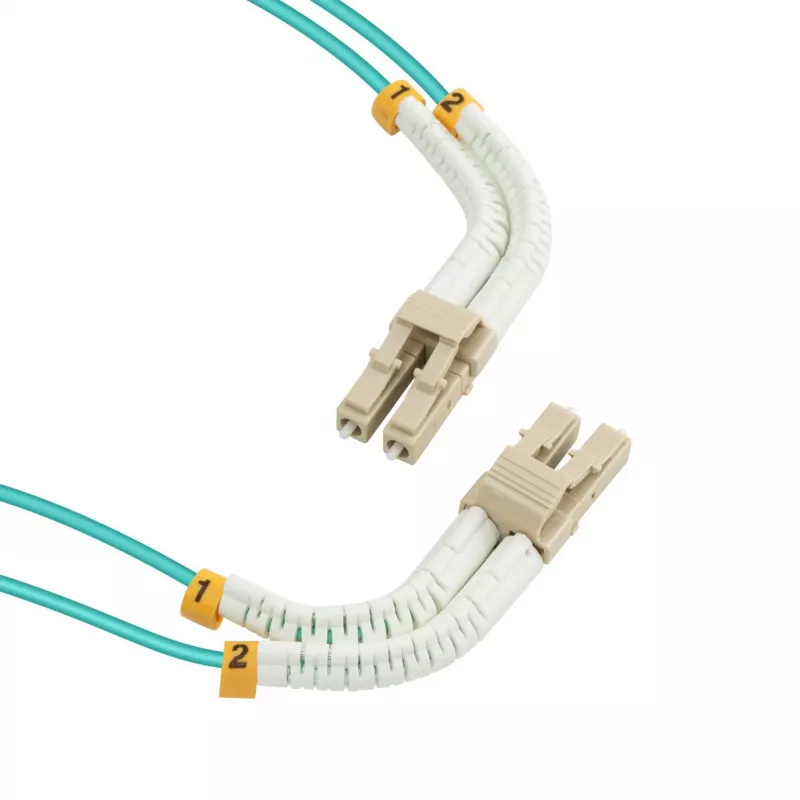

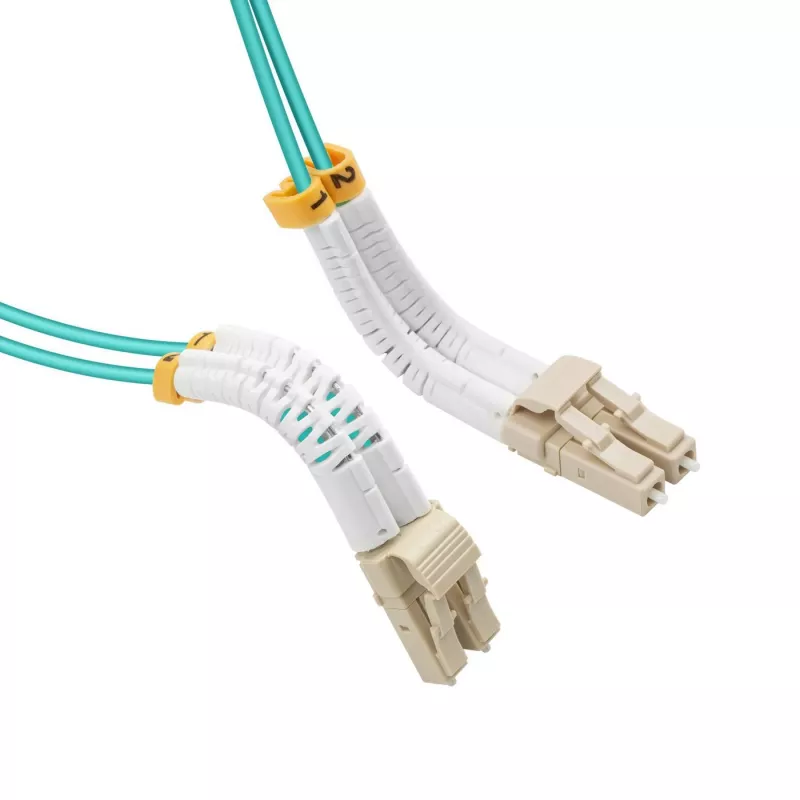

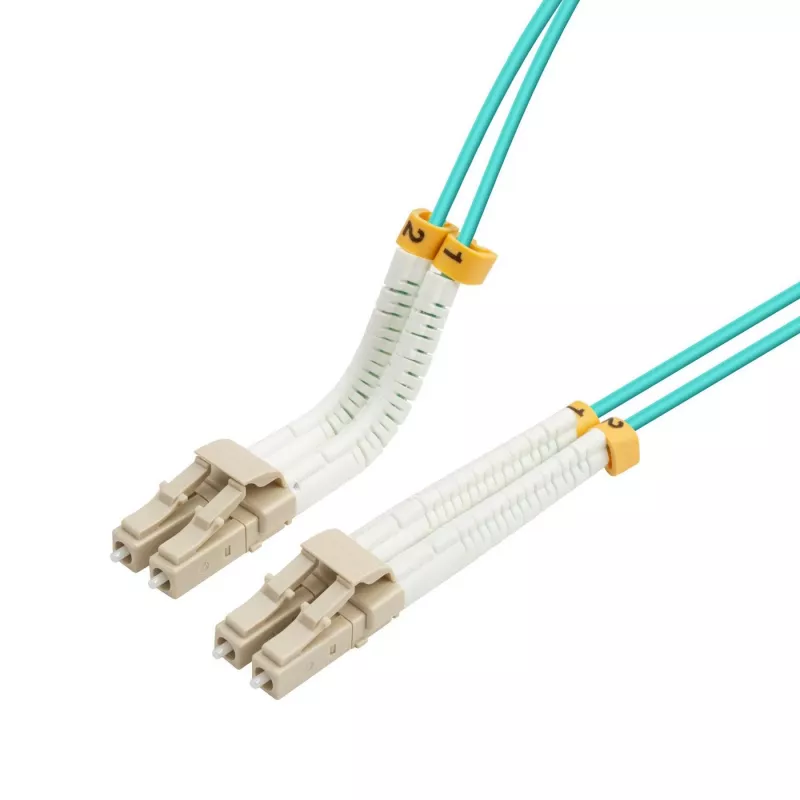

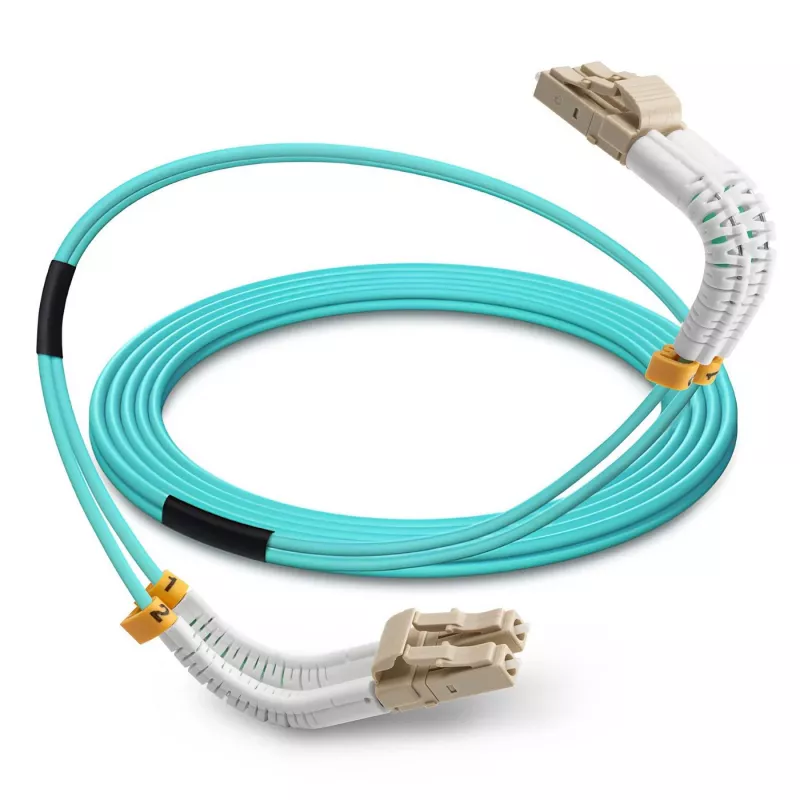

The Lanview Bendable series LVO231205-FLEX is a 5 m LC–LC fibre optic cable using OM3 multimode fibre with a 50 µm core. The cable features a flexible, bendable boot formed around a single stainless-steel wire that can be manually adjusted to hold any angle from straight to 90° while preserving connector alignment and signal integrity. The aqua-coloured cable is intended for high-speed full-duplex networking where space is restricted and precise connector positioning is required.

Advantages

The bendable boot allows easy, tool-free adjustment of connector direction while an internal stainless-steel wire maintains the selected angle. The design permits quick repositioning or straightening for connector disconnection and supports reliable OM3 multimode performance for fast data transmission. Its LC–LC configuration and 5 m length make it suitable for common rack and patching setups.

Suitable for

• High-density patch panels and server racks
• Constrained or narrow cable pathways
• Data centre and telecom networking where precise connector alignment is needed
• Full-duplex multimode OM3 links requiring LC–LC connections

Key specifications

• Model: Lanview LVO231205-FLEX
• Connector type: LC — LC
• Fibre type: OM3 multimode, 50 µm core
• Length: 5 m
• Colour: Aqua
• Weight: 0.1 kg
• MPN: LVO231205-FLEX
• EAN: 5715063505892

How to use

Align the LC connectors with the respective ports and insert until they click. Manually bend the boot around the internal stainless-steel wire to set the desired angle and direction, ensuring the cable routing avoids sharp bends beyond the boot’s adjustable range. To disconnect, straighten the boot and gently withdraw the connector from the port.

Recommendations

Use the Lanview LVO231205-FLEX in managed cable paths and avoid repeated extreme flexing at the connector boot to maintain long-term mechanical stability and optical performance.
