Lanview RWP16U45BL-D rackkast 16HE wandmontage rack zwart

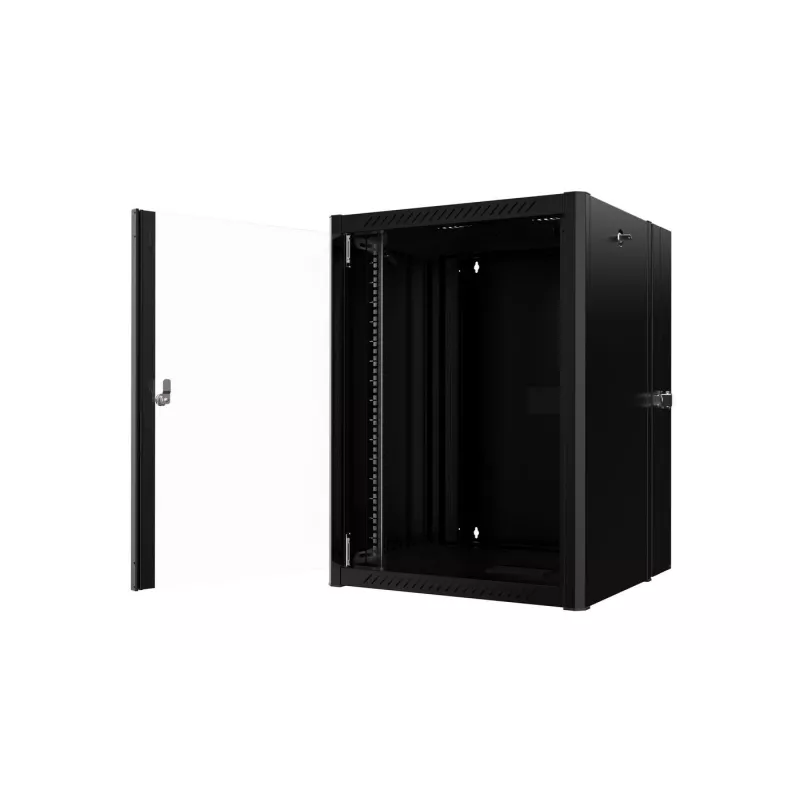

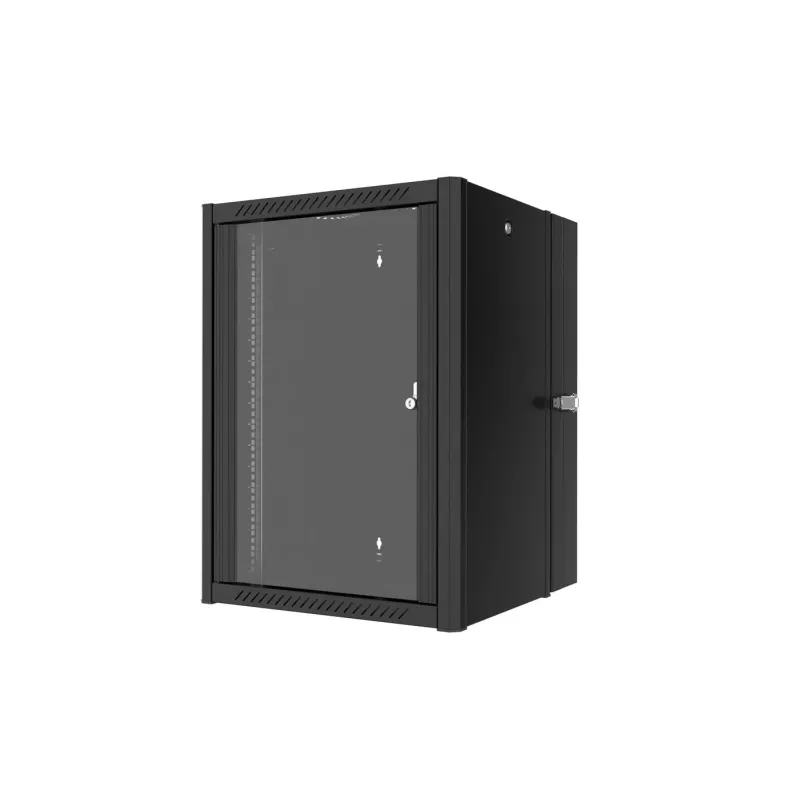

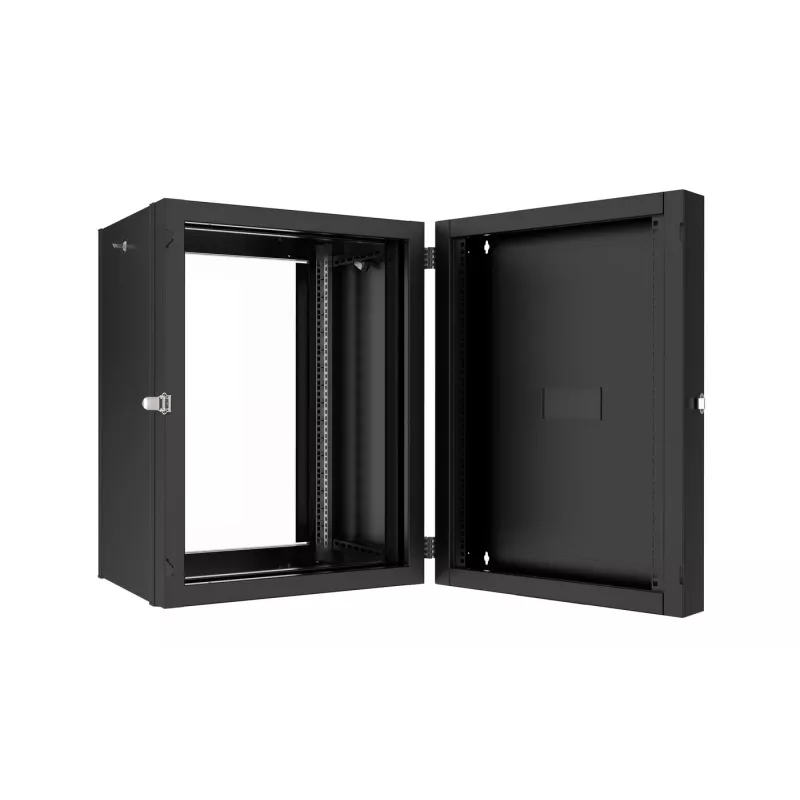

The Lanview RWP16U45BL-D is a 16U wall-mounted network rack with IP20 protection, designed to organize and secure 19" equipment in limited spaces. The cabinet measures 600 x 600 x 817 mm (WxDxH) and includes a double wall-mount section sized 600 x 150 x 809 mm for additional 19"-compatible modules. A tempered 4 mm antistatic glass door with an extruded aluminium frame provides visibility and mechanical resistance while coloured side strips add a distinct appearance. The cabinet is supplied as two parts: RWP12U45BL and RWMD12UBL.

Advantages

The cabinet supports installation of patch panels, cable harnesses and other 19" devices and features adjustable device installation rails for correct depth positioning of equipment up to roughly 70 mm depth within the double wall-mount section. Multiple cable inlet points (upper, lower and rear doors) and a movable rubber-edged cable entry module with sliding compression (0–50 mm) protect against dust ingress and secure incoming cables. Detachable side panels allow access from front and sides in wall-mounted setups and from all sides when free standing. Upper ventilation holes accept an optional 2-fan ventilation module for active cooling, or permit passive airflow if no fan is installed.

Suitable for

• Mounting 19" network switches, patch panels and routers
• Organising cable harnesses and structured cabling in small technical rooms
• Wall-mounted installations in offices, server rooms or comms closets

Key specifications

• Rack capacity: 16U
• Protection rating: IP20
• External dimensions (WxDxH): 600 x 600 x 817 mm
• Double wall-mount section (WxDxH): 600 x 150 x 809 mm
• Door: 4 mm tempered antistatic glass with extruded aluminium frame
• Weight: 48 kg
• Colour: Black

How to use

Mount the cabinet securely to a load-bearing wall using appropriate fixings for the wall material. Install or adjust the provided device installation rails to match the depth of your 19" equipment, then mount devices according to standard 19" conventions. Route cables through the upper, lower or rear inlet openings and use the movable rubber-edged entry module to seal and compress cable bundles. If required, attach the optional 2-fan ventilation module to the upper chassis opening to enable active cooling; otherwise rely on passive ventilation through the upper holes.

Recommendations

Install devices that conform to 19" mounting standards and do not exceed the supported depth in the double wall-mount section. Use appropriate wall anchors for the cabinet weight (48 kg plus equipment) and maintain sufficient airflow by keeping ventilation openings clear; fit the optional fan module when equipment generates significant heat.
