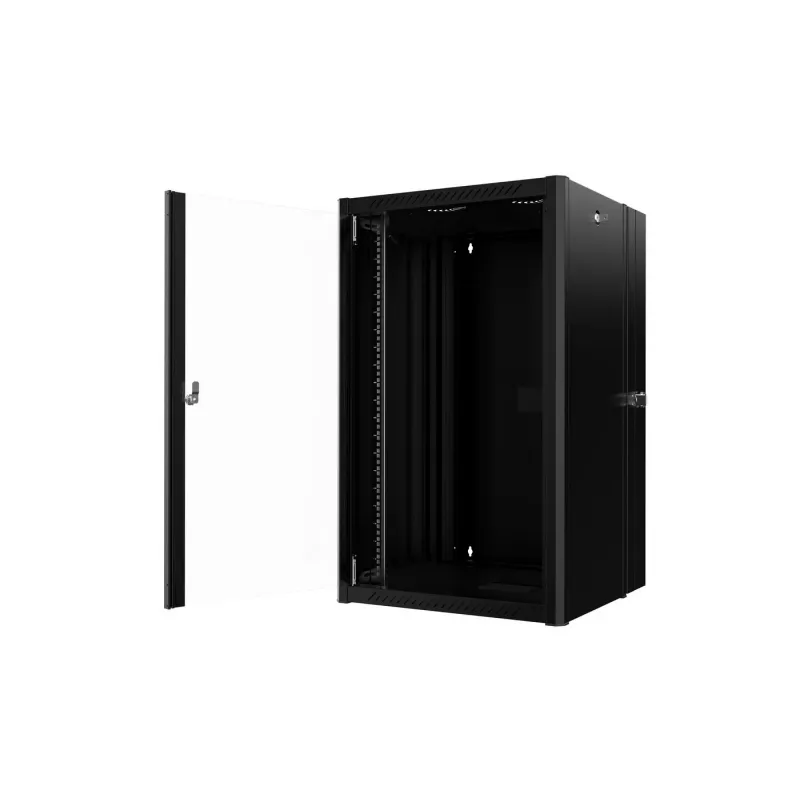

Lanview RWP20U45BL-D rackkast 20U wandmontage rack zwart

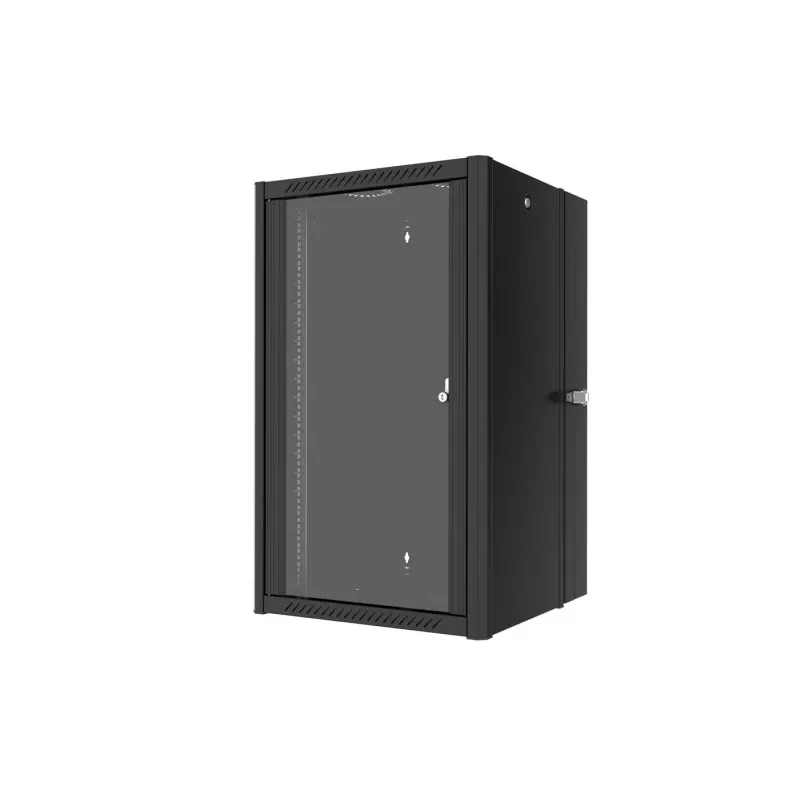

The Lanview RWP20U45BL-D is a wall-mounted 20U network rack with IP20 protection, measuring 600 x 600 x 995 mm and weighing 54 kg. The cabinet includes a double wall-mount section for additional 19" compatible equipment, a front glass door with extruded aluminium frame and coloured side strips, removable side panels for easy access, and multiple cable entry points for neat cable management.

Advantages

This wall mounted rack provides a compact 20U installation with IP20 protection and a tempered, 4 mm antistatic glass front door with high fracture resistance. The double wall-mount section supports installation of 19" devices up to 70 mm deep and offers a rear cable inlet for clean routing of harnesses and patch panels. Removable side panels and adjustable device installation rails simplify access and depth configuration. Top ventilation openings accept an optional 2-fan module for active cooling or allow passive air circulation if no fan is installed. Rubber-edged movable cable entry module (0–50 mm) with sliding compression reduces dust ingress and secures incoming cables.

Suitable for

• Wall-mounted network equipment installations in offices and server rooms
• Housing patch panels, cable harnesses and small switches
• Environments requiring a 19" compatible 20U rack with IP20 protection
• Installations where front visibility and tempered glass door are needed

Key specifications

• Capacity: 20U
• Protection rating: IP20
• Dimensions (W x D x H): 600 x 600 x 995 mm

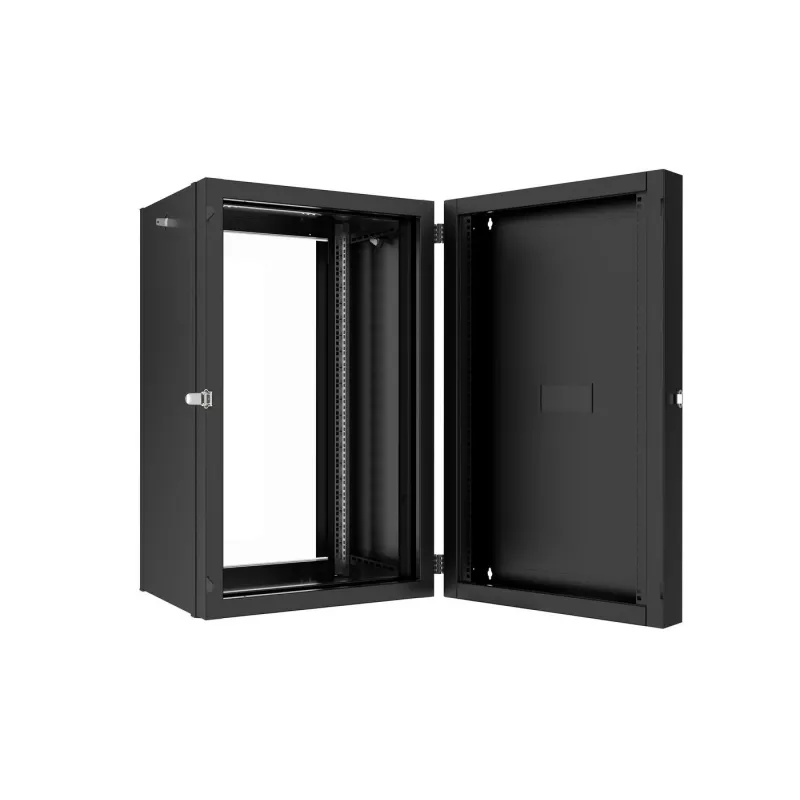

• Double wall-mount section dimensions: 600 x 150 x 986 mm
• Front door: 4 mm antistatic tempered glass with extruded aluminium frame
• Supported device depth in wall-mount section: up to 70 mm
• Cable entry: top, bottom and rear 145 x 70 mm holes; rubber-edged movable module 0–50 mm
• Ventilation: top openings for optional 2-fan module (active) or passive ventilation
• Weight: 54 kg
• Colour: Black

How to use

Mount the cabinet securely to a suitable wall structure following local mounting guidelines and load limits. Install the supplied device installation rails and adjust their depth to accommodate 19" equipment up to 70 mm deep inside the double wall-mount section. Route cables through the top, bottom or rear 145 x 70 mm inlet holes and use the rubber-edged movable cable entry module to compress and protect the incoming cables while minimising dust ingress. If active cooling is needed, attach the optional 2-fan ventilation module to the top ventilation opening; otherwise ensure sufficient passive airflow through the top vents.

Recommendations

For safe and reliable operation, use the rack within its 20U capacity and IP20 rating, mount on a load-bearing wall, secure heavy equipment close to the cabinet centre, maintain clearance for ventilation, and install cable management and earthing according to applicable standards. Use only compatible 19" devices and the supplied rails for proper support.
