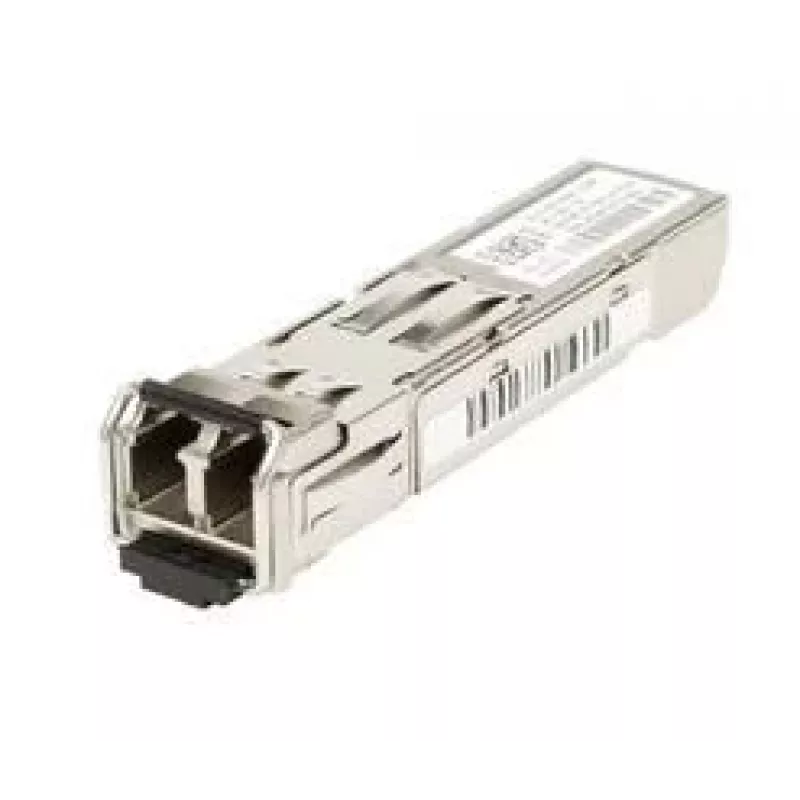

LANVIEW SFP 1310nm SMF 20 km LC transceivermodule

This SFP transceiver module delivers Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 20 km with a 1310 nm FP laser and LC duplex connector. Engineered for reliable performance in enterprise and carrier networks, it ensures seamless integration with standard SFP ports.

Advantages

Hot-swappable design allows for easy installation and replacement without network downtime. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of key parameters such as optical power, temperature, and voltage, enabling proactive maintenance. Low power consumption of under 1 W reduces energy costs and heat generation, contributing to a greener network infrastructure. Compliance with IEEE 802.3z, RoHS, FCC, and CE ensures broad compatibility and environmental safety.

Suitable for

• Gigabit Ethernet backbone links in enterprise campus networks
• Metro Ethernet and service provider access networks
• Data center interconnects requiring long-reach single-mode fiber
• Network upgrades from multimode to single-mode infrastructure

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Max Transmission Distance: 20 km
• Connector Type: LC Duplex
• Interface Standard: 1000BASE-LX
• Digital Diagnostic Monitoring (DDM): Yes
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3z, RoHS, FCC, CE

Recommendations

For optimal performance, use with OS1 or OS2 single-mode fiber cables. Ensure the SFP port supports 1000BASE-LX and is configured for full-duplex operation. Keep the transceiver within the specified operating temperature range to maintain reliability.
