Wandmontagerack LOGON RWM06U45BL 6U zwart sleutelslot kabelmanagement

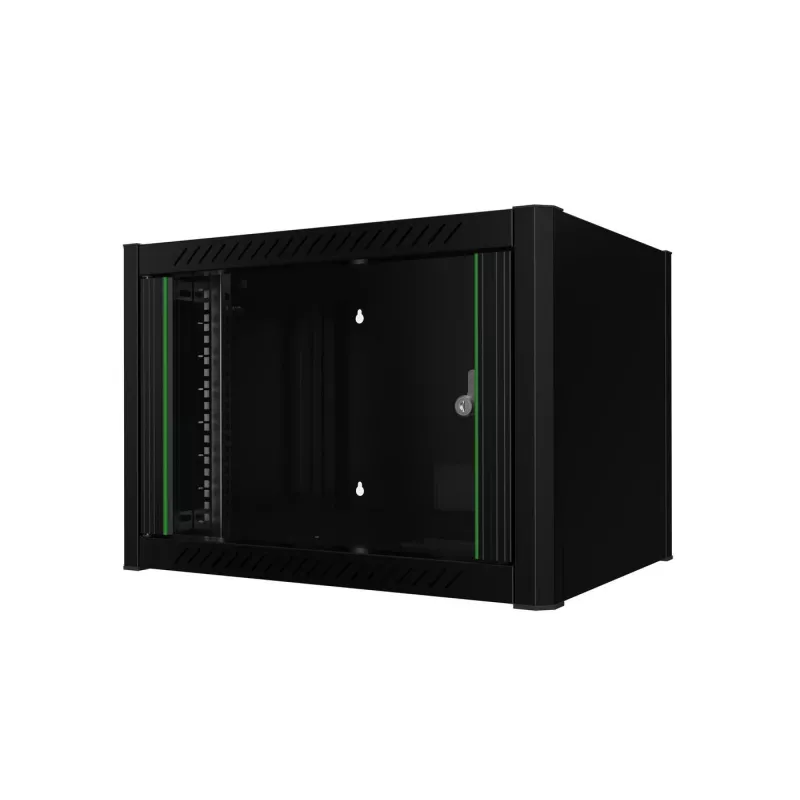

The LOGON RWM06U45BL is a 6U wall-mounted rack designed for secure storage and organization of network and telecom equipment. It has a black extruded aluminium frame with 4 mm tempered smoothed glass side strips, antistatic treatment, and high fracture resistance. The cabinet is supplied with one set of mounting rails and two device installation rails, and includes cable inlets and a rubber-edged adjustable cable entry module for neat and protected cable routing.

Advantages

The cabinet provides secure access with a key lock and supports both passive and optional active ventilation by fitting up to two fans in the top ventilation module. Fixed side doors allow front access in wall-mounted installations and both front and rear access in free-standing configurations. Cable management features include 145 × 70 mm inlet holes at the top, bottom and rear, and a movable rubber-edged cable entry module with sliding compression (0–50 mm) to compress and protect incoming cables and reduce dust ingress.

Suitable for

• Mounting network switches, patch panels and small servers in office or home environments
• Protecting telecommunications and networking equipment in wall-mounted installations
• Environments requiring tidy cable routing and basic physical security (key lock)

Key specifications

• Rack capacity: 6U
• 19" compatible
• Height: 380 mm
• Depth: 450 mm
• Width: 600 mm
• Product colour: Black
• Side panels: 4 mm antistatic tempered smoothed glass with coloured strips
• Frame material: Extruded aluminium
• Device installation rails: 1 set plus 2 mounted rails (depth adjustable)
• Cable inlets: 145 × 70 mm (top, bottom, rear)
• Cable entry module: Rubber-edged, movable 0–50 mm with sliding compression

How to use

Wall-mount the rack using appropriate anchors for the supporting surface, ensuring the cabinet is level and securely fixed. Install network devices on the supplied device installation rails and adjust rail depth as needed. Route cables through the 145 × 70 mm inlet holes or through the rubber-edged cable entry module; compress cables by sliding the compression element to obtain a snug fit and dust reduction. If active ventilation is required, fit the optional 2-fan ventilation module into the top ventilation hole; otherwise leave the vents for passive airflow.

Recommendations

For reliable operation, mount the cabinet on a solid wall or use the optional feet/casters for free-standing installations, avoid overloading beyond the 6U capacity, and use compatible 19" mounting hardware. Regularly check the cable entry compression and ventilation openings for dust accumulation and clean as needed.
