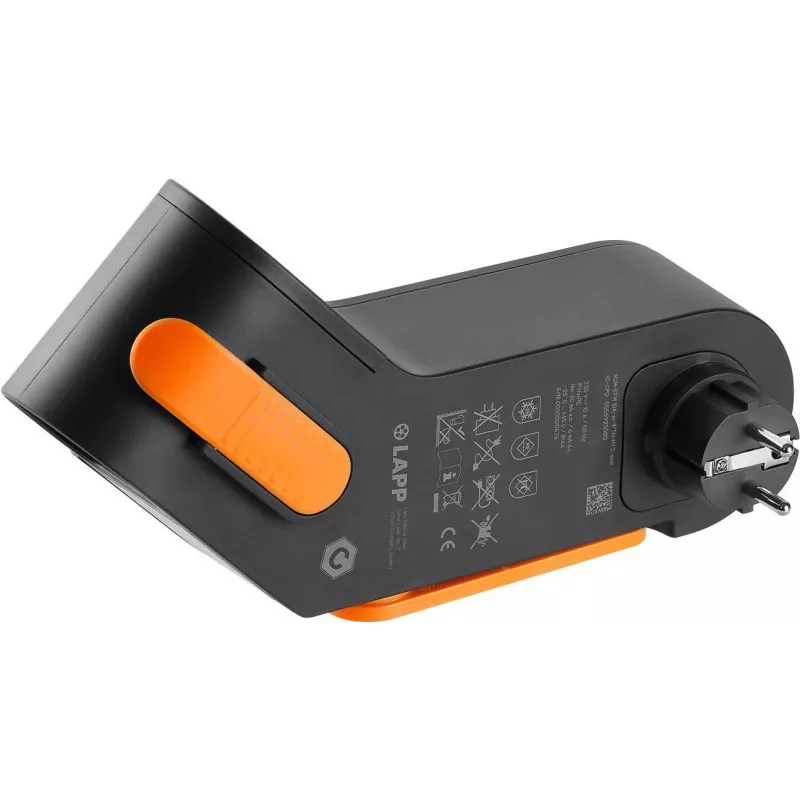

LAPP MOBILITY DOCK eMobility-laadstation Type 2 modus 2 10 A 2,3 kW 5555925000

Portable EV charging station with Type 2 connector, delivering 2.3 kW from any standard household socket. The MOBILITY DOCK combines robust IP67-rated electronics with integrated safety monitoring for reliable charging on the go.

Advantages

Charge your electric vehicle safely from any Schuko socket. The compact in-cable control box (IC-CPD) monitors temperature, current, and voltage, automatically interrupting charging if anomalies are detected. Its IP67 rating ensures protection against dust and temporary immersion, making it suitable for outdoor use. The 5-meter cable offers flexibility, while the high-quality plastic housing withstands daily handling.

Suitable for

• Electric vehicles with Type 2 charging inlet
• Private users needing a portable charging solution
• Charging at home, at work, or during travel
• Outdoor use thanks to IP67 protection

Key specifications

• Charging power: 2.3 kW
• Charging current: 10 A
• Charging mode: Mode 2 (IC-CPD)
• Vehicle connector: Type 2 (IEC 62196-2)
• Grid connector: Schuko plug (CEE 7/7)
• Phases: 1-phase
• Input voltage: 230 V AC, 50 Hz
• Cable length: 5 m
• Ingress protection: IP67
• Operating temperature: -25 °C to +45 °C
• Safety features: RCD Type A with 6 mA DC fault detection, overcurrent, overvoltage, undervoltage, temperature monitoring
• Standards: IEC 62752, CE
• Cable type: H07BQ-F

Recommendations

For safe and convenient charging of your electric vehicle wherever a standard socket is available, the LAPP MOBILITY DOCK is an excellent choice. Its robust design and comprehensive safety features provide peace of mind, while the 5-meter cable offers flexibility in parking situations.
