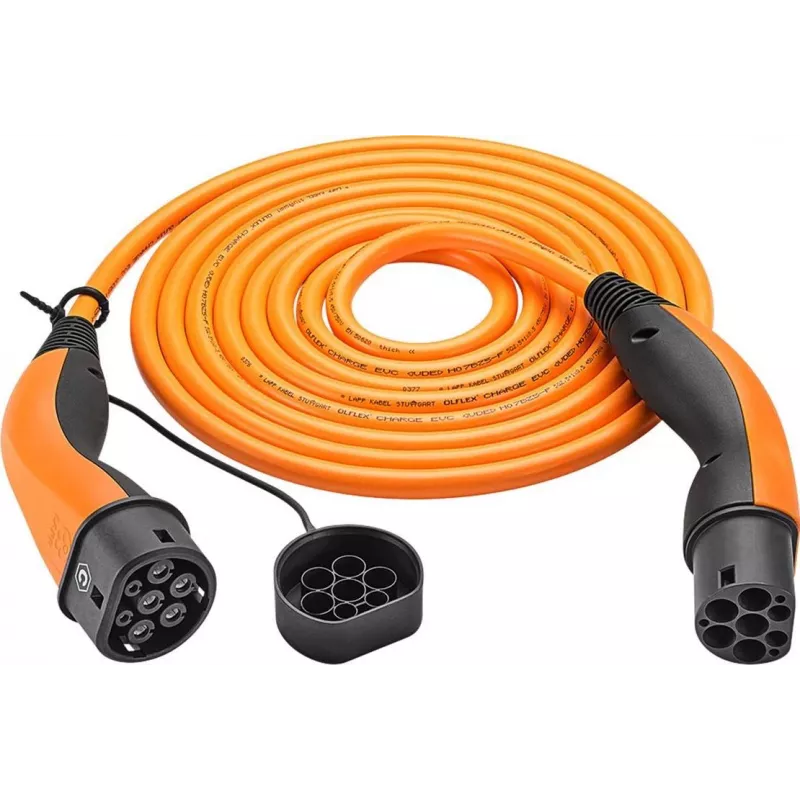

LAPP MOBILITY HELIX Type 2 laadkabel, tot 22 kW, 5 m, oranje (61798)

The LAPP MOBILITY HELIX Type 2 charging cable (model 61798) is a high-performance electric vehicle charging solution designed for both private and commercial use. With a maximum charging power of 22 kW and a length of 5 meters, this cable offers reliable and efficient charging for Type 2 compatible vehicles. The bright orange jacket ensures high visibility, reducing trip hazards and making it ideal for public and workplace charging stations.

Advantages

This charging cable supports 3-phase charging up to 22 kW (32 A) and is backward compatible with single-phase charging. The robust TPE-U jacket provides excellent UV, oil, and abrasion resistance, ensuring long-lasting performance even in harsh environments. The cable is flame retardant according to IEC 60332-1-2 and features IP44 protection when connected, with IP55 protection for unconnected connectors, offering reliable operation in various weather conditions.

Suitable for

• Electric vehicles with Type 2 (IEC 62196-2) charging inlet
• Public and private charging stations with Type 2 socket
• Workplace and fleet charging applications
• Outdoor and indoor charging installations

Key specifications

• Charging standard: IEC 62196-2 (Type 2)
• Max charging power: 22 kW (3-phase)
• Max current: 32 A
• Voltage rating: 400 V AC
• Cable length: 5 m
• Colour: Orange
• Protection class (connected): IP44
• Protection class (unconnected): IP55
• Operating temperature: -30°C to +50°C
• Cable cross-section: 5 x 6 mm² + 1 x 0.5 mm²
• Conductor material: Copper
• Jacket material: TPE-U
• Certifications: CE, TÜV

Recommendations

For optimal performance, pair this cable with a compatible Type 2 charging station. Ensure the charging station supports 22 kW output to take full advantage of the cable's capabilities. Store the cable in a clean, dry place when not in use to extend its lifespan.
