Laptop-dock LC-Power LC-HUB-C-MULTI-5 USB 3.2 Gen 1 Type-C bedraad

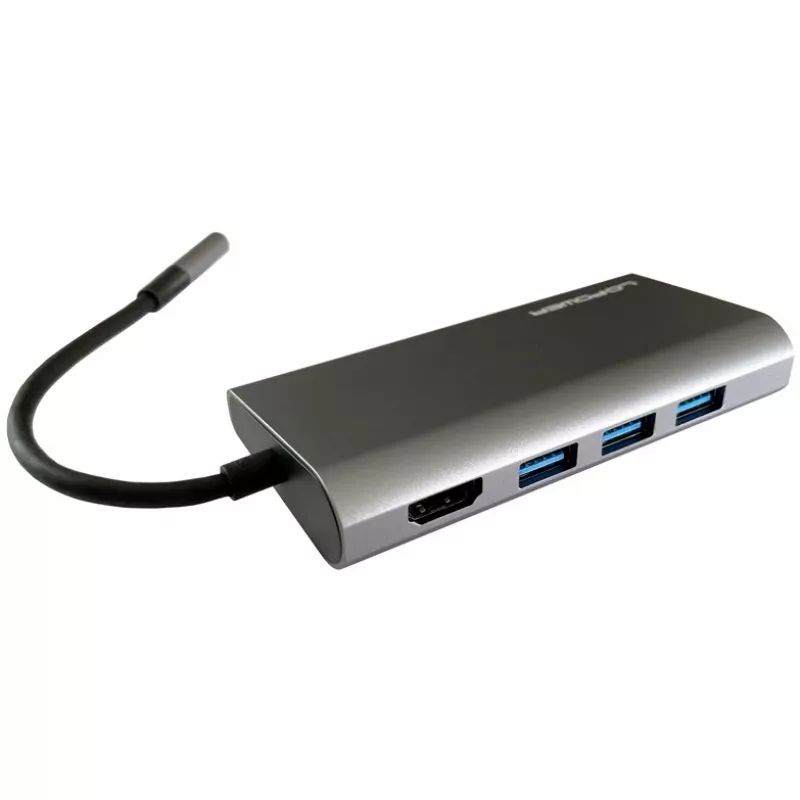

The LC-Power LC-HUB-C-MULTI-5 is an external wired laptop dock with a USB 3.2 Gen 1 Type-C host interface that expands a USB-C port into multiple useful connections. It provides three USB-A ports, an HDMI output, a Gigabit RJ45 Ethernet port, two memory card readers (SD and MicroSD) and a USB-C Power Delivery (PD) port supporting up to 100 W. The compact anthracite/black housing (52 × 103 × 18 mm) and lightweight design make it suitable for use with notebooks and other USB-C devices.

Advantages

This hub offers simultaneous data transfer, video output and wired network connectivity from a single USB-C connection, plus high-power charging via USB-C PD up to 100 W. It supports USB 3.2 Gen 1 data rates up to 5 Gbit/s and Gigabit Ethernet (10/100/1000 Mbit/s), while integrated SD and MicroSD card readers simplify file transfers from cameras and mobile devices. The small footprint and durable finish fit a variety of workspaces.

Suitable for

• Connecting USB-A peripherals such as keyboard, mouse and external drives
• Adding an external monitor via HDMI for presentations or extra screen space
• Reliable wired network access for notebooks without an Ethernet port
• Reading and transferring files from SD and MicroSD cards
• Providing up to 100 W charging to a laptop or other USB-C device

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C)
• USB data rate: up to 5 Gbit/s
• Power Delivery: up to 100 W via USB-C PD port
• Ethernet: RJ45, 10/100/1000 Mbit/s (Gigabit Ethernet)
• Video output: HDMI port

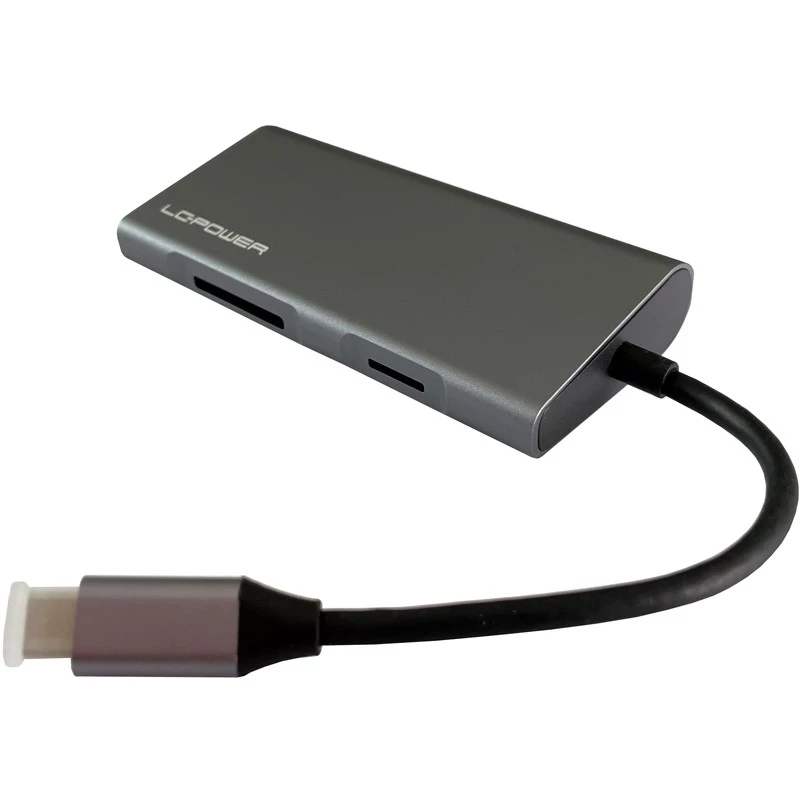

• Card readers: SD and MicroSD

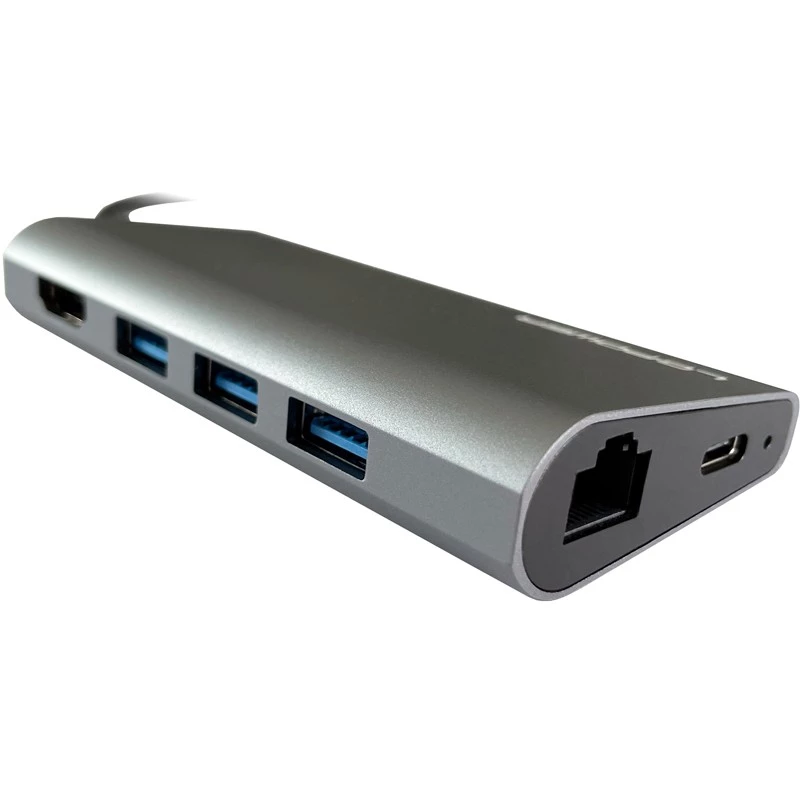

• Hub interfaces: 3 × USB-A (USB 3.2 Gen 1), USB-C, HDMI, RJ45
• Dimensions (W × D × H): 52 × 103 × 18 mm
• Weight: 0.09 kg
• Colour: Anthracite / Black

How to use

Connect the dock to a host device using the integrated USB-C cable. Plug USB-A peripherals, HDMI cable and Ethernet cable into the corresponding ports. Insert SD or MicroSD cards into the designated card slots to access or transfer files. If charging is required, connect a compatible USB-C power adapter to the PD port to provide up to 100 W to the connected laptop or device. Ensure the host device supports the required USB-C alt modes if video output is used.

Recommendations

Use a USB-C power adapter that supports USB Power Delivery and the appropriate wattage for your laptop. For stable HDMI video output, confirm your computer’s USB-C port supports DisplayPort Alt Mode or the equivalent video output mode. Avoid inserting or removing cards and cables while transferring data to prevent corruption.
